Physical and optical characteristics
Tourmaline: The Pleochroic Borosilicate Group of Color, Structure, and Charge
Tourmaline is a complex borosilicate mineral group known for ribbed trigonal prisms, unusually broad chemical variation, strong directional color, and pyroelectric and piezoelectric behavior. Its structure accepts many elements, which is why one mineral group can produce black schorl, brown dravite, green verdelite, blue indicolite, pink rubellite, colorless achroite, copper-bearing blue-green material, and multicolored zoning in a single crystal.
What Tourmaline Is
Tourmaline is a mineral group, not a single fixed composition. Its general formula is commonly written as XY3Z6(T6O18)(BO3)3V3W, where different crystallographic sites can host sodium, calcium, potassium, vacancies, lithium, magnesium, iron, manganese, aluminum, chromium, vanadium, copper, fluorine, oxygen, and hydroxyl.
This flexible framework explains tourmaline’s range. Black schorl, brown dravite, calcium-rich uvite, lithium-bearing elbaite, calcium-lithium liddicoatite, and vacancy-rich species can all share the same broad tourmaline architecture while displaying very different color, density, inclusions, and transparency.

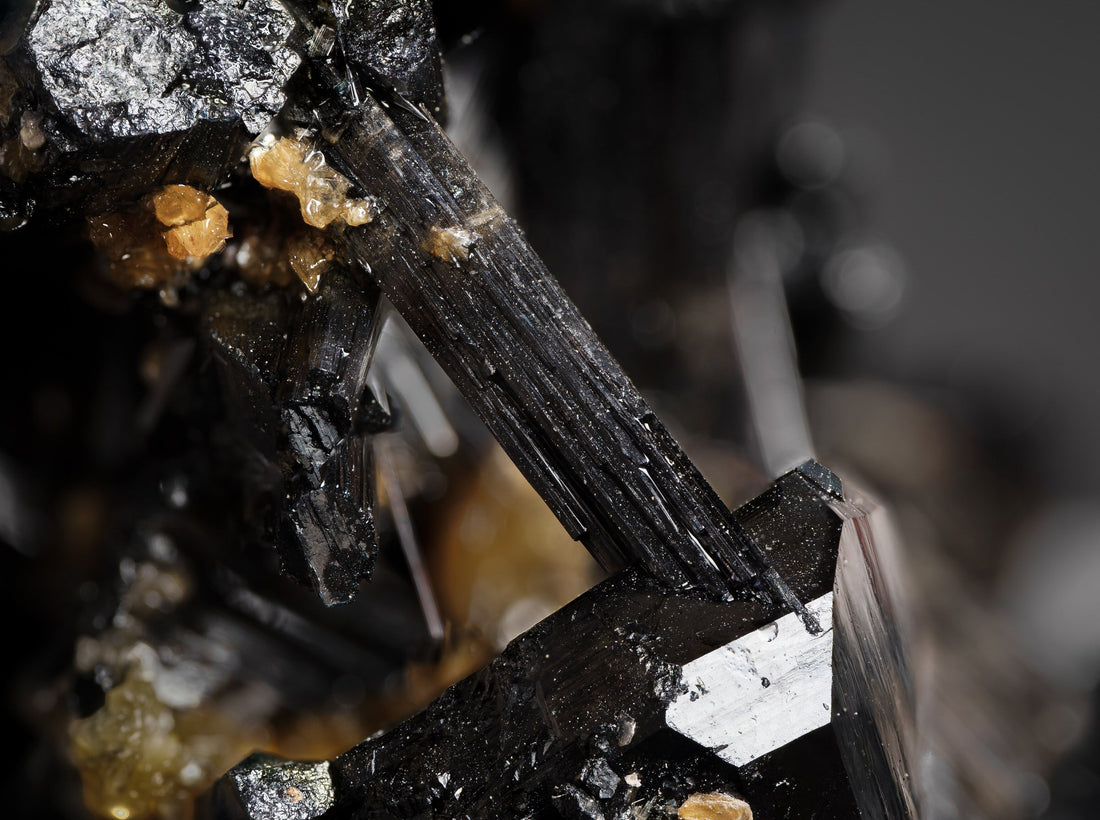

In hand specimen, tourmaline is usually recognized by its elongated ribbed prisms, rounded-triangular cross-sections, glassy luster, and strong directional color. In gem material, cut orientation is especially important because many stones look darker in one direction and lighter in another.
Trigonal and polar
Tourmaline crystallizes in the trigonal system and has a polar c-axis, a structural feature tied to its pyroelectric and piezoelectric behavior.
Many sites, many colors
Its structure accepts many cations and anions. Those substitutions control species identity and often influence body color.
Ribbed prisms
Longitudinal striations, triangular cross-sections, and wedge-like or multifaceted terminations are classic visual clues.
Physical and Optical Specifications
Because tourmaline is a group, values vary by species and chemistry. The ranges below describe the common working profile for most tourmalines encountered as gems or specimens.
| Property | Tourmaline group | Interpretive note |
|---|---|---|
| Chemical class | Complex borosilicate cyclosilicate | Tourmaline contains silicate rings and borate groups, with multiple structural sites open to substitution. |
| General formula | XY3Z6(T6O18)(BO3)3V3W | The formula is a framework rather than one species recipe. Site occupancy determines species identity. |
| Crystal system | Trigonal | Crystals commonly show three-sided or rounded-triangular cross-sections. |
| Habit | Prismatic, columnar, acicular, radial, massive, granular | Longitudinal striations are one of the most useful macroscopic clues. |
| Color | Black, brown, green, blue, pink, red, yellow, colorless, multicolored | Color may be uniform, zoned lengthwise, concentrically zoned, or sector-zoned. |
| Streak | White | Streak testing is rarely appropriate for valued specimens or finished gems because it is destructive. |
| Luster | Vitreous, sometimes resinous to submetallic in dark material | Fresh faces and ribbed prism surfaces can show bright linear highlights. |
| Transparency | Transparent to opaque | Gem elbaite and some liddicoatite are transparent; schorl is usually opaque. |
| Hardness | Mohs 7–7.5 | Hard enough for many jewelry uses, but crystals are still brittle if struck. |
| Cleavage and fracture | No distinct cleavage; uneven to conchoidal fracture | Absence of distinct cleavage improves durability, but thin prisms and included stones can chip. |
| Specific gravity | Approximately 2.95–3.30 | Iron- and magnesium-rich species are generally heavier than many lithium-rich gem tourmalines. |
| Optic character | Usually uniaxial negative | Strain and zoning may sometimes produce anomalous optical behavior. |
| Refractive indices | nω about 1.62–1.68; nε about 1.61–1.65 | Exact values vary with chemistry; higher iron and magnesium content can raise refractive index. |
| Birefringence | Commonly about 0.014–0.032 | Moderate birefringence contributes to tourmaline’s diagnostic optical profile. |
| Pleochroism | Moderate to very strong | Blue and green stones often show dramatic differences between viewing directions. |
| Fluorescence | Variable; many stones inert | Some manganese-rich pink to red stones may fluoresce, but fluorescence is not a primary diagnostic feature. |
| Electrical behavior | Pyroelectric and piezoelectric | Temperature change or pressure can create surface charge that attracts light particles. |
| Chemical stability | Generally stable under ordinary wear and display | Avoid harsh chemicals, sudden thermal shock, and aggressive cleaning on included or fragile pieces. |
Optical Behavior: Pleochroism and Directional Color
Tourmaline is famous for pleochroism: the same crystal can show different depths or hues depending on viewing direction. In many green and blue stones, the view parallel to the c-axis is significantly darker than the view across it.
This directional absorption matters for both identification and cutting. A dark green or blue crystal may need to be oriented so the face-up view avoids the darkest direction, while a pale crystal may benefit from an orientation that intensifies color. The cutter is not merely shaping the stone; they are choosing which optical direction becomes the visible face.
Historically, tourmaline also had scientific importance because thin plates of strongly absorbing material could act as polarizing filters. That optical behavior rests on the same anisotropic absorption that makes a crystal appear to shift from deep to open color when rotated.
How to read the optics
- Rotate the stone: a strong change in color depth is a useful clue for tourmaline, especially in green and blue material.
- Use side light: angled illumination reveals striations and surface relief without washing out saturation.
- Check the c-axis: the length direction of a crystal is often the darkest viewing direction in saturated stones.
- Observe zoning: bicolor and watermelon stones may show both lengthwise and concentric growth zones.
Color Chemistry: Why Tourmaline Has a Spectrum
Tourmaline’s color range is the visible result of chemical substitution. Different ions occupy different structural sites, and changes in growth fluid can create sudden or gradual color shifts within the same crystal.
Green, blue, brown, and black
Iron is central to many green, blue-green, blue, brown, and black tourmalines. Abundant iron produces dark schorl and can make crystals strongly absorbing.
Pink to red
Manganese is strongly associated with pink, red, and purplish-red tourmaline color terms such as rubellite. Some material may be affected by irradiation or heat history.
Vivid greens
Chromium- or vanadium-bearing tourmaline can show saturated green tones that resemble emerald-like color in fine material.
Blue-green intensity
Copper-bearing tourmaline, often with manganese, is associated with vivid blue, greenish blue, and blue-green colors. Chemical confirmation is important when that description affects value.
Growth written in color
Concentric, lengthwise, and sector zoning record changing conditions during crystal growth. Watermelon tourmaline is the best-known example.
Generally durable color
Many green and blue stones are stable in ordinary light. Some pink material can be sensitive to prolonged intense light or aggressive heat, so conservative care is wise.
Crystal Habit and Surface Textures
Tourmaline commonly grows as long prisms with strong vertical striations. These ribs can be fine and silky or deep enough to give the crystal an architectural look. Terminations may be flat, wedge-like, asymmetrical, or composed of multiple triangular and rhombohedral faces.
Ribbed columns
The classic tourmaline form is an elongated prism with grooves parallel to the c-axis and a rounded-triangular cross-section.
Color cross-sections
Polished slices can reveal pink cores, green rims, triangular sectors, or target-like patterns that are less obvious from the outside.
Sprays and cat’s-eye material
Fine parallel tubes, needles, or growth channels can create chatoyancy when cut in the right orientation.
Pegmatite and metamorphic textures
Tourmaline may occur as granular aggregates, sprays in quartz and feldspar, or crystals embedded in mica, marble, or skarn assemblages.
- Pegmatite associations: quartz, microcline or orthoclase, albite, cleavelandite, lepidolite, muscovite, apatite, and beryl may occur with gem tourmaline.
- Metamorphic associations: dravite and uvite may appear with marbles, schists, gneisses, calcite, diopside, spinel, and magnesium-rich assemblages.
- Dark tourmaline associations: schorl is common in granites, granitic pegmatites, greisens, quartz veins, and metamorphic rocks.
Identification and Look-Alikes
Tourmaline is often recognizable, but precise species identification may require chemical analysis. Visual identification should combine habit, hardness, pleochroism, refractive index, density, and matrix context.
| Check or comparison | Tourmaline clue | Why it helps |
|---|---|---|
| Longitudinal striations | Ribs commonly run along the length of the prism. | Deep lengthwise striations distinguish tourmaline from many smoother prismatic gems. |
| Cross-section | Triangular to rounded-triangular forms are common. | Beryl is hexagonal, while tourmaline often looks more three-sided or rounded-triangular. |
| Hardness | Mohs 7–7.5. | Harder than many amphiboles and some dark silicates, but scratch testing should be avoided on valued pieces. |
| Cleavage | No distinct cleavage. | Topaz has perfect basal cleavage; many amphiboles and pyroxenes show more obvious cleavage breaks. |
| Pleochroism | Often moderate to very strong. | Spinel is singly refractive and lacks pleochroism; beryl usually shows weaker directional color. |
| Specific gravity | Commonly near 3.0, varying by species. | Helps separate tourmaline from lighter beryl and heavier corundum or topaz in some cases. |
| Advanced testing | Refractive index, interference figure, spectroscopy, Raman, or chemical analysis. | Required for confident distinction among species and for copper-bearing or chromium/vanadium claims. |
Species, Color Terms, and What They Mean
Tourmaline names can describe either species chemistry or visual color. Keeping those categories separate improves accuracy.
| Name | Type of term | Typical appearance | Important caution |
|---|---|---|---|
| Schorl | Species | Black to blue-black, usually opaque, strongly ribbed prisms. | Commonly called black tourmaline, but related dark tourmalines also exist. |
| Dravite | Species | Brown, honey, greenish brown, or sometimes vivid green. | Magnesium-rich chemistry; species certainty often needs chemical testing. |
| Uvite | Species | Green, brown, dark, or short lustrous crystals, often in carbonate settings. | Can resemble dravite; chemistry is needed for confidence. |
| Elbaite | Species | Transparent gem tourmaline in pink, green, blue, colorless, and multicolor forms. | Many familiar gem color terms are often elbaite, but color alone does not prove species. |
| Liddicoatite | Species | Often multicolored, sometimes with dramatic triangular sector zoning. | May resemble elbaite without analysis. |
| Rubellite | Color term | Pink to red or purplish-red tourmaline. | Not a species name; inclusions are common and must be evaluated with durability in mind. |
| Indicolite | Color term | Blue to blue-green tourmaline, often strongly pleochroic. | Cut orientation strongly affects whether the stone appears open or overly dark. |
| Verdelite | Color term | Green tourmaline ranging from yellow-green to forest green. | Chromium- or vanadium-related color should be confirmed when stated as a chemical claim. |
| Paraíba-type | Chemistry and color-related trade term | Vivid blue, greenish blue, or blue-green copper-bearing tourmaline. | Copper-bearing identity and origin should not be inferred from color alone. |
| Watermelon | Zoning term | Commonly pink center with green rim, especially in slices. | Describes a growth pattern rather than species. |
Care, Handling, and Stability
Tourmaline is durable in hardness and lacks distinct cleavage, but it is not immune to fracture. Long crystals, thin slices, included gems, repairs, and matrix specimens require careful handling.
- Cleaning: stable stones can usually be cleaned with lukewarm water, mild soap, and a soft brush, then dried thoroughly.
- Ultrasonic and steam caution: avoid aggressive cleaning for heavily included, fracture-filled, repaired, coated, heat-sensitive, or delicate specimens.
- Heat: avoid rapid temperature changes and unnecessary heating. Tourmaline can fracture, craze, or show color change under harsh conditions.
- Sunlight: many green and blue stones are stable, but prolonged intense light is unwise for some pink material and treated or included stones.
- Storage: wrap tourmaline separately from harder gems and protect terminations, ribs, and slender prisms from point pressure.
- Specimens: support matrix pieces from below and avoid handling them by crystal tips or fragile sprays.
Observation and Documentation
Tourmaline rewards deliberate observation. Its surface, color, and optical behavior change with rotation and lighting, so a single view rarely tells the whole story.
Use angled, diffused light
A low side light emphasizes striations, luster, and surface relief. Backlighting can reveal zoning in translucent crystals and slices.
Read the pleochroism
Turn the stone through at least two perpendicular orientations. Record whether the color opens, darkens, or shifts in hue.
Check condition and growth features
Use magnification to examine surface-reaching fractures, healed fissures, tubes, zoning boundaries, chips, polish, and possible treatment indicators.
Keep names precise
Record whether a label is a confirmed species, a color term, a trade term, or a locality claim. These are different kinds of information.
Best description practice: begin with the broad identity, such as “tourmaline,” then add confirmed species, color term, locality, treatment status, and matrix only when those details are supported.
Frequently Asked Questions
Is tourmaline one mineral or many?
Tourmaline is a mineral group. The structure remains recognizable, but the chemical sites can be filled by different elements or vacancies, producing species such as schorl, dravite, uvite, elbaite, liddicoatite, foitite, and others.
Why does tourmaline occur in so many colors?
Its structure can host many color-influencing elements, including iron, manganese, chromium, vanadium, and copper. Changing growth chemistry can also create bicolor, tricolor, sector-zoned, and watermelon-style crystals.
What causes strong pleochroism in tourmaline?
Tourmaline absorbs light differently along different crystallographic directions. This directional absorption makes a stone look darker, lighter, or subtly different in hue as it is rotated.
Does tourmaline have cleavage?
Tourmaline has no distinct cleavage. It breaks unevenly or conchoidally, which improves durability compared with cleavable stones, but it can still chip or fracture if struck.
Why can tourmaline attract dust or ash?
Tourmaline is pyroelectric and piezoelectric. Temperature change or pressure can create surface charge, which may attract light particles such as dust, lint, or ash.
Is “Paraíba” a color, chemistry, or locality term?
It is best handled carefully. Paraíba-type material refers to vivid blue to green copper-bearing tourmaline, and origin is a separate claim. Color alone is not enough to prove copper-bearing chemistry or geographic source.
How should tourmaline be cleaned?
For stable pieces, lukewarm water, mild soap, and a soft brush are usually appropriate. Avoid steam, ultrasonic cleaning, harsh chemicals, and heat for included, fractured, filled, repaired, or delicate stones.
