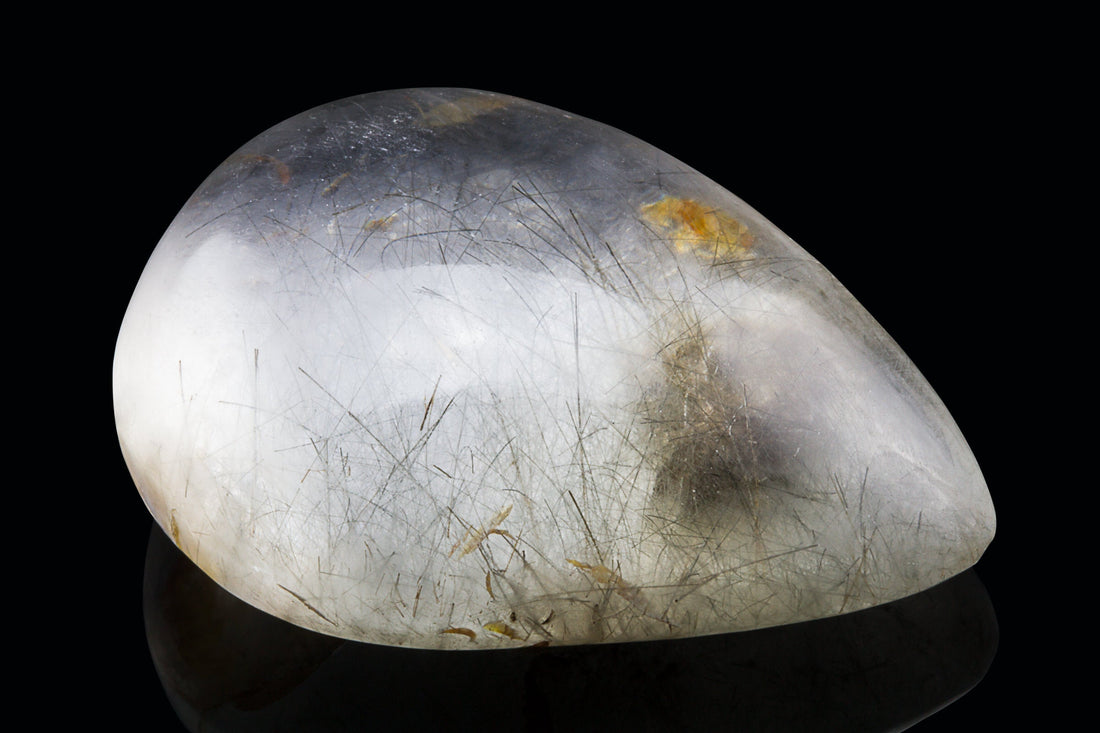

Rutile Quartz (Rutilated Quartz): Physical & Optical Characteristics
Linas JuozenasShare
Physical and Optical Characteristics
Rutile Quartz: The Optics of Golden Needles in Clear Quartz
Rutile quartz is a composite natural scene: a quartz host, SiO2, enclosing needles of rutile, TiO2. The contrast between glassy quartz and high-index rutile creates metallic flashes, filament patterns, occasional cat’s-eye effects, and the classic “Venus hair” appearance.
What Rutilated Quartz Is
Rutilated quartz is quartz that has enclosed rutile needles during crystal growth. The quartz remains the host mineral; the rutile is the included mineral responsible for the internal filaments.
Quartz is a durable trigonal silicate with vitreous luster and modest refractive indices. Rutile is a tetragonal oxide of titanium with much higher refractive indices, strong birefringence, and a needlelike habit. When these two minerals occur together, the result can look like gold, copper, bronze, or reddish threads suspended in glass.
Trade and descriptive names such as Venus Hair Quartz, Angel Hair Quartz, Cupid’s Arrows, and Sagenitic Quartz refer to visual style. The most precise mineral description is quartz with rutile inclusions.
Quartz
Quartz provides the transparent to translucent body, glassy luster, conchoidal fracture, and everyday durability associated with the stone.
Rutile
Rutile creates the gold, bronze, copper, reddish, honey, brown, or occasionally gray internal needles and sprays.
Filament architecture
The stone’s character depends on needle density, direction, color, thickness, clarity of the host, and the way light enters the quartz.
Physical and Optical Properties
Most standard readings describe the quartz host. Rutile, however, strongly affects the appearance because it has much higher optical constants and a reflective internal surface compared with quartz.
| Property | Quartz Host | Rutile Inclusions | Why It Matters |
|---|---|---|---|
| Composition | SiO2 | TiO2 | The stone is a two-mineral association: quartz as host, rutile as included titanium dioxide. |
| Mineral class | Tectosilicate | Oxide | The minerals have different structures and optical behavior, producing strong visual contrast. |
| Crystal system | Trigonal, within the hexagonal family | Tetragonal | Different symmetries contribute to crossing, radiating, and twinned inclusion patterns. |
| Color | Usually colorless, but may be smoky, milky, or warm-toned | Golden, bronze, coppery, reddish, honey, brown, or gray | Needle color depends on thickness, trace chemistry, oxidation conditions, and viewing angle. |
| Mohs hardness | 7 | About 6 to 6.5 | The exterior behaves like quartz, though dense inclusions and fractures can make the piece more impact-sensitive. |
| Specific gravity | About 2.65 | About 4.2 to 4.3 | The composite usually reads near quartz unless rutile is unusually abundant. |
| Cleavage and fracture | No true cleavage; conchoidal fracture | Distinct cleavage in larger crystals, rarely visible in fine needles | Needles and related fractures can concentrate stress, especially in rings and exposed cabochons. |
| Luster | Vitreous | Adamantine to metallic-silky | The contrast between glassy host and bright needles creates the signature internal gleam. |
| Optic character | Uniaxial positive | Uniaxial positive | Both minerals are uniaxial, but rutile’s optical constants are far higher. |
| Refractive indices | nω about 1.544; nε about 1.553 | Very high, roughly 2.6 to 2.9 depending on direction and measurement | High rutile indices make even fine needles stand out strongly inside a clear host. |
| Birefringence | About 0.009 | Strong, about 0.28 | Under crossed polarizers, rutile needles can show vivid interference behavior compared with quartz. |
| Fluorescence | Usually inert to weak | Usually inert | Fluorescence is not a primary diagnostic feature for rutilated quartz. |
Why the Needles Flash
Rutile quartz looks active under light because the quartz host transmits light while the rutile needles reflect, refract, and scatter it with far greater intensity.
Quartz bends light gently, keeping the host airy and transparent. Rutile bends light strongly and has a bright internal surface. Each needle can act like a tiny reflector, returning metallic glints as the stone rotates. Parallel groups of needles may concentrate reflection into a narrow moving band called chatoyancy. In some oriented cabochons, intersecting needle sets can produce a star-like effect, though many “starburst” rutilated quartz pieces show a visible inclusion pattern rather than true optical asterism.
Optical effects to recognize
- Metallic internal flashes: produced as light reflects from the high-index rutile needles inside the transparent host.
- Chatoyancy: a moving line of light formed by dense, parallel rutile needles in a correctly oriented cabochon.
- Starburst patterns: visible radial sprays of needles, often grown around a seed inclusion such as a tiny oxide plate.
- Polarized-light contrast: rutile’s strong birefringence can appear vivid compared with quartz under crossed polarizers.
Color, Patterns, and Aesthetic Structure
Rutile inclusions vary from pale silk to bold architectural bars. The host may be water-clear, smoky, milky, or faintly warm, and that host tone changes how the rutile reads.
Sunlit filament fields
Gold and bronze needles are the most familiar appearance. Fine parallel fields may look silky, while thicker needles look more metallic and graphic.
Warm oxide-rich tones
Thicker needles, trace chemistry, and surface conditions can shift the visible color toward copper, russet, or reddish-brown.
Frosted internal wires
Some fine rutile reads as pale or grayish. Truly black needles, however, should be examined carefully because they are often tourmaline or another mineral.
Radiating clusters
Needles may radiate from a small seed inclusion, creating a spoked pattern. This is a visible growth arrangement, not necessarily optical asterism.
Angular needle geometry
Rutile can form V-shaped twinned patterns, nested angles, and reticulated networks described as sagenitic or herringbone textures.
Warm gold in a darker window
Smoky quartz can heighten the contrast of golden rutile, giving the inclusions a deeper and more atmospheric appearance.
Crystal Habit and Textures
Rutile quartz may appear as natural crystals, polished cabochons, slices, beads, spheres, or faceted stones. The best form depends on the internal pattern.
| Form or Texture | What It Shows | Optical Strength | Evaluation Notes |
|---|---|---|---|
| Natural quartz prisms | Needles suspended through the crystal body, sometimes aligned with the long crystal direction. | Strong flashes through natural faces when clarity is high. | Intact terminations and a visible inclusion field through a main face are important. |
| Cabochons | Dense or parallel needle fields under a curved dome. | Best form for chatoyancy when needles are correctly oriented. | Dome height and alignment determine whether the moving band is strong or weak. |
| Slices and polished windows | Cross-sections of needles, sprays, bars, and twinned patterns. | Excellent for studying geometry and distribution. | Thin slices may show dramatic compositions but can be more fragile. |
| Dense silk | Very fine, numerous needles that create a soft internal haze. | Can produce glow, sheen, or gentle cat’s-eye effects. | The most attractive examples remain legible rather than muddy. |
| Graphic bar rutile | Thicker rutile crystals crossing the quartz in bold lines. | High internal contrast under side light. | Best appreciated when the quartz host has enough clarity and negative space. |
Identification and Look-Alikes
Rutile quartz identification begins with confirming quartz as the host and then identifying the needle inclusions. Not every needle-bearing quartz contains rutile.
Durable glassy body
Quartz has Mohs hardness 7, vitreous luster, no true cleavage, conchoidal fracture, specific gravity near 2.65, and refractive indices near 1.544 to 1.553.
Bright needles and V twins
Rutile commonly appears as golden, bronze, coppery, reddish, or brown needles with sharp edges, radiating sprays, and occasional elbow-twin geometry.
Black schorl rods
Black needle quartz is often tourmalinated quartz. Schorl tourmaline is usually opaque black and may appear as thicker, prismatic, or striated rods.
Iron-bearing needles and plates
Iron oxides and oxyhydroxides can produce brown, red-brown, or plate-like inclusions. Hematite may also appear as seed plates for rutile sprays.
Repeated bubbles and uniform wires
Manufactured look-alikes may show flow lines, mold seams, rounded bubbles, or unnaturally regular wire-like inclusions.
When uncertainty remains
Magnification, refractive-index testing of the host, polarized-light observation, Raman analysis, or professional gemological review can resolve difficult cases.
Practical observation: a 10× loupe often reveals whether the internal feature is a sharp mineral needle, a plate, a rounded bubble, or an opaque rod. Color alone is not enough for identification.
Viewing and Photographing Rutile Quartz
Rutile quartz changes dramatically with light angle. A flat front light may make needles appear quiet, while a side light can make the same stone flash with metallic intensity.
- Use angled side light to emphasize golden and copper flashes along the needles.
- Use a single point light for cat’s-eye or star effects in cabochons, then rotate the stone slowly to find the active direction.
- Use a neutral background so transparent quartz and internal needles remain readable without visual clutter.
- Use magnification carefully to reveal elbow twins, radiating sprays, seed plates, and the difference between rutile and possible look-alikes.
- Record the strongest viewing angle when studying a specimen, because optical effects can appear only within a narrow range of rotation.
Care, Wear, and Long-Term Stability
Rutile quartz is generally cared for like quartz, but dense inclusions, internal fractures, and needle concentrations make gentle handling worthwhile.
- Clean with lukewarm water, mild soap, and a soft brush when needed; dry thoroughly after washing.
- Avoid ultrasonic and steam cleaning for fractured, heavily included, or cabochon-cut pieces, because vibration and heat can stress internal weaknesses.
- Avoid sharp impacts and rapid temperature changes, particularly in rings or exposed cabochons with dense needle fields.
- Store polished stones separately from harder gems, metal edges, and other quartz points that may scuff surfaces.
- For jewelry, pendants and earrings are usually lower-risk settings than rings, especially for strongly included or fracture-rich material.
- During lapidary cutting, drilling, or sanding, use wet methods and dust control; quartz dust is hazardous when inhaled.
Frequently Asked Questions
Is rutilated quartz natural?
Natural rutilated quartz forms when quartz encloses rutile needles during or after early stages of growth. Polishing and cutting are normal lapidary processes, but the rutile inclusions themselves are natural in untreated specimens.
Why are the needles often golden?
Rutile can appear golden, bronze, coppery, reddish, brown, or gray depending on thickness, trace chemistry, internal reflection, and the light path through the quartz host.
How is rutile different from tourmaline in quartz?
Rutile is commonly golden to coppery and may show bright metallic-looking flashes, V-shaped twins, and radiating sprays. Tourmaline in quartz is usually black schorl, appearing as opaque rods or needles with a more graphic and less golden appearance.
Can rutilated quartz show a cat’s-eye?
Yes. If the rutile needles are dense, parallel, and correctly oriented in a domed cabochon, a moving band of light can appear under a single point light. Not all rutilated quartz is oriented strongly enough for this effect.
Are starburst inclusions the same as asterism?
No. A starburst is a visible radiating arrangement of rutile needles inside the quartz. Asterism is an optical star formed by oriented inclusions in a properly cut cabochon under point light.
Can rutile inclusions weaken quartz?
The quartz host remains hard and durable, but dense needle fields and associated fractures can concentrate stress. Protective settings and gentle wear are recommended for heavily included jewelry stones.
