Quartz: Formation, Geology & Varieties

Quartz: Formation, Geology & Varieties

Quartz: Formation, Geology & Varieties

SiO2 — from magma hearts to beach sands, quartz is Earth’s most versatile storyteller.

Creative catalog nicknames: Frost‑Lantern (rock crystal), Violet Choir (amethyst), Sun‑Honey (citrine), Stormglass (smoky), Blush Cloud (rose), Gardenlight (inclusion quartz), River‑Sugar (drusy).

🧪 The Silica Story — why quartz is everywhere

Quartz is crystalline silica, SiO2. In Earth’s crust, silica moves through a grand loop: melts (magma), hydrothermal fluids, weathering, transport, and diagenesis (conversion in sediments). Along the way it appears as:

  • α‑Quartz (low quartz): The room‑temperature form, trigonal and chiral. Above ~573 °C, it inverts to β‑quartz (hexagonal), then cools back to Îą.
  • Microcrystalline quartz: Intergrowths of quartz + moganite (fibrous/cryptocrystalline) — agate, chalcedony, jasper.
  • Amorphous precursors: Opal‑A (gel‑like), aging to opal‑CT (cristobalite–tridymite), then to chalcedony/quartz during diagenesis.
Takeaway: Whether it crystallizes from a granite melt, grows from hot fluids, or precipitates in a basalt bubble, quartz is the end‑of‑the‑line mineral for silica in the crust.

🗺️ Where Quartz Forms — Geologic Settings at a Glance

Setting Process What to Expect
Igneous (felsic plutons) Late‑stage crystallization from silica‑rich magma (granite, rhyolite) Prismatic rock‑crystal points in miarolitic cavities; graphic granite; smoky & amethyst zoning in volcanic cavities.
Pegmatites Extreme fractionation concentrates volatiles; slow growth in pockets Large, clear crystals; scepters, skeletal (“fenster”) faces; accessory tourmaline, beryl, feldspar.
Hydrothermal veins Hot, silica‑bearing fluids deposit quartz along fractures Comb quartz, banded veins, drusy linings; alpine‑cleft gwindels; association with carbonates, sulfides.
Vugs & geodes (basalts) Silica‑rich fluids infiltrate vesicles in lava Agate/chalcedony bands, quartz druse centers, amethyst geodes; zeolite neighbors.
Metamorphic Recrystallization, pressure‑solution, fluid flow during heating Vein quartz with “ribbon” textures; quartzite (sandstone → quartz mosaic); undulatory extinction in deformed rocks.
Sedimentary & diagenetic Silica cementation/replacement; opal → chalcedony → quartz Chert/flint nodules; petrified wood; agate from silica gels; quartz overgrowths on sand.

Rule of thumb: Wherever silica can go, quartz likely waits at the finish line.

⏳ From Melt to Mineral — a Friendly Timeline

  1. Magma stage: Felsic magmas saturate with silica; early feldspar/mica crystallize, leaving silica‑rich residual melt.
  2. Pocket stage: Gas + volatiles carve cavities (miaroles). Quartz seeds grow into clear prisms, sometimes with smoky or amethyst zoning.
  3. Hydrothermal stage: Cooling fluids move through fractures, laying quartz veins (comb textures, banding, drusy coats).
  4. Weathering stage: Resistant quartz grains survive as sands; dissolved silica travels in groundwater.
  5. Diagenetic stage: Silica gels infill voids; opal ages to chalcedony/quartz — agates band, wood silicifies, chert forms in limestones.
  6. Metamorphic stage: Sandstone becomes quartzite; new veins form as pressure dissolves and re‑deposits silica.
Display idea: Arrange specimens left→right as a “silica cycle”: granite point → vein quartz → geode druse → agate slice → petrified wood → quartzite chip.

🔷 Growth Forms, Habits & Textures

Prisms & Terminations

Six‑sided prisms with rhombohedral/pyramidal tips; horizontal striations common. Double‑terminated crystals grow in open cavities (“Herkimer‑style”).

Scepters & Elestials

A “head” overgrowing a slender stalk (scepter). Elestial/fenster quartz shows stepped, skeletal faces from fluctuating growth conditions.

Twinned & Twisted

Japan‑law twins meet at ~84°33′; alpine gwindel crystals twist like slow helixes — a collector favorite from alpine clefts.

Coatings & Druse

Iron oxides paint faces orange; chlorite greens them; micro‑quartz druse adds “sugar” sparkle to matrix and agate centers.

Texture tells temperature and fluid tales — like tree rings, but shinier.

💎 Varieties (Color, Habit & Trade Styles)

Quartz varieties arise from trace elements, color centers, inclusions, and growth environment. Use creative names for charm, but label the species clearly as Quartz (SiO2).

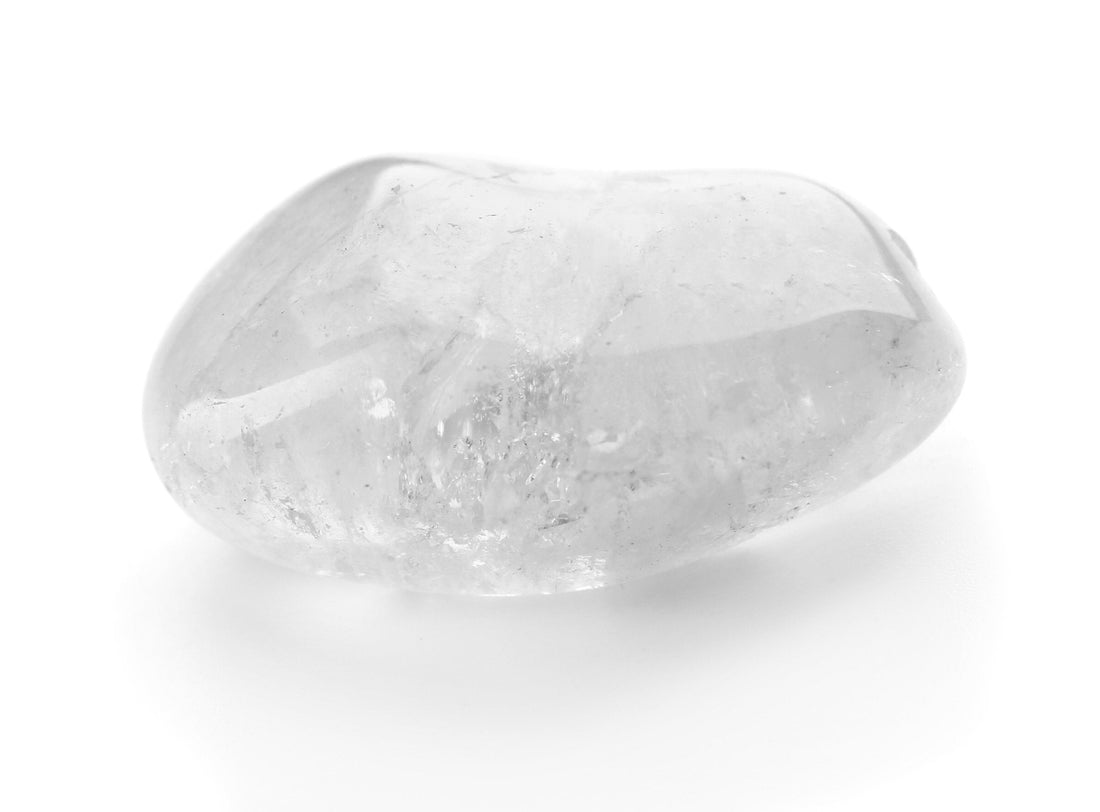

Rock Crystal — “Frost‑Lantern”

Colorless, optically clean crystals from pegmatites, alpine clefts, and geodes. Ideal for optical experiments and sculptural displays.

Amethyst — “Violet Choir”

Purple from Fe‑related color centers activated by natural irradiation. Zoning common (pale to deep). Heat may shift purple → yellow (citrine).

Smoky Quartz — “Stormglass”

Brown‑gray from Al‑related color centers (irradiation). Gradients from tea‑smoked to nearly black (morion). Gentle heat can lighten.

Citrine — “Sun‑Honey”

Yellow to orange. Naturally rare; much on the market is heated amethyst/smoky. Natural tones are soft lemon→gold — label clearly.

Rose Quartz — “Blush Cloud”

Pink from microscopic fibrous inclusions and/or color centers. Usually massive/translucent; rare crystalline rose quartz can show star cabochons.

Prasiolite — “Green Whisper”

Green quartz; natural occurrences are uncommon. Often produced by heating/irradiating amethyst from specific chemistries. Disclose treatment.

Ametrine — “Twilight Blend”

Zoned amethyst + citrine in one crystal from changing oxidation states during growth. Natural and synthetic both exist — provenance matters.

Milky Quartz — “Cloud Hearth”

Hazy from fluid inclusions and micro‑defects scattering light. Common in veins and massive deposits; great for carving and energy‑style décor.

Inclusion Quartz — “Gardenlight”

Scenic interiors: rutile needles (rutilated), tourmaline (schorl) hairs, chlorite “gardens,” hematite confetti, fluid “bubbles.” Orientation makes the scene.

Adventurine Quartz — “Leaf‑Spark”

Glitter from fuchsite (green) or hematite/goethite (orange/brown) platelets dispersed in quartz. Classic for beads and smooth cabs.

Color chemistry (ultra‑short): Amethyst = Fe color centers + irradiation; Smoky = Al color centers + irradiation; Citrine = heat‑tweaked centers; Rose = microfibers/color centers; Prasiolite = heat/irradiation ± natural rarities.

🟢 Microcrystalline Family — Agate, Chalcedony & Jasper

These are quartz on a smaller scale — fibrous/cryptocrystalline intergrowths of quartz and moganite. They form from silica gels in low‑temperature cavities and as replacements in sediments.

Agate — “Ring‑Cake”

Banded chalcedony filling vesicles and cracks in volcanic rocks. Rhythmic chemistry and growth create rings, eyes, and fortification patterns; quartz druse often caps the center.

Chalcedony — “Silk‑Stone”

Uniform, semi‑translucent microcrystalline quartz. Classic hues: blue‑gray, white, lavender. Forms botryoidal skins, stalactites, and smooth veins.

Jasper — “Earth‑Paint”

Opaque, impure microquartz rich in iron oxides/clays; shows scenic “picture” patterns. Excellent for carvings, slabs, and hardy décor.

Pro tip: “agate” = banded, “chalcedony” = uniform, “jasper” = opaque and patterned (with wiggle room in the trade).

🔁 Replacements & Pseudomorphs (Quartz wearing costumes)

  • Petrified wood: Organic tissue replaced by chalcedony/quartz, cell structure retained. Nature’s 3D scan in silica.
  • Tiger’s eye: Quartz after crocidolite; fibrous texture preserved → chatoyant “eye.”
  • Quartz after calcite/fluorite: Hollow casts or complete replacements maintain original crystal shape.
  • Agatized fossils: Shells and bones silicified with chalcedony; interiors can be geodized with drusy quartz.
Field clue: If a piece looks like one mineral but behaves like quartz (hardness 7, conchoidal chips, no cleavage), you might be holding a quartz pseudomorph.

🧪 Synthetic & Treated Quartz — Disclosure Cheat‑Sheet

  • Hydrothermal synthetic quartz: Lab‑grown in autoclaves for optics/electronics; also cut as gems. Often very clean; seed plates and growth “chevrons” may be seen under magnification.
  • Irradiation/heat: Common for smoky (irradiation), amethyst→citrine (heat), green quartz (irradiation + heat). Honest labels build trust.
  • Dyeing: Agates and crackled quartzes are frequently dyed. Look for concentrated color in fractures and pores; acetone test (on rough/offcuts) can help.
  • Coatings: “Aura” quartz gets thin metallic films via vapor deposition — beautiful but non‑natural surface color; disclose as such.

Lighthearted note: if a quartz is the color of a highlighter pen, nature probably had a lab assistant.

❓ FAQ

Why is quartz so common in granites but scarce in basalts?

Granites/rhyolites are silica‑rich (felsic), so quartz crystallizes readily. Basalts are silica‑poor (mafic); quartz doesn’t crystallize from the melt but can precipitate later in vesicles as agate/chalcedony/quartz from fluids.

What creates banding in agates?

Rhythmic changes in silica concentration, impurities, pH, and growth rate as gels solidify in a cavity. Iron/manganese oxides tint the bands; quartz druse often finishes the center.

How do amethyst, smoky, and citrine relate?

They’re siblings defined by different defects: Fe color centers (amethyst), Al color centers (smoky), and heat‑shifted centers (citrine). Temperature and irradiation history write the palette.

Is rose quartz always massive?

Mostly. The common pink is massive/translucent from microfibers. Rare “crystalline rose quartz” occurs as prismatic crystals and can show star effects in cabochon — label this special case clearly.

What’s the difference between chalcedony and jasper?

Chalcedony is translucent and uniform; jasper is opaque and impurity‑rich with earthy patterns. Both are microcrystalline quartz varieties with fuzzy boundaries in the trade.

✨ The Takeaway

Quartz is the final form of silica in Earth’s crust — robust, adaptable, and expressive. It rises from magma, lines hydrothermal veins, quilts volcanic bubbles into agate, cements sands into stone, and preserves wood and shells in patient glass. Its varieties — amethyst, smoky, citrine, rose, inclusion “gardens,” and the microcrystalline family — are not separate species but stories written in chemistry and growth conditions. Label clearly, disclose treatments, and display by geologic setting to turn a case of quartz into a journey from deep crust to sunny surface.

Lighthearted wink: Quartz is the friend who shows up to every party and still manages a new outfit each time. Versatile, punctual, and dazzling under good lighting. 😄
