Silicon (Polycrystalline): Physical & Optical Characteristics
Linas JuozenasShare
Physical and optical characteristics

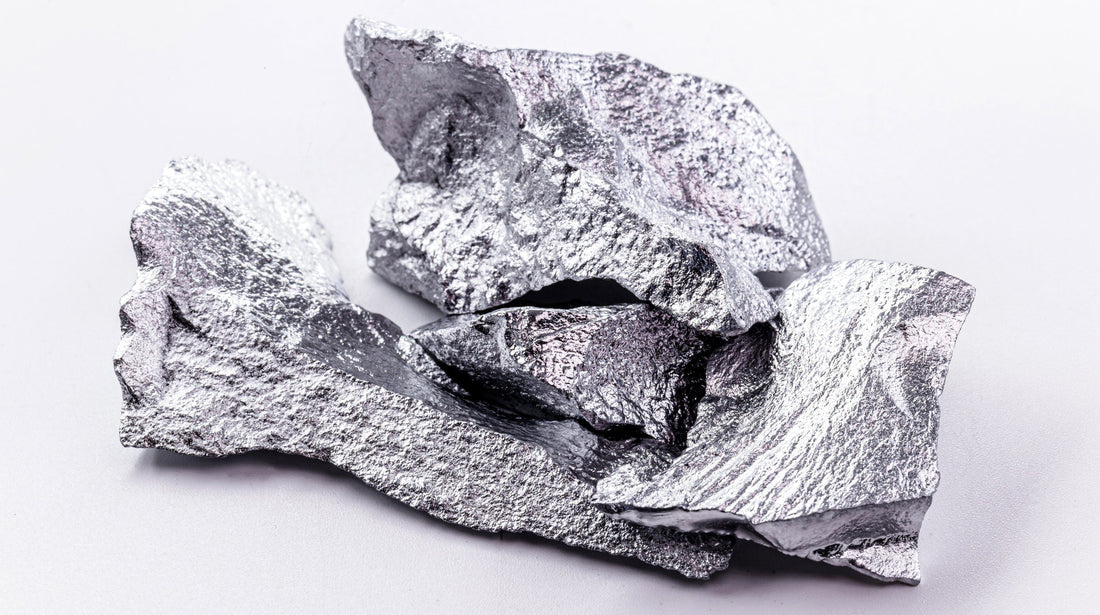

Polycrystalline Silicon: Silver-Gray Grains, Signal, and Infrared Light
A focused profile of elemental silicon in polycrystalline form: a hard, brittle semiconductor whose many crystal grains create a metallic-looking mosaic, visible opacity, infrared transmission, and the technical surface textures behind solar cells and silicon photonics.
- Si
- Elemental silicon
- Diamond-cubic grains
- Indirect band gap
- Visible opaque, infrared transmissive
Polycrystalline silicon is elemental silicon arranged as many interlocking crystals rather than one continuous crystal. Each grain has the diamond-cubic structure of silicon, but adjacent grains are oriented differently. That internal mosaic controls the material’s reflectivity, fracture, thermal behavior, electrical response, and the grain-boundary shimmer visible on broken or etched surfaces.
Material Identity
Polycrystalline silicon is not quartz, glass, silicon carbide, or a metallic ore. It is elemental silicon, Si, made of many crystalline grains joined along grain boundaries.
Within each grain, silicon atoms form a diamond-cubic network. Across the whole piece, however, the crystal orientation changes from grain to grain. A fractured chunk may therefore show bright mirror-like faces beside darker satin areas, while a sawn or etched surface may show a patchwork of angular grains.
The term is used across several contexts. Industrial polysilicon feedstock may appear as fractured rod chunks or granular particles. Multicrystalline ingot fragments show larger solidification grains. Wafer offcuts may show saw marks, blue-gray coatings, etched light-trapping textures, or a fine grid pattern from photovoltaic processing.
Precise distinction: quartz is silicon dioxide, SiO2. Polycrystalline silicon is elemental silicon, Si. The two are chemically and optically different, even though quartz or other silica-rich feedstock may be part of silicon’s industrial origin.
Physical and Optical Properties at a Glance
Most hand specimens and educational fragments are stable, hard, brittle, silver-gray pieces. Their technical behavior depends strongly on purity, doping, processing route, grain size, surface finish, and oxide or coating films.
| Property | Typical value or behavior | Interpretive notes |
|---|---|---|
| Chemical identity | Elemental silicon, Si; metalloid | A covalent network solid, not a metal and not silica. |
| Structure per grain | Cubic, diamond-cubic | Each grain is crystalline; the bulk is a mosaic of differently oriented crystals. |
| Appearance | Silver-gray to gunmetal, metallic-looking | Fresh broken surfaces can be bright and reflective; etched or granular surfaces look more satin. |
| Luster | Metallic to submetallic; glassy on some fracture faces | The luster reflects high refractive index and strong visible absorption, not true metallic bonding. |
| Hardness | About Mohs 6.5–7 | Comparable to quartz; thin splinters and fractured edges can be sharp. |
| Cleavage | Good on {111} within individual grains | Bulk fractures are complicated by grain boundaries, internal stress, and processing history. |
| Fracture | Conchoidal to sub-conchoidal; brittle | Broken chunks can show shell-like curves, stepped facets, and angular splinters. |
| Density | About 2.33 g/cm³ | Noticeably lighter than galena, hematite, and many metallic ores despite the metallic-looking surface. |
| Melting point | About 1414 °C | Relevant to casting, wafer growth, and remelting feedstock. |
| Electrical behavior | Semiconductor | Resistivity varies with purity, dopants, defects, and grain boundaries. |
| Band gap | About 1.12 eV at room temperature; indirect | The absorption edge lies near 1100 nm, placing it just beyond visible red in the near-infrared. |
| Visible transparency | Opaque in bulk | Visible photons are mostly absorbed or reflected rather than transmitted through ordinary pieces. |
| Infrared behavior | Transmissive in selected near- and mid-infrared ranges when polished and sufficiently pure | Absorption rises with doping, defects, surface roughness, and free carriers. |
| Refractive index | Approximately 3.4–3.5 near 1.3–1.6 µm | A high index makes silicon valuable for infrared optics, but also makes reflection losses significant without coatings or texture. |
| Birefringence | None for unstressed cubic grains | Stress, defects, and boundaries can produce faint light leakage under crossed polarizers. |
| Fluorescence | Generally none in bulk at room temperature | Fluorescence is not a useful identification feature for ordinary polycrystalline silicon. |
Optical Behavior
Silicon’s optical personality changes sharply with wavelength: it looks opaque and mirror-gray in visible light, but polished silicon can transmit infrared beyond the visible edge.
Visible light
Bulk silicon strongly absorbs visible wavelengths and reflects from bright fracture faces, creating the metallic-looking silver-gray appearance.
Near-infrared edge
At wavelengths longer than the band-gap edge, silicon can become transmissive if the material is polished, sufficiently pure, and not too heavily doped.
High refractive index
Silicon’s high infrared refractive index makes it useful in lenses, windows, waveguides, and photonic structures, but it also encourages surface reflection.
Grain-boundary scattering
Polycrystalline material may scatter more than single-crystal material because grain boundaries, microcracks, and roughness interrupt clean transmission.
Under crossed polarizers, a perfect cubic grain should remain dark because silicon is optically isotropic. In real polycrystalline pieces, however, stress fields, inclusions, oxide skins, and rough boundaries may produce faint leakage, edge relief, or patchy contrast. These effects are not birefringence in the usual mineralogical sense; they are signs of imperfection, strain, and boundary structure.
Color, Surface Films, and Stability
Fresh polycrystalline silicon is usually silver-gray, steel-gray, or gunmetal. Fine particles and rough pieces can look darker because their surfaces scatter and absorb more light. Polished or freshly broken facets may flash like a dark mirror, while granular or etched pieces show a softer, frostier surface.
A thin native silicon dioxide layer forms readily on exposed silicon. Very thin oxide films are usually not obvious, but heat-grown or process-related films can produce subtle straw, blue, violet, or smoky interference colors. In wafer fragments, coatings and texturing may dominate the visible color more than the silicon itself.
- Doping: Heavy doping can darken the material, increase absorption, and alter electrical behavior.
- Defects: Dislocations, strain, inclusions, and grain boundaries can reduce optical clarity and add patchy reflectivity.
- Oxide films: Thin SiO2 layers may create muted interference tints, especially on processed or heated surfaces.
- Surface roughness: Etched and granular surfaces look more satin; smooth fracture faces and polished areas look more reflective.
Grain, Habit, and Common Textures
Polycrystalline silicon is best read as a record of growth and breakage: nucleation, grain competition, cooling, cutting, etching, and fracture all leave visible traces.
Fractured chunks
Broken polysilicon pieces often show sharp facets, shell-like conchoidal curves, and stepped planes that cross grain boundaries.
Granular material
Granular polysilicon appears as small rounded or angular particles with a massed silver-gray sparkle rather than broad mirror faces.
Multicrystalline wafers
Sawn wafer pieces may show grain mosaics, blue-gray coatings, surface texture, and straight process-related edges.
Columnar films
Thin-film poly-Si may grow in columnar grains. Cross-sections can reveal vertical grain structure and processing striations.
Etched pyramids and pits
Selective chemical etching can expose crystallographic planes, creating tiny pyramids, triangular pits, or terraced relief.
Oxide and coating skins
Native oxide, process oxides, passivation layers, and anti-reflective coatings can change surface color and reflectivity.
Identification and Look-Alikes
Polycrystalline silicon’s combination of hardness, low density for its metallic-looking surface, brittle conchoidal fracture, non-magnetic behavior, and gray metalloid luster helps separate it from common look-alikes.
| Material | Why it may be confused | Useful distinctions |
|---|---|---|
| Quartz | Quartz is hard, can be gray or glassy, and is part of the silica feedstock story. | Quartz is SiO2, commonly transparent to translucent, and lacks silicon’s silver-gray semiconductor luster. |
| Silicon carbide | SiC can be dark, reflective, and industrial-looking. | Silicon carbide is much harder, commonly more iridescent, and has a higher density near 3.2 g/cm³. |
| Hematite | Hematite can show metallic gray luster. | Hematite is much denser and gives a reddish streak; silicon is lighter and generally gray-streaked only with difficulty. |
| Galena | Galena has bright metallic faces. | Galena is very dense and shows cubic cleavage, unlike silicon’s lighter weight and shell-like fracture. |
| Industrial slag | Some slag is gray, glassy, metallic-looking, or fractured. | Slag often contains bubbles, flow textures, mixed colors, and irregular composition rather than crystalline silicon grain mosaics. |
| Graphite or carbon-rich material | Dark gray fragments can appear metallic or satin. | Graphite is much softer and marks paper easily; silicon is hard, brittle, and sharper when broken. |
Destructive tests are rarely necessary for prepared educational or display pieces. Weight, luster, fracture, hardness behavior, and known source context usually provide enough information for practical identification.
Why These Properties Matter
Polycrystalline silicon’s physical and optical properties are not only identification features; they explain why silicon became central to photovoltaics, microelectronics, infrared optics, and photonic devices.
Photovoltaics
Silicon’s band gap allows it to absorb much of the solar spectrum and convert light into electrical current. Grain boundaries in multicrystalline cells can influence carrier lifetime and efficiency.
Surface texturing
Etched pyramids and related microstructures reduce reflection and increase light trapping, especially on wafer surfaces used for solar cells.
Infrared optics
Polished silicon can transmit selected infrared wavelengths and has a high refractive index, making it useful for specialized lenses, windows, and sensing components.
Thin-film electronics
Poly-Si films are used where a controlled crystalline semiconductor layer is needed without requiring a full single-crystal wafer structure.
Observation and Photography
Polycrystalline silicon is best observed with directional light. A broad diffuse light reveals the overall form, while low raking light reveals steps, grain boundaries, terraced etch patterns, and the difference between mirror facets and satin surfaces.
- Use raking light: low side lighting shows conchoidal steps, saw marks, micro-pyramids, and grain-boundary relief.
- Rotate slowly: adjacent grains brighten and darken independently as the angle changes, revealing the polycrystalline mosaic.
- Use neutral backgrounds: matte gray, deep blue, or black backgrounds separate silver-gray silicon from glare.
- Show edges safely: edge views reveal thickness and fracture style, but thin wafer offcuts and shards should be supported.
- Avoid exaggerated contrast: overly harsh light can turn informative surface detail into blown-out white highlights.
Handling and Care
Finished silicon fragments are stable in ordinary indoor conditions. The main risks are mechanical rather than chemical: sharp edges, brittle fracture, fine chips, and dust generated by cutting or abrasion.
Sharp edges
Broken silicon can behave like flint or glass. Store shards so they cannot cut packaging, skin, or neighboring specimens.
No uncontrolled abrasion
Do not grind, saw, drill, or abrade silicon fragments outside proper technical controls. Finished pieces are far safer than dust or chips produced by machining.
Gentle cleaning
Use a clean microfiber cloth for fingerprints and a soft brush or air bulb for dust. Avoid aggressive household chemicals, especially on coated wafer pieces.
Wafer fragments
Thin wafers can snap easily and may have fragile coatings or textured surfaces. Store flat, separated, and away from abrasive grit.
Frequently Asked Questions
Is polycrystalline silicon a mineral?
No. Commercial polycrystalline silicon is a manufactured form of elemental silicon. Its raw material may begin as natural silica or quartz, but the finished material is industrially reduced, purified, deposited, cast, or processed.
Why does it look metallic if silicon is not a metal?
Silicon has a high refractive index and strongly absorbs visible light, so smooth faces reflect with a silver-gray, metallic-looking sheen. Chemically and electronically, however, it is a metalloid semiconductor.
Why does the surface look grainy or mosaic-like?
Each crystal grain reflects light from a different orientation. As the piece is tilted, neighboring grains brighten and darken independently, creating a patchwork or frosted effect.
Can light pass through silicon?
Visible light does not pass through ordinary bulk silicon, but polished silicon can transmit selected infrared wavelengths beyond the band-gap edge. Doping, thickness, defects, and surface finish strongly affect transmission.
What is the difference between silicon, silica, and silicone?
Silicon is the element Si. Silica is silicon dioxide, SiO2, found in quartz, sand, and many glasses. Silicone is a family of silicon-containing polymers used in sealants, flexible materials, cookware, and medical devices.
Is polycrystalline silicon safe to handle?
Finished pieces can be handled with ordinary care, but broken edges may be sharp. Avoid any activity that produces dust or chips, and keep thin shards or wafer fragments protected.
