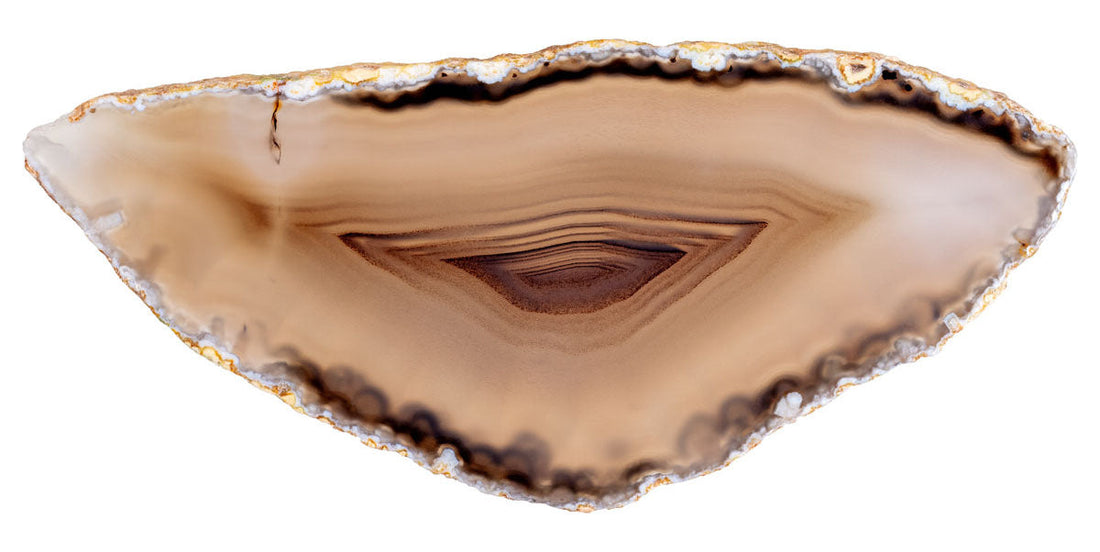

Agate: Formation, Geology & Varieties
How banded chalcedony grows from silica‑rich waters — and why it wears so many beautiful patterns 🌀
🧪 Formation in a Snapshot
- Make space: Cavities form in rock — gas bubbles in lava (vesicles), shrinkage cracks, fossils, or fractures.
- Make silica soup: Groundwater leaches silica (SiO2) from volcanic glass, ash, or siliceous sediments, becoming silica‑rich fluid/gel.
- Fill & layer: Silica precipitates as chalcedony (microcrystalline α‑quartz + moganite), often in rhythmic pulses that build bands.
- Finish & sparkle: Remaining space often lines with drusy quartz and accessory minerals (calcite, zeolites, iron oxides).
- Age gracefully: Over geologic time, moganite gradually transforms to quartz; colors deepen as iron compounds oxidize.
🗺️ Geologic Settings Where Agate Grows
1) Volcanic Vesicles (Basalt & Rhyolite)
The classic setting: silica‑rich fluids infiltrate gas bubbles in lava flows and tuffs. As fluids cool or chemically shift, chalcedony layers line the vesicle, often finishing with drusy quartz. These are the amygdaloidal agates found in basalt cliffs, rhyolitic plateaus, and the pebbles they shed to rivers and shores.
2) Hydrothermal Veins & Fracture Fillings
Silica‑bearing waters move along cracks to deposit banded chalcedony veins. Bands may be parallel to vein walls (“waterline”/onyx style). Vein agates can traverse multiple rock types, from volcanic to metamorphic terrains, and may host accessory calcite, zeolites, fluorites, or metal oxides.
3) Sedimentary & Diagenetic Replacements
In carbonate or siliceous sediments, groundwater can replace the original material with chalcedony, forming nodules of banded agate or chert. Famous “blue lace” styles and many fossil agates (wood, coral) reflect this replacement pathway — the original texture becomes a canvas for rhythmic silica deposition.
4) Weathering Horizons & Soil Profiles
As host rocks weather, tough agate nodules persist and concentrate in gravels, alluvium, tills, and beaches. Many sought‑after agates are actually travellers, carried far from their volcanic birthplaces by rivers or glaciers (which is why the best rockhounds own good boots).
⚗️ Silica Chemistry: From Fluid to Chalcedony
- Source of silica: Weathering of volcanic glass/ash, dissolution of opaline silica, and leaching of siliceous sediments.
- Transport: Silica travels in water as monosilicic acid (H4SiO4), with solubility increasing with temperature and pH.
- Trigger to precipitate: Cooling, evaporation, pH/Eh changes, or mixing with different waters push the solution past saturation.
- Gel → microcrystal: A silica gel forms, then reorganizes into fibrous chalcedony. Repeated pulses create bands with subtle differences in density, grain size, and inclusions.
🌀 Why Agate Bands & Patterns Differ
- Rhythmic influx: Seasonal or episodic pulses of silica‑rich fluid lay down successive layers.
- Diffusion/precipitation waves: Liesegang‑type banding can form as ions diffuse through gels and precipitate periodically.
- Wall control: Fortification bands mimic cavity outlines; waterline bands reflect level surfaces in calm, partially filled cavities.
- Shrink/heal cycles: Micro‑cracks open as gels shrink, then heal with new silica, adding delicate micro‑bands and “onion skin.”
- Inclusions & templates: Needles, tubes, or earlier minerals can template “tube,” “eye,” or “sagenitic” patterns as chalcedony coats them.
Result: nature’s calligraphy — similar physics, wildly personal handwriting.
🧩 Varieties of Agate (Field Guide)
Fortification Agate
Concentric, angular bands echoing the cavity outline. Cross‑sections look like topographic maps in color.
Waterline / Onyx / Sardonyx
Straight, parallel layers deposited on level surfaces. Classic black‑white (onyx) or brown‑white (sardonyx). Often used for cameos.
Lace (e.g., Crazy Lace)
Curly, frilled bands with tight spacing — the “paisley scarf” of agates. High contrast and intricate folding.
Moss & Dendritic
Clear chalcedony hosting manganese/iron oxide branches that look like moss or ferns. Not plants — just mineral art.
Plume / Flame
Feathery to flame‑like inclusions rising through clear bands. Caused by mineral growth during silica deposition.
Eye Agate
Rounded “eyes” — concentric rings around point nucleations. Often found in fortification agates with localized circular banding.
Tube & Hollow Tube
Parallel or radiating tubes (sometimes hollow then quartz‑lined). Form along escape channels or around tiny fibers/needles.
Sagenitic Agate
Agate hosting acicular (needle‑like) crystals (e.g., goethite, rutile) that intersect bands with striking geometry.
Iris Agate
When thin‑sliced ⟂ to banding and backlit, ultra‑fine bands diffract light into rainbows (a natural diffraction grating).
Fire Agate
Botryoidal chalcedony over ultra‑thin iron‑oxide films gives shimmering “flame” iridescence via thin‑film interference.
Enhydro Agate
Contains trapped water bubbles; tip and watch the bubble move. (Keep cool — heat can rupture the cavity.)
Polyhedroid & Oddities
Rare flat‑faced “polyhedroid” forms and locality‑named types (Laguna, Botswana, Lake Superior, Condor) showcase regional styles.
📊 Variety–Environment Matrix
| Setting / Host | Common Varieties | Clues & Associates | Field Hints |
|---|---|---|---|
| Basalt vesicles (amygdales) | Fortification, eye, tube, iris (if finely banded) | Drusy quartz cores; zeolites, calcite; iron‑oxide stains | Look in weathered basalt flows, talus, beach gravels downstream |
| Rhyolite/tuff cavities | Lace, fortification, sagenitic | Flow‑banded rhyolite host; brecciated zones | Search fractures and flow‑tops; thin slabs reveal intricate lace |
| Hydrothermal veins | Waterline/onyx, sardonyx, plume | Parallel bands; calcite/fluorite/zeolite companions | Trace veins along ridge cuts and old road exposures |
| Carbonate replacements | Blue lace, fortification nodules, moss/dendritic | Dolostone/limestone host; vugs with chalcedony & quartz | Check benches in quarries; nodules weather free on slopes |
| Hot‑spring/low‑T hydrothermal | Fire agate, botryoidal chalcedony | Iron‑oxide films (goethite/limonite); layered botryoids | Look near ancient spring deposits and silicified breccias |
| Alluvial / glacial gravels | Transported mix (e.g., Lake‑shore agates) | Rounded rinds; impact bruises; matte exteriors | Wet stones to preview banding; search after storms or thaw |
Matrix = map: it won’t show every treasure, but it points you to the neighborhood.
🌊 From Lava to Pebble: Transport & Exposure
After formation, agate nodules outlast their hosts. Basalt rots; agate rolls. Rivers, waves, and glaciers round nodules into beach stones and gravel bar prizes. Many famous agates were found far from their volcanic birthplaces thanks to ancient ice and water highways.
- Rinds: Weathered exteriors can hide spectacular interiors — a trim slab or window cut is the great reveal.
- Orientation: Cutting parallel to bands emphasizes “waterline”; across bands emphasizes fortification “targets.”
- Druse: Hollow centers with tiny quartz crystals sparkle in slices and geode halves.
🧭 Field Notes, ID Tips & Ethics
Spotting Agate
- Waxy to vitreous look on a fresh chip; conchoidal fracture.
- Translucent edges; band hints under a dampened rind.
- Heft ~2.6 g/cm³ — “medium” weight for its size.
Lookalikes
- Banded calcite (“onyx marble”): Softer (Mohs ~3), reacts with acid.
- Glass/resin: Too light, bubble swirls, lacks true micro‑banding.
- Jasper: Opaque micro‑granular silica; no translucent banding.
Enhancements
- Dyes/sugar‑acid treatments intensify bands (especially blacks/reds).
- Very bright, even neon colors often indicate dye; color collects in pores/cracks.
Ethical Collecting
- Respect land access rules; many sites are protected or permit‑only.
- Fill small holes, pack out scraps, and share accurate locality info responsibly.
❓ FAQ
Is all banded chalcedony called agate?
In gemology, yes — agate = banded chalcedony. “Onyx” is a straight‑banded agate; “sardonyx” is brown‑white banded. Trade names can vary by region.
Why do some agates show rainbows?
In iris agate, extremely fine bands diffract light when thin‑sliced and backlit. In fire agate, thin iron‑oxide films cause iridescence by interference.
Can agate form outside volcanic rocks?
Yes. Many agates form in sedimentary settings (replacing carbonates or fossils) or in hydrothermal veins. Volcanic vesicles are common, not exclusive.
What controls the color changes between bands?
Subtle shifts in impurity content (iron, manganese, carbon), grain size, water chemistry, and oxidation state during each deposition pulse paint the palette.
✨ The Takeaway
Agate is a story in layers: cavities become canvases; silica gels turn to chalcedony; chemistry and time write bands like lines of music. Different geologic “studios” — vesicles, veins, replacements — produce distinct styles (fortification, waterline, lace, moss, plume, iris, fire). Learn the settings, and you’ll start reading the landscape the way you read the bands: patiently, one layer at a time.
Final wink: If you catch yourself turning a pebble in the sun for ten minutes straight, congratulations — you’ve been successfully enrolled in Nature’s slow‑art appreciation course. 😄
