Zoisite: Structure, Pleochroic Color, Metamorphic Geology, and Care
Zoisite is one mineral species expressed through several very different visual identities. It can form gray, yellow, brown, green, pink, blue, or violet crystals; dense rose-colored thulite; and the green matrix of ruby-bearing anyolite. Its most famous gem variety, tanzanite, transforms orientation into color: one crystal direction may appear deep blue, another violet, and a third yellow-green or brownish in unheated material. That color architecture belongs to an orthorhombic sorosilicate built from isolated SiO₄ tetrahedra, paired Si₂O₇ groups, aluminum-centered polyhedra, calcium sites, and structural hydroxyl. The same mineral also records a wide metamorphic range, from calc-silicate rocks and skarns to amphibolite, eclogite, and high-pressure subduction environments. This guide brings together zoisite’s identity, crystal chemistry, color, varieties, geology, optical behavior, assessment, treatment, lapidary use, history, and conservation.
Quick Facts
Zoisite is best understood as one orthorhombic mineral species with several mineralogical, gemological, and rock-level expressions. A transparent tanzanite crystal, a granular thulite carving, and a ruby-in-zoisite slab do not behave identically even though zoisite is central to each.
Identity, Classification, and Name
Zoisite is a calcium-aluminum sorosilicate with ideal formula Ca₂Al₃(SiO₄)(Si₂O₇)O(OH). The structure contains both isolated silicate tetrahedra and paired Si₂O₇ groups, linked through aluminum-centered polyhedra and calcium sites. That architecture places zoisite among the epidote-related sorosilicates, but its orthorhombic symmetry distinguishes it from monoclinic clinozoisite and most epidote-supergroup minerals.
Zoisite and clinozoisite are polymorphs: they share the same ideal chemical formula while arranging their atoms differently. Zoisite crystallizes in the orthorhombic system; clinozoisite is monoclinic. Iron substitution can move natural compositions toward epidote-group chemistry, but an olive or pistachio color alone is not enough to decide whether a specimen is zoisite, clinozoisite, or epidote.
The mineral was first known as saualpite, after the Saualpe region of Carinthia, Austria. Abraham Gottlob Werner introduced the name zoisite in 1805 to honor the Slovenian naturalist and mineral collector Sigmund Zois. The standardized IMA mineral symbol is Zo.
Several celebrated names sit beneath the zoisite identity. Tanzanite is transparent blue-to-violet vanadium-bearing zoisite, chiefly from the Merelani mining district of Tanzania. Thulite is pink to rose, commonly massive zoisite colored largely by manganese. Anyolite, often sold as ruby-in-zoisite, is not a single mineral variety: it is a decorative metamorphic rock containing green zoisite, red corundum, and usually dark amphibole or related matrix minerals.
A distinct mineral species
Zoisite is defined by structure and composition, not by one color. Transparent blue, massive pink, pale green, yellow-brown, and colorless material can all belong to the same species.
An orthorhombic polymorph
Zoisite shares its ideal formula with clinozoisite but not its atomic arrangement. The two minerals therefore require structural or optical evidence when morphology and color overlap.
Variety names
Tanzanite and thulite are descriptive gem and ornamental varieties of zoisite. Their names communicate color, transparency, and traditional use rather than separate species status.
Rock names versus mineral names
Anyolite contains several minerals. A polished slab may show green zoisite, red ruby, black amphibole, pale feldspar or calcite, and secondary fractures in one object.
Historical name
Saualpite preserves the mineral’s connection with the Austrian type region. It is historically informative but should not replace the accepted species name on a modern label.
Color-based uncertainty
Names such as “green tanzanite,” “pink tanzanite,” or “ruby zoisite crystal” can blur mineral and trade categories. Green or pink material is better described directly as green zoisite or pink zoisite unless it meets the conventional meaning of tanzanite.
| Classification level | Zoisite placement | Why it matters |
|---|---|---|
| Silicate class | Sorosilicate containing isolated SiO₄ and paired Si₂O₇ groups | Explains the characteristic formula and differentiates zoisite from framework, chain, sheet, and ring silicates. |
| Structural relationship | Orthorhombic relative of epidote-group minerals | Connects zoisite with clinozoisite and epidote while preserving its distinct symmetry. |
| Polymorph | Clinozoisite | Same ideal composition, different crystal structure and optical orientation. |
| Crystal system | Orthorhombic | Controls its three unequal crystallographic axes and biaxial optical behavior. |
| Space group | Pnma | Describes the repeating symmetry used in crystallographic refinements. |
| Mineral symbol | Zo | Provides a standardized abbreviation for petrological diagrams, tables, and specimen records. |
| Gem variety | Tanzanite | Transparent blue-to-violet vanadium-bearing zoisite, generally heat treated and geographically associated with northern Tanzania. |
| Ornamental variety | Thulite | Pink to rose, commonly massive manganese-bearing zoisite used in cabochons, beads, carvings, and decorative stonework. |
| Composite rock | Anyolite or ruby-in-zoisite | Contains zoisite with ruby and dark matrix minerals; its properties cannot be represented by zoisite data alone. |
Crystal Structure and Chemistry
Zoisite’s color variety rests on a stable calcium-aluminum silicate framework. Trace elements can occupy selected sites without changing the essential species, while the arrangement of isolated tetrahedra, paired tetrahedra, aluminum polyhedra, calcium, oxygen, and hydroxyl produces its orthorhombic symmetry and strong directional properties.
- 1. Isolated tetrahedronOne SiO₄ group occurs as a discrete silicate unit within the formula.
- 2. Paired tetrahedraTwo tetrahedra share one oxygen to form the Si₂O₇ sorosilicate group.
- 3. Aluminum polyhedraAluminum occupies several coordinated sites that link the silicate groups into a strong three-dimensional structure.
- 4. Calcium sitesCalcium occupies larger structural positions and connects silicate-aluminum units across the lattice.
- 5. HydroxylThe OH group is part of the ideal formula and makes zoisite a hydrous mineral rather than a zeolite-like channel-water mineral.
- 6. Trace substitutionsV, Cr, Mn, Fe, and other elements can substitute in small amounts and dramatically change color and spectroscopy.
- 7. Orthorhombic orderThe arrangement repeats with three unequal perpendicular crystallographic axes.
- 8. Directional weaknessThe same ordered structure that produces optical directionality also permits a prominent cleavage plane.
Formula interpreted
Two calcium atoms, three aluminum atoms, one isolated SiO₄ group, one paired Si₂O₇ group, an additional oxygen, and one hydroxyl unit form the ideal species.
Polymorphism
Zoisite and clinozoisite show how identical ideal chemistry can adopt different structural symmetry. This is why chemistry alone may not distinguish them.
Chromophore sites
Small amounts of vanadium, chromium, manganese, or iron enter selected aluminum-related sites and modify which wavelengths of light the crystal absorbs.
Hydroxyl and deep Earth water
Because hydroxyl is structurally bound, zoisite can carry hydrogen into high-pressure metamorphic environments and participate in water transfer within subduction zones.
Composition varies naturally
Iron, manganese, chromium, vanadium, magnesium, and other minor elements differ among localities and growth zones. Published property ranges therefore overlap rather than forming one fixed number.
Structure controls cleavage
Bonding is not equally strong in every direction. The prominent {010} cleavage can split transparent crystals even when the polished surface appears flawless.
| Formula component | Structural role | Interpretive significance |
|---|---|---|
| Ca₂ | Occupies relatively large coordinated sites between silicate and aluminum units. | Reflects formation in calcium-rich metamorphic environments. |
| Al₃ | Occupies several polyhedral sites that link the sorosilicate units. | Provides substitution sites for Fe, Mn, Cr, and V. |
| SiO₄ | One isolated tetrahedral group. | Helps define zoisite as a sorosilicate rather than a single-chain or framework silicate. |
| Si₂O₇ | A paired tetrahedral group sharing one oxygen. | The defining structural motif of the sorosilicate class. |
| O and OH | Complete the aluminum coordination and incorporate structurally bound hydrogen. | Important to thermal behavior, infrared spectra, and high-pressure metamorphic reactions. |
| V and Cr | Trace substitutions in octahedral sites. | Central to blue-violet, blue-green, and some pink transparent colors. |
| Mn | Trace to minor substitution, commonly as Mn³⁺ in pink material. | Produces the rose and pink color associated with thulite. |
| Fe | Substitutes for aluminum in variable oxidation states. | Can introduce yellow, brown, green, and darker components and link compositions toward epidote-related chemistry. |
Color, Pleochroism, and Heat Treatment
Zoisite is naturally capable of a wide palette because its aluminum sites accept small amounts of transition metals. In transparent gem material, color is generated by selective absorption within the crystal lattice. In massive ornamental material, grain boundaries, inclusions, associated minerals, and surface alteration contribute additional effects.
Vanadium is the principal chromophore of blue-to-violet tanzanite. Depending on crystal orientation and treatment state, an unheated crystal can show blue, violet, brownish, bronze, yellow-green, or greenish directions. Controlled heating suppresses much of the yellow-green or brown component and leaves the blue and violet directions visually dominant.
Manganese, especially Mn³⁺ in suitable structural sites, is responsible for much of thulite’s pink-to-rose color. Chromium and vanadium can contribute green, blue-green, pink, or violet effects in transparent material, while iron often contributes yellow, brown, olive, and darker tones.
Heat treatment is routine for tanzanite. It does not coat the stone or introduce dye; it changes the electronic environment and oxidation state balance of trace elements already present. The resulting color is generally stable under ordinary wear, although the stone itself remains vulnerable to thermal shock and high-temperature repair.
Blue-violet tanzanite
Vanadium-bearing transparent zoisite viewed along favorable crystallographic directions. Most commercial stones are heated to reduce yellow-green or brown components.
Violet and purple
Violet may dominate one pleochroic direction even when another direction appears blue. Cut orientation and lighting determine which balance appears face-up.
Pink and rose
Massive pink zoisite is traditionally called thulite. Transparent pink crystals also occur and may involve manganese, vanadium, chromium, or a combination of trace elements.

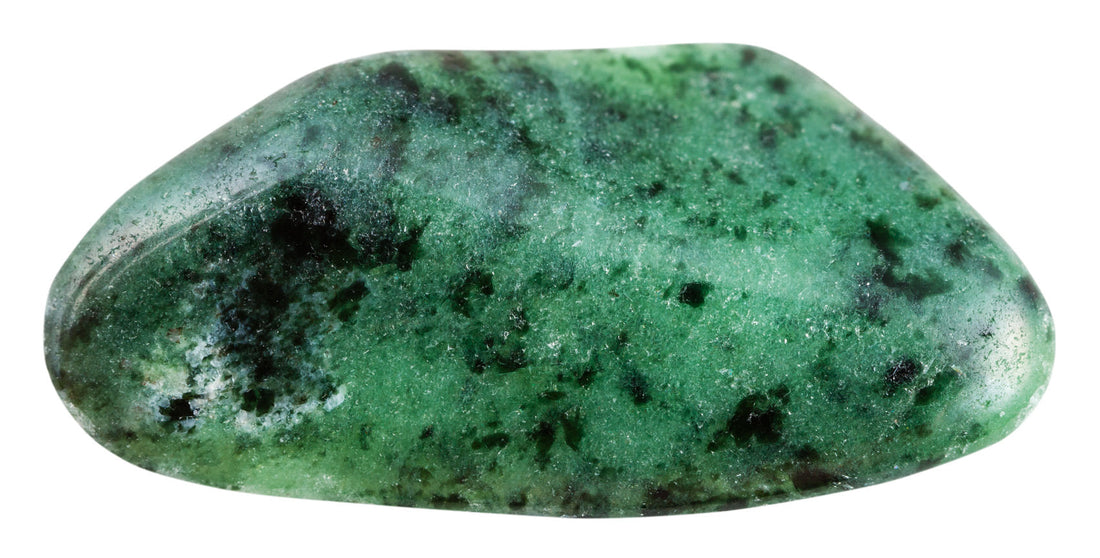

Green zoisite
Green material ranges from pale pistachio to vivid chrome-like hues. Color can arise from chromium, vanadium, iron, inclusions, or the optical influence of surrounding matrix.
Yellow, honey, and brown
Iron and vanadium-related absorption, growth zoning, and unheated treatment state can produce straw, bronze, golden, olive-brown, or reddish-brown crystals.
Gray, black, and included material
Graphite, amphibole, iron minerals, grain boundaries, and dark host rock can reduce transparency or create dramatic contrasts without changing the zoisite grains themselves.
| Appearance | Likely controls | Interpretive caution |
|---|---|---|
| Deep blue to blue-violet | Vanadium-bearing transparent zoisite, usually heat treated and cut to favor blue or violet axes. | Color alone cannot prove Merelani origin or treatment state. |
| Brownish, bronze, yellow-green, and blue-violet in one crystal | Strong trichroism in unheated or incompletely heated vanadium-bearing material. | A single photograph can conceal the other directions. |
| Pink to rose massive material | Manganese-bearing zoisite, commonly fine grained and mixed with quartz, calcite, amphibole, or feldspar. | Pink color alone does not distinguish thulite from rhodonite, calcite, or dyed material. |
| Bright green with ruby | Green zoisite in anyolite, commonly with chromium-bearing corundum and dark amphibole. | The polished object is a composite rock, not pure green zoisite. |
| Pale green to gray-green transparent crystal | Cr, V, Fe, or mixed trace chemistry. | Can overlap visually with diopside, epidote, clinozoisite, and tourmaline. |
| Patchy or zoned color | Changes in trace-element concentration during growth, partial heat response, fractures, inclusions, or mixed grains. | Zoning is natural evidence and should not be polished away merely to create uniformity. |
Why the same stone changes under light and rotation
Color should be described under controlled illumination and from more than one direction. Tanzanite’s visual identity is inseparable from its biaxial, direction-dependent absorption.
- Neutral daylight-equivalent lightProvides a balanced basis for recording blue, violet, gray, brown, and green components.
- Warm illuminationOften strengthens violet, plum, or red-violet impressions and can make a blue stone appear more purple.
- Cool illuminationCan emphasize blue and suppress warm body-color components.
- RotationChanges which crystallographic absorption direction dominates the path of light through the stone.
- Stone thicknessGreater optical path length deepens tone and may make a saturated stone appear nearly black.
- Cut orientationDetermines whether the face-up view favors blue, violet, or a mixed color and how much weight must be sacrificed.
- BacklightingReveals zoning, cleavage feathers, included graphite, and pale areas concealed by a dark background.
- Image processingWhite-balance changes and saturation can erase the distinction between blue and violet or conceal brown-green directions.
Formation and Geological Setting
Zoisite forms where calcium-rich and aluminum-rich rocks react during metamorphism. It occurs in regional metamorphic belts, contact aureoles, skarns, calc-silicate rocks, marbles, amphibolites, eclogites, schists, and gneisses. The mineral may crystallize from solid-state reactions, metasomatic fluids, or a combination of deformation, heat, pressure, and fluid flow.
Its stability covers a wide pressure-temperature range. In some subduction-zone rocks, zoisite is a major hydrous mineral capable of carrying structurally bound water to considerable depth. In lower-pressure calc-silicate settings, it can form coarse prismatic crystals in reaction zones and veins where calcium, aluminum, silica, and water become available together.
The Merelani tanzanite deposit is unusually localized. Gem zoisite occurs in a complex belt of graphite-bearing gneiss, schist, and calc-silicate rock affected by folding, faulting, fluid flow, and repeated metamorphic reactions. Vanadium-bearing fluids and host-rock chemistry combined within narrow zones, making transparent blue-violet material geographically restricted even though ordinary zoisite is widespread.
Thulite generally develops in manganese-bearing metamorphic or metasomatic rocks, commonly as fine-grained pink masses rather than free crystals. Anyolite forms where ruby-bearing metamorphic rock and green zoisite-rich calc-silicate material coexist, producing a durable but strongly heterogeneous ornamental rock.
Calcium- and aluminum-bearing rocks are assembled
Limestone, marl, basaltic material, pelitic sediment, feldspathic rock, or earlier metamorphic assemblages supply the necessary elements in different proportions.
Burial, intrusion, or tectonic collision raises pressure and temperature
Regional metamorphism, contact heating, or subduction destabilizes earlier minerals and opens new reaction pathways.
Fluids move along fractures and reaction boundaries
Water transports silica, calcium, aluminum, vanadium, manganese, chromium, iron, and other components through permeable zones.
Zoisite becomes stable
Within an appropriate pressure-temperature-composition field, calcium-aluminum silicates reorganize into the orthorhombic zoisite structure.
Trace elements enter growing crystals
Vanadium, chromium, manganese, and iron substitute in small amounts, creating color zones that can differ sharply within one crystal or rock mass.
Open space controls crystal form
Fractures and pockets permit prismatic or bladed crystals, whereas confined reaction zones produce granular, fibrous, or massive aggregates.
Later deformation modifies the material
Folding, shearing, uplift, retrograde fluids, and brittle fracturing can bend zones, open cleavage, introduce inclusions, or replace parts of the original assemblage.
Erosion and mining expose the deposit
Weathering, quarrying, underground excavation, and stream erosion reveal crystals and ornamental rock while potentially separating them from their geological context.
Eclogite
Zoisite may occur with garnet, omphacite, kyanite, rutile, and quartz in high-pressure metamorphic rocks. Its OH group makes it significant in deep water transport.
Calc-silicate and Merelani reaction zones
Calcium-rich layers, graphite-bearing gneiss, deformation, and vanadium-bearing fluids created the highly localized environment of tanzanite.
Manganese-bearing metamorphic rock
Thulite develops where manganese substitutes into zoisite during regional or contact metamorphism and metasomatic alteration.
Ruby-bearing zoisite rock
Anyolite records interaction among corundum-bearing, calcium-rich, and amphibole-bearing assemblages. Its visible pattern is a geological reaction map.
Marble and skarn
Contact metamorphism and fluid exchange around carbonate rocks can produce zoisite with diopside, grossular, vesuvianite, calcite, quartz, and amphibole.
Amphibolite, schist, and gneiss
Zoisite can replace plagioclase or occur in metamorphic reaction bands with hornblende, mica, quartz, garnet, and feldspar.
| Geological setting | Representative associates | Typical zoisite expression | Interpretive value |
|---|---|---|---|
| High-pressure eclogite | Garnet, omphacite, kyanite, rutile, quartz, amphibole | Prismatic grains, reaction rims, inclusions, and aligned metamorphic crystals | Records subduction, fluid storage, and high-pressure mineral reactions. |
| Amphibolite and gneiss | Hornblende, plagioclase, quartz, garnet, mica | Granular, columnar, vein-like, or replacement aggregates | Reveals regional metamorphism and breakdown of calcium-rich feldspar. |
| Marble and calc-silicate rock | Calcite, diopside, grossular, vesuvianite, scapolite, quartz | Coarse crystals, massive zones, and reaction bands | Shows fluid-assisted exchange between carbonate and silicate layers. |
| Skarn and contact aureole | Garnet, pyroxene, amphibole, epidote, calcite, sulfides | Prismatic or granular crystals within mineralized reaction zones | Records heat and metasomatism around an intrusion. |
| Merelani graphite-bearing belt | Graphite, diopside, grossular, quartz, feldspar, kyanite, prehnite, calcite | Transparent vanadium-bearing crystals in narrow structural and reaction zones | Explains the exceptional geographic restriction of tanzanite. |
| Manganese-rich metamorphic rock | Quartz, calcite, rhodonite, amphibole, feldspar, manganese oxides | Fine-grained pink to rose thulite | Connects color with manganese availability and aggregate texture. |
| Longido ruby-bearing calc-silicate rock | Ruby, amphibole, feldspar, calcite, mica, secondary veins | Green zoisite matrix with red corundum and dark contrasting minerals | Preserves a multi-mineral metamorphic and metasomatic history. |
Zoisite is a mineral of reaction boundaries: between carbonate and silicate, pressure and hydration, host rock and fluid, trace chemistry and crystal structure.
Crystal Habits and Texture Vocabulary
Zoisite appears at two very different visual scales. Transparent crystals show prismatic form, lengthwise striation, cleavage, zoning, and directional color. Massive thulite and anyolite reveal interlocking grains, metamorphic bands, veins, and multi-mineral pattern instead of clear external faces.
Elongated orthorhombic form
Free crystals are commonly long or stout prisms, sometimes flattened, with unevenly developed faces and prominent lengthwise striation.
Flattened growth
Crystals may develop as plates or blades whose broad faces reveal vitreous luster, zoning, inclusions, and the direction of perfect cleavage.
Parallel crystal bundles
Closely intergrown prisms form coarse columns in metamorphic reaction zones and veins. Individual boundaries may remain visible after polishing.
Interlocking grains
Many metamorphic rocks contain subhedral zoisite grains rather than free crystals. Grain boundaries influence translucency, toughness, and polish.
Pink ornamental material
Fine-grained manganese-bearing zoisite forms rose, salmon, and reddish masses crossed by quartz, calcite, amphibole, or darker manganese minerals.
Ruby in green zoisite
Red corundum crystals or irregular masses sit within green zoisite and dark amphibole, producing a strongly contrasting metamorphic rock.
Directional and growth zoning
Transparent crystals may contain blue, violet, green, yellow, brown, pink, or colorless regions reflecting changing trace chemistry during growth.
Flat internal break
Natural or cut fragments may expose pearly cleavage surfaces whose geometry differs from irregular fracture or polished facet planes.
Vitreous growth faces
Clean crystal faces reflect sharply. Etching, weathering, surface-reaching feathers, and graphite films can soften or interrupt the luster.
Pearly cleavage
A fresh cleavage surface often shows a broad pearl-like reflection. This is a structural surface rather than evidence of coating or polishing.
Waxy massive polish
Fine-grained thulite can polish from softly waxy to vitreous depending on grain size, quartz content, fractures, and finishing method.
Composite relief
Anyolite commonly develops differential polish because ruby, zoisite, amphibole, calcite, and feldspar respond differently to abrasives.
Natural zoning
Growth bands may cross the crystal at angles unrelated to later facets. They can preserve fluid and chemical history even when they reduce face-up color uniformity.
Fracture networks
Cleavage, tectonic strain, uplift, mining, and cutting create different fracture patterns. Their orientation and fill help distinguish geological from modern damage.
Physical and Crystallographic Properties
| Property | Typical expression | Practical significance |
|---|---|---|
| Ideal formula | Ca₂Al₃(SiO₄)(Si₂O₇)O(OH) | Defines a hydrous calcium-aluminum sorosilicate capable of trace-element substitution. |
| Crystal system | Orthorhombic | Produces three unequal perpendicular axes and biaxial optical behavior. |
| Crystal class | mmm | Describes the ideal point symmetry of the species. |
| Space group | Pnma | Used in structural refinements and comparison with clinozoisite. |
| Habit | Prismatic, bladed, columnar, granular, fibrous, and massive | Explains the contrast between faceted tanzanite, carved thulite, and anyolite rock. |
| Hardness | Approximately Mohs 6–7, often cited near 6–6.5 for gem material | Offers moderate scratch resistance but remains vulnerable to quartz dust and harder jewelry materials. |
| Tenacity | Brittle | Crystals chip or split rather than bend under impact. |
| Cleavage | Perfect on {010}; additional imperfect cleavage may occur | The principal durability concern in faceted tanzanite and transparent crystals. |
| Fracture | Uneven, conchoidal, or splintery outside cleavage | Broken edges can reveal internal inclusions, zoning, and mixed mineral texture. |
| Density | Approximately 3.15–3.36 g/cm³ | Heavier than quartz and iolite, lighter than corundum; mixed ornamental rock may differ. |
| Color | Colorless, white, gray, yellow, brown, green, pink, red, blue, and violet | Color is controlled by trace chemistry, orientation, inclusions, treatment, and associated minerals. |
| Streak | White | Streak testing is destructive and inappropriate for finished specimens. |
| Luster | Vitreous; pearly on cleavage; waxy to vitreous when massive and polished | Luster varies by surface type and aggregate texture. |
| Transparency | Transparent to translucent; massive aggregates may appear opaque | Grain boundaries and inclusions strongly affect apparent body color and suitable use. |
| Heat response | Trace-element color can change under controlled heating; strong heat risks cleavage and thermal shock | Routine gem treatment and conservation risk must be considered separately. |
| Acid behavior | Silicate structure may be etched or altered by strong acids; associated calcite reacts more readily | Acid cleaning cannot safely distinguish zoisite from look-alikes in a finished object. |
| Typical treatments | Heating of tanzanite; occasional coating, fracture filling, dye, or impregnation in ornamental material | Treatment should be recorded because it affects care and interpretation. |
| Jewelry durability | Moderate surface durability with fair-to-poor resistance to sharp impact | Protective settings are preferable, especially for rings and large faceted stones. |
Harder than it is tough
A polished facet can resist everyday abrasion reasonably well, yet one impact aligned with cleavage can split the stone abruptly.
Direction matters
Cleavage, pleochroism, optical axes, striation, and crystal elongation all express structural directionality. Cutting orientation is therefore both aesthetic and mechanical.
Massive material behaves differently
Interlocking thulite grains can distribute force more effectively than a large single crystal, although fractures and pale veins may remain weak.
Anyolite has several hardnesses
Ruby is much harder than zoisite, while amphibole, calcite, feldspar, mica, and fractures may polish or wear differently within one piece.
Density is supportive evidence
Specific gravity can help distinguish zoisite from iolite, quartz, glass, and corundum, but inclusions, settings, and composite rock affect the result.
Surface tests destroy evidence
Scratch, streak, hot-point, and acid tests damage polish, may sample the wrong mineral, and provide weaker evidence than optical or spectroscopic methods.
Optical Character and Tanzanite Pleochroism
Zoisite is biaxial positive. Its three principal optical directions can absorb light differently, producing pleochroism. In tanzanite this effect is so strong that orientation becomes part of the gem’s identity: a cutter is not merely shaping a blue stone but choosing which directional colors will dominate.
- 1. Three principal directionsOrthorhombic zoisite has three unequal optical vibration directions that can transmit different colors.
- 2. Biaxial positive characterThe optical sign and optic-axis geometry support laboratory identification.
- 3. Strong tanzanite pleochroismBlue, violet, and a warmer yellow-green, brown, or bronze direction may be visible in untreated material.
- 4. Heat-modified balanceHeating reduces the warm component and commonly makes a stone appear predominantly blue and violet.
- 5. Cut orientationFaceting positions the table relative to the crystal axes to favor color, yield, brilliance, or a chosen blue-violet balance.
- 6. Thickness and toneA thicker stone deepens absorption and can improve saturation or make the gem overly dark.
- 7. Mixed-light appearanceWarm and cool sources alter the relative visual strength of violet and blue.
- 8. Massive materialRandomly oriented grains in thulite and anyolite average out most directional color at normal viewing scale.
| Optical property | Typical data | Interpretation |
|---|---|---|
| Optical character | Biaxial positive | Consistent with orthorhombic symmetry and useful in oriented grains or crystals. |
| Refractive indices | Approximately 1.69–1.72, composition dependent | Higher than quartz and iolite, lower than many sapphires and some spinels. |
| Birefringence | Commonly low to moderate, approximately 0.006–0.018 | Can produce measurable double refraction but usually not dramatic facet doubling. |
| Pleochroism | Weak to very strong | Tanzanite is among the most visibly pleochroic commercial gems. |
| Unheated tanzanite directions | Blue, violet, and yellow-green, bronze, or brownish | The exact palette varies with vanadium, chromium, iron, orientation, and natural thermal history. |
| Heated tanzanite directions | Blue and violet dominate; warm component strongly reduced | The stone remains structurally trichroic even when only two colors are obvious to the eye. |
| Dispersion | Moderate and visually secondary to body color | Faceting emphasizes saturation and brightness more than rainbow fire. |
| Fluorescence | Usually inert to weak and variable | Not a dependable stand-alone identification feature. |
| Transparency | Transparent to translucent in crystals; opaque in many aggregates | Backlighting is useful for zoning, inclusions, and fracture filling. |
Blue is directional
A stone may look blue through one face and violet through another because the crystal absorbs light differently along its axes.
Trichroic does not mean three colors at once
The three directional colors are measured through different orientations. A mounted gem normally presents a blended face-up view.
Heat changes balance, not identity
Heating modifies trace-element absorption but leaves the mineral species zoisite. It does not turn glass, quartz, or another gem into tanzanite.
Massive grains average direction
In thulite and anyolite, many tiny grains point in different directions, so strong single-crystal pleochroism is usually not visible across the polished rock.
Dichroscope evidence
A dichroscope can separate directional colors in transparent material, supporting identification and revealing whether blue or violet dominates.
Color change versus pleochroism
Pleochroism changes with viewing direction; a true color-change effect depends primarily on the spectral distribution of the light source. The two phenomena should not be confused.
Under Magnification
Magnification reveals whether a transparent stone is naturally included, cleavage-fractured, coated, filled, abraded, or assembled. In massive material it separates zoisite grains from ruby, amphibole, quartz, calcite, feldspar, dye, and polymer.
Non-destructive examination sequence
Use neutral reflected light first, then low-angle illumination, transmitted light, a dichroscope where appropriate, and ultraviolet comparison only after the visible structure has been mapped.
- Establish the object typeDecide whether the material is a single transparent crystal, massive thulite, anyolite, a composite, or a mounted gem before interpreting tests.
- Map color directionRotate transparent material and compare blue, violet, green, yellow, or brown components.
- Follow cleavageLook for flat reflective feathers or planar breaks aligned through the stone.
- Inspect facet junctionsRounded edges, abrasion, polishing drag, and coating wear reveal use and treatment.
- Examine inclusionsGraphite, zircon, fluid inclusions, needles, crystals, and healed fissures can support natural origin and geological context.
- Check surface-reaching fracturesGlossy residue, bubbles, color concentration, or different ultraviolet response may indicate filling.
- Compare mineral phasesIn anyolite, ruby, zoisite, amphibole, calcite, and feldspar should have distinct textures and relief.
- Record before cleaning or resettingPhotograph the face, back, girdle, drill holes, joins, and suspicious regions while the evidence remains unchanged.
Graphite inclusions
Merelani material may contain dark flakes, plates, or clouds of graphite associated with the host rocks. Their shape and distribution differ from black surface paint.
Zircon and tension features
Small zircon crystals can produce strain halos or fractures. Internal stress features should be distinguished from modern impact damage.
Fluid and mineral inclusions
Needles, crystals, negative cavities, and healed fissures preserve growth conditions but may reduce clarity or create cleavage-sensitive zones.
Anyolite phase boundaries
Ruby commonly appears red and harder; amphibole appears dark and may be fibrous or granular; zoisite forms the green matrix. Natural contacts are irregular and intergrown.
Thulite grain texture
Fine pink grains, pale veins, manganese-rich spots, and quartz or calcite domains create an uneven mosaic rather than one perfectly uniform color field.
Treatment clues
Coatings may wear at facet edges; fillers may collect in fractures; dye may concentrate in pores and drill holes; assembled pieces may show straight joins or adhesive menisci.
Varieties, Colors, and Trade Terms
Zoisite variety names work best when they communicate a real combination of color, transparency, mineralogy, and history. They become misleading when extended to every unusual hue or used to disguise a multi-mineral rock as a single gem.
Tanzanite
Transparent blue-to-violet vanadium-bearing zoisite from the Merelani mining district. Most cut stones have been heated to suppress yellow-green or brown directions.
Thulite
Pink, rose, salmon, or reddish massive zoisite associated chiefly with manganese. The name refers to the classical northern region of Thule and is historically linked with Norway.
Green zoisite
Natural green material may be transparent, translucent, granular, or massive. Chromium, vanadium, iron, inclusions, and matrix can all contribute.
Anyolite
A rock composed principally of green zoisite with ruby and dark amphibole. It is commonly fashioned into cabochons, carvings, beads, and decorative slabs.
Transparent pink and violet zoisite
Rare crystals can show pink, magenta, violet, or mixed colors without fitting the conventional blue-violet tanzanite category.
Yellow and brown zoisite
Transparent to translucent crystals may be straw, honey, olive-brown, reddish brown, or bronze, sometimes representing unheated gem material.
Gray, white, and colorless zoisite
Low-chromophore material occurs in metamorphic rocks and may be more important petrologically than gemologically.
Chrome-bearing ornamental material
Bright green color may lead to broad trade expressions, but laboratory identification should distinguish zoisite from chrome diopside, fuchsite, epidote, and jade-related materials.
| Name | Appropriate meaning | What it should not imply |
|---|---|---|
| Tanzanite | Blue-to-violet gem zoisite from the Merelani mining district of Tanzania. | Every transparent color of zoisite or any blue imitation. |
| Thulite | Pink to rose manganese-bearing zoisite, commonly massive. | A separate mineral species or any pink ornamental rock. |
| Anyolite | Green zoisite-bearing rock with ruby and usually dark amphibole. | Pure zoisite, pure ruby, or a homogeneous gem material. |
| Ruby-in-zoisite | Descriptive synonym for anyolite emphasizing red corundum in green zoisite matrix. | A single crystal consisting simultaneously of ruby and zoisite. |
| Green zoisite | Direct description of green zoisite at species level. | Automatic Merelani provenance or tanzanite status. |
| Pink zoisite | Transparent or massive pink zoisite; massive material may qualify as thulite. | Automatic treatment state or a separate species. |
| “Green tanzanite” or “pink tanzanite” | Commercial expressions sometimes applied to unusual colors. | Preferred mineralogical terminology; direct color plus species is clearer. |
| Saualpite | Historical name connected with the Austrian type area. | A current separate species or commercial variety. |
Look-Alikes and Common Misidentifications
Blue-violet transparent gems, pink ornamental rocks, and green ruby-bearing composites each have a different group of look-alikes. Identification should match the object type rather than applying one test to every form of zoisite.
| Possible material | Why it resembles zoisite | Useful distinctions | Preferred confirmation |
|---|---|---|---|
| Blue sapphire | Blue to violet transparent gem with strong luster and common jewelry use. | Hardness 9, higher density, uniaxial optics, no perfect zoisite cleavage, and generally less dramatic trichroism. | Refractive index, specific gravity, dichroscope, spectroscopy, and microscopy. |
| Iolite | Blue-violet gem with conspicuous pleochroism. | Lower refractive index and density, different optical sign, and typically poorer cleavage expression. | Refractometry, specific gravity, optic character, and spectroscopy. |
| Blue spinel | Transparent blue or violet material with similar brilliance. | Isotropic and therefore non-pleochroic; refractive index and inclusion scene differ. | Polariscope, refractometer, spectroscopy, and microscopy. |
| Kyanite | Blue bladed crystals, strong directionality, and similar metamorphic associations. | Markedly variable hardness by direction, different cleavage and refractive indices, commonly flatter bladed habit. | Optical testing, Raman spectroscopy, and X-ray diffraction. |
| Blue or violet glass | Can imitate tanzanite color and transparency. | Gas bubbles, flow lines, lower density, singly refractive behavior, and absent natural pleochroism. | Microscopy, polariscope, refractometry, and spectroscopy. |
| Coated quartz, topaz, or synthetic material | Surface film creates a strong blue-violet face-up color. | Coating wear at facet edges, interference colors, substrate properties, and lower or different refractive index. | Microscopy, refractometry, Raman or FTIR, and coating analysis. |
| Clinozoisite or epidote | Related composition, similar metamorphic setting, green to yellow-brown colors, and overlapping habits. | Monoclinic symmetry, different optics and often greater iron content in epidote. | X-ray diffraction, optical orientation, Raman spectroscopy, and chemistry. |
| Rhodonite | Pink massive ornamental stone with black veins. | Chain-silicate structure, different cleavage, density, spectroscopy, and commonly manganese-oxide veining. | Raman spectroscopy, X-ray diffraction, and microscopy. |
| Rhodochrosite | Pink to red massive material and decorative banding. | Carbonate cleavage, lower hardness, different density, and strong acid sensitivity. | Raman spectroscopy and X-ray diffraction rather than acid on a finished piece. |
| Pink calcite or dyed stone | Soft rose color and translucency can resemble pale thulite. | Lower hardness, rhombohedral cleavage, dye concentration, and different spectroscopy. | Microscopy, Raman spectroscopy, and refractometry where possible. |
| Ruby in fuchsite or kyanite | Red corundum occurs in a green or blue-green matrix. | Micaceous sparkle and sheet cleavage in fuchsite; bladed blue matrix in kyanite; different matrix spectra. | Microscopy and Raman mapping of each mineral phase. |
| Resin composite or assembled anyolite | Can reproduce green matrix, red patches, and black contrast. | Polymer gloss, bubbles, straight joins, repeated fragments, low density, and no natural intergrowth. | Microscopy, ultraviolet comparison, FTIR, and provenance. |
Localities and Their Mineralogical Character
Zoisite is widespread as a metamorphic mineral, but celebrated gem and ornamental varieties are highly localized. Provenance matters because it connects color with host rock, trace chemistry, metamorphic history, mining practice, and treatment expectations.
Saualpe, Austria
The type region in Carinthia gave rise to the historical name saualpite. Zoisite occurs in metamorphic rocks associated with the Eastern Alps and remains central to the mineral’s naming history.
Merelani Hills, Tanzania
The sole defining source of tanzanite. Transparent vanadium-bearing crystals occur in narrow zones within a complex graphite-bearing metamorphic belt near Mount Kilimanjaro.
Longido District, Tanzania
Classic anyolite from northern Tanzania contains green zoisite with ruby and dark amphibole. Material ranges from coarse geological specimens to polished ornamental rock.
Telemark, Norway
Historic thulite country and the source most strongly associated with the variety name. Pink zoisite occurs in metamorphic and metasomatic rocks with pale and dark associates.
Pakistan and the greater Himalayan region
Metamorphic belts and alpine-type fissures have produced transparent, pink, green, yellow, and brown zoisite crystals, sometimes with attractive zoning.
Switzerland and the European Alps
Zoisite occurs in eclogite, amphibolite, schist, gneiss, and alpine fissure assemblages with garnet, kyanite, quartz, and amphibole.
United States
Occurrences in North Carolina and other metamorphic regions include massive, crystalline, or ornamental zoisite associated with amphibolite, calc-silicate rock, and corundum-bearing zones.
Other metamorphic provinces
India, Australia, Namibia, Kenya, Madagascar, Russia, and additional regions contain zoisite in eclogite, marble, skarn, and regional metamorphic assemblages, generally without matching Merelani’s tanzanite production.
| Region | Geological setting | Characteristic material | Documentation priority |
|---|---|---|---|
| Saualpe, Austria | Alpine metamorphic rocks | Historic type-area zoisite, commonly non-gem material | Exact locality, host rock, historic label, and relation to early collections. |
| Merelani, Tanzania | Graphite-bearing gneiss, schist, and calc-silicate reaction zones | Transparent vanadium-bearing blue, violet, greenish, brownish, and zoned crystals | Mining block, parcel history, treatment, crystal orientation, and any matrix retained. |
| Longido, Tanzania | Corundum-bearing calc-silicate metamorphic rock | Anyolite with ruby, green zoisite, and dark amphibole | Rock composition, natural versus assembled matrix, treatment, and quarry source. |
| Telemark, Norway | Manganese-bearing metamorphic and metasomatic rock | Pink to rose thulite | Named locality, associated minerals, vein pattern, and any impregnation or dye. |
| Himalayan and Pakistani occurrences | High-grade metamorphic rocks and fissure environments | Transparent and colored crystals, including pink, green, yellow, and brown | Mine or valley, host rock, mineral analysis, and separation from clinozoisite or epidote. |
| Alpine Europe | Eclogite, amphibolite, gneiss, and fissure systems | Petrological grains, prisms, and associated specimens | Rock unit, pressure-temperature context, collector, and original labels. |
| North American localities | Regional metamorphic and corundum-bearing rocks | Massive, granular, and occasional crystalline zoisite | State, county, mine or outcrop, analytical confirmation, and matrix. |
Assessing Zoisite, Tanzanite, Thulite, and Anyolite
There is no universal scientific grading scale for zoisite. Transparent tanzanite is assessed differently from massive thulite, geological zoisite crystals, and anyolite. A useful evaluation keeps color, orientation, clarity, cut, texture, mineral proportion, condition, treatment, locality, and stability separate.
Face-up color
In faceted tanzanite, hue, tone, saturation, and the balance between blue and violet should be recorded under controlled light rather than compressed into one superlative grade.
Orientation and cut
Cutting can favor blue, violet, brightness, depth of tone, or weight retention. A deep stone may appear saturated but dark; a shallow stone may brighten while losing color concentration.
Clarity and cleavage
Transparent gems are valued for clarity, yet fracture orientation and surface reach are more important to durability than a simple inclusion count.
Massive texture
Thulite and anyolite should be assessed for even grain structure, open fractures, veins, undercutting minerals, polish, and the stability of phase boundaries.
Ruby distribution
In anyolite, red corundum may form distinct crystals, irregular patches, or small grains. Pattern can be visually important, but mineral proportion and structural integrity should remain clear.
Provenance and intervention
Locality, treatment, repair, filling, coating, dye, backing, and composite construction can alter interpretation even when the object remains attractive.
| Assessment factor | Favorable evidence | Points requiring description |
|---|---|---|
| Identity | Optical, physical, spectroscopic, and provenance evidence agree with zoisite. | Color-only naming or a multi-mineral rock represented as homogeneous zoisite. |
| Color | Balanced saturation, readable pleochroism, and stable appearance under controlled light. | Overly dark tone, surface-only color, coating, dye, or image enhancement. |
| Orientation | Cut presents an intentional blue-violet balance and good brightness. | Strong extinction, uneven face-up color, or excessive weight retained at the expense of appearance. |
| Transparency and clarity | Natural inclusions remain unobtrusive and do not threaten stability. | Surface-reaching cleavage, open fracture, filling, tension halo, or hidden backing. |
| Cut and polish | Symmetry, facet junctions, girdle, outline, and polish are coherent with the material. | Thin cleavage-sensitive girdle, polished-out chips, coating wear, or severe abrasion. |
| Massive texture | Fine interlocking grains, stable veins, and even polish. | Granular crumbling, differential undercutting, open seams, resin film, or dye in pores. |
| Anyolite composition | Natural intergrowth among ruby, green zoisite, and dark matrix minerals. | Inserted ruby fragments, painted matrix, straight joins, or unsupported claims of mineral purity. |
| Locality | Mine or region, host rock, collector, and prior labels retained. | Merelani, Longido, or Telemark inferred solely from appearance. |
| Treatment | Heat, coating, fill, dye, impregnation, repair, and backing disclosed. | Routine heat represented as untreated or enhancement concealed by broad wording. |
| Condition | Stable cleavage, supported setting, intact surface, and no active deterioration. | Loose stone, chipped girdle, expanding fracture, unstable matrix, or failing adhesive. |
Treatments, Imitations, and Confident Identification
Heat treatment is expected in most tanzanite, but other interventions are less routine. Coatings, fracture filling, dye, impregnation, backing, reconstruction, and imitation should be evaluated separately from the accepted heating that develops the familiar blue-violet color.
Heat treatment
Controlled heating commonly removes brown or yellow-green components from vanadium-bearing crystals. It is usually stable and may not be detectable by ordinary visual examination.
Surface coating
A thin film can intensify blue or violet, alter luster, or mask a pale substrate. Wear may appear along facet edges, scratches, or the girdle.
Fracture filling
Polymer or glass-like filler can improve apparent clarity. Bubbles, flash effects, flow texture, and different ultraviolet response may reveal it.
Dye and impregnation
Porous thulite, pale rock, and composite ornamental material may accept dye, wax, oil, or resin. Color and polymer often concentrate in pores and fractures.
Composite anyolite
Natural fragments may be joined or backed to create a larger patterned object. A composite can contain genuine ruby and zoisite but is not one intact rock piece.
Imitation
Blue glass, coated quartz or topaz, iolite, synthetic spinel, sapphire, and assembled materials can imitate tanzanite. Pink and green rocks have their own substitute materials.
Evidence hierarchy for identification
Confidence increases when independent observations agree. No single color, inclusion, or numerical reading should carry the entire conclusion.
- Documented provenanceTraceable mine, region, prior report, collection history, and treatment disclosure establish context.
- Directional colorStrong pleochroism supports transparent zoisite and helps separate glass or isotropic spinel.
- Refractive indexReadings near the zoisite range separate it from quartz, iolite, glass, and many substitutes.
- Specific gravityMeasured density supports comparison with corundum, quartz, iolite, and synthetic materials.
- Optic characterBiaxial behavior and optical sign strengthen species-level identification.
- MicroscopyNatural inclusions, cleavage, grain boundaries, coatings, fill, dye, and joins can be mapped.
- Raman or infrared spectroscopyConfirms mineral identity and may identify polymer, coating, or separate phases in anyolite.
- X-ray diffraction and chemistryResolve zoisite versus clinozoisite or epidote and identify mixed mineral rocks.
| Observation | Possible interpretation | Why it is not conclusive alone |
|---|---|---|
| Strong blue-violet pleochroism | Transparent vanadium-bearing zoisite | Iolite and some other gems are also pleochroic; numerical testing remains necessary. |
| Warm third color | Unheated or incompletely heated tanzanite | Lighting, orientation, iron content, and thickness can alter the perceived hue. |
| Only blue and violet visible | Heated tanzanite | A naturally blue stone or strongly oriented specimen may look similar. |
| RI near 1.69–1.72 | Zoisite-consistent surface | One reading does not reveal every phase, coating, filling, or treatment. |
| Red patches in green matrix | Anyolite | Ruby-fuchsite, assembled composites, dye, and other corundum-bearing rocks can resemble it. |
| Pink granular material | Thulite | Rhodonite, rhodochrosite, calcite, feldspar, and dyed stones can overlap visually. |
| Ultraviolet contrast in a fracture | Filler or adhesive | Natural mineral inclusions can fluoresce differently from zoisite. |
| Uniform purple surface | Highly saturated tanzanite or coating | Surface wear, spectroscopy, and edge examination are needed to distinguish them. |
Jewelry, Cutting, and Lapidary Behavior
Zoisite can produce brilliant faceted gems, richly colored cabochons, patterned carvings, and durable-looking beads. Its successful use depends on recognizing that transparent single crystals, massive thulite, and multi-mineral anyolite fail in different ways.
Faceted tanzanite
Cutters orient rough to balance blue-violet color, weight retention, brightness, extinction, zoning, inclusions, and cleavage. The most saturated axis may not yield the safest or largest stone.
Thulite cabochons
Massive material suits domed cuts, beads, tablets, and carvings. Fine grain and controlled veining support an even polish.
Anyolite cabochons and carving
Large patterned surfaces showcase ruby against green and black matrix, but differential hardness complicates shaping and polishing.
Protective settings
Bezels, halos, recessed seats, guarded corners, and low profiles reduce exposure of cleavage-sensitive edges and girdles.
Beads and drilled forms
Drill holes should avoid fractures, ruby-zoisite boundaries, and weak amphibole seams. Stringing components should not abrade the hole edges.
Repair heat
Mounted tanzanite should be protected from torch heat, steam, and rapid temperature change during jewelry work. Removal before high-temperature repair is preferable where feasible.
| Use | Suitability | Design considerations |
|---|---|---|
| Pendant | Well suited | Low impact exposure; support the stone broadly and avoid pressure on cleavage feathers. |
| Earrings | Well suited | Good for faceted tanzanite and lighter thulite forms; secure mounting and weight remain important. |
| Brooch | Suitable | Protect exposed corners and ensure the object cannot strike a hard surface. |
| Ring | Conditional | Use protective design, avoid high-set exposed corners, and reserve delicate stones for mindful wear. |
| Bracelet | Higher risk | Frequent impact and contact with hard surfaces increase abrasion and cleavage risk. |
| Beads | Suitable when massive material is stable | Inspect drill holes, fractures, dye, impregnation, and mixed mineral boundaries. |
| Carving | Suitable for thulite and anyolite | Map veins and hard ruby zones before removing material. |
| Faceted transparent gem | Specialized but established | Requires orientation for pleochroism, careful preforming, cool cutting, and cleavage-aware setting. |
Orient before sawing
Mark pleochroic directions, inclusions, and cleavage in the rough. One early cut can determine both final color and structural security.
Use light pressure
Excess pressure and vibration can open cleavage or extend a feather, especially during preforming and polishing.
Keep work cool
Water cooling controls heat, carries away abrasive particles, and reduces thermal stress.
Expect differential polish
Anyolite combines ruby, zoisite, amphibole, and other phases. Hard corundum can stand proud while softer areas undercut.
Support thin edges
Thin girdles, sharp points, drill holes, and narrow carved bridges concentrate stress and should not cross prominent cleavage or fractures.
Control dust
Cut massive rock wet with local extraction. Anyolite and thulite may contain quartz, amphibole, mica, corundum, or altered minerals in addition to zoisite.
Care, Cleaning, Storage, and Conservation
The safest care method follows the complete object. Transparent tanzanite is governed by cleavage and thermal shock; thulite by fractures, grain boundaries, and treatment; anyolite by the weakest mineral phase, join, drill hole, or polished edge.
Use warm soapy water
Brief manual cleaning with lukewarm water, mild soap, and a very soft brush or cloth is appropriate for stable untreated stones.
Avoid ultrasonics
Vibration can extend cleavage fractures, loosen filled areas, disturb settings, and damage composite ornamental pieces.
Avoid steam and abrupt heat
Rapid temperature change can create thermal stress in a brittle, cleavable crystal and may damage coating, filler, adhesive, or backing.
Store separately
Quartz, topaz, corundum, diamond, and hard metal edges can scratch zoisite. Use an individual soft compartment or protective box.
Inspect anyolite boundaries
Ruby, zoisite, amphibole, and pale veins expand, polish, and fracture differently. Check for movement or opening along phase contacts.
Respect unknown treatments
Until coating, filling, dye, wax, resin, and adhesive are ruled out, avoid long soaking, solvents, and aggressive cleaners.
Protect jewelry from impact
Remove tanzanite rings during sports, heavy lifting, gardening, household repair, and other activities that can strike the stone.
Inspect settings
Loose prongs, a compressed bezel, worn girdle, or movement against metal can turn a small fracture into a larger chip.
Keep specimen labels
Store locality, treatment, analysis, and condition records with mineral specimens and fashioned objects so future care does not rely on appearance alone.
| Method or risk | Possible effect | Preferred approach |
|---|---|---|
| Dry wiping before grit removal | Hard particles scratch facets and polish. | Rinse or lift loose particles gently before wiping. |
| Ultrasonic cleaner | Extends cleavage, opens fractures, and loosens fill or settings. | Use low-force manual cleaning. |
| Steam cleaning | Rapid heat and pressure create thermal shock and treatment risk. | Use lukewarm water only. |
| Direct flame or jeweler's torch | Cleavage, discoloration of coatings, filler failure, and adhesive damage. | Remove or shield the stone before high-temperature work. |
| Acid or bleach | Etches associated minerals, alters dye or fill, and dulls polish. | Avoid strong chemical cleaners. |
| Long soaking | May affect porous rock, backing, dye, wax, resin, and metal settings. | Keep washing brief and controlled. |
| Sharp impact | Tip loss, girdle chip, cleavage split, or break at a phase boundary. | Use protective settings and remove jewelry during high-risk activity. |
| Mixed storage | Harder gems abrade zoisite; zoisite can scratch softer materials. | Store individually in a soft-lined compartment. |
| Prolonged direct sun behind glass | Heating of stone, adhesive, and display materials. | Use stable indirect display light and avoid hot windowsills. |
Photography and Display
Zoisite presents different photographic problems in each variety. Tanzanite can shift between blue and violet with tiny changes in angle and white balance; thulite can lose its granular rose texture under hard light; anyolite can produce harsh reflections from ruby while the green and black matrix falls into shadow.
Calibrate white balance
Use a neutral reference so blue does not drift toward electric cyan and violet does not become exaggerated magenta.
Record more than one orientation
A face-up view, rotated view, and side view reveal pleochroism more honestly than one carefully selected blue frame.
Use broad soft light
Diffusion preserves thulite’s grain and subtle color variation without flattening it into a uniform pink surface.
Control anyolite contrast
A large soft source reveals green zoisite, while a restrained side light gives ruby and amphibole enough relief to remain distinct.
Backlight transparent zones
Transmitted light can reveal tanzanite zoning, cleavage, inclusions, and thin colorless regions, but should be presented as a separate lighting condition.
Include the edge and reverse
These views document thickness, backing, coatings, joins, drill holes, grain boundaries, and the actual distribution of color.
Protect highlights
Expose for the brightest facet or ruby surface. Clipped reflections erase polish quality, surface wear, and inclusion evidence.
Use scale and metadata
Record dimensions, light source, orientation, treatment status, and whether the image represents reflected or transmitted light.
Scientific Context
Zoisite links mineral structure, metamorphic petrology, trace-element spectroscopy, gem treatment, subduction-zone water transport, and the mechanics of cleavage. Its famous varieties are scientifically useful because they make subtle structural effects visible at hand-specimen scale.
Trace-element spectroscopy
Absorption spectra reveal how V, Cr, Mn, and Fe occupy structural sites and produce blue, violet, green, pink, yellow, and brown colors.
Heat-treatment research
Controlled experiments track changes in oxidation state, absorption bands, pleochroism, and color stability without changing the mineral species.
Polymorphism
Zoisite and clinozoisite provide a clear example of one ideal composition adopting two different crystal structures.
Subduction-zone water
High-pressure zoisite stores hydroxyl and can participate in reactions that move or release water deep within metamorphic slabs.
Metamorphic reaction mapping
Contacts among zoisite, garnet, pyroxene, amphibole, calcite, kyanite, corundum, and feldspar constrain pressure, temperature, fluid, and bulk composition.
Cleavage mechanics
Crystallography and fracture analysis explain why a moderately hard gem can remain vulnerable to impact along one structural direction.
Composite-rock petrology
Anyolite preserves interacting mineral phases and reaction zones that are obscured when the material is described simply as a decorative green-and-red stone.
Gemological identification
Pleochroism, refractive index, optic sign, inclusions, spectroscopy, and density distinguish tanzanite from sapphire, iolite, spinel, glass, and coatings.
Conservation science
Microscopy and spectroscopy separate original zoisite from filler, coating, dye, backing, adhesive, and later restoration.
History of Study and Cultural Context
Zoisite has two distinct public histories. The first begins in the Alps with a pale metamorphic mineral collected from the Saualpe region and named in the early nineteenth century. The second begins more than a century and a half later, when transparent blue-violet material from northern Tanzania transformed one mineral variety into an internationally recognized gemstone.
The early material was initially called saualpite. Werner renamed the mineral zoisite in 1805 in honor of Sigmund Zois, whose mineralogical interests and collections were important to Central European natural history. The pink variety thulite was named from a classical northern place-name, linking its rose color with Scandinavian geography.
Blue-violet zoisite was recognized in Tanzania in 1967. Tiffany & Co. introduced the commercial name tanzanite in 1968, emphasizing the stone’s geographic origin and avoiding the less marketable phrase “blue zoisite.” The gemstone’s rapid rise created a modern cultural identity based on rarity, directional color, treatment, and one restricted mining district.
Anyolite developed a separate ornamental history through carvings, cabochons, beads, and decorative objects made from ruby-bearing green zoisite rock. Its strong red-green-black pattern encouraged symbolic interpretation, but its cultural history should remain distinct from both early Alpine zoisite and modern tanzanite.
Saualpite enters mineralogical study
Material from the Saualpe region of Austria is recognized as a distinct calcium-aluminum silicate.
The name zoisite is introduced
Abraham Gottlob Werner names the mineral for Sigmund Zois, replacing the locality-derived name saualpite.
Thulite becomes established
Pink manganese-bearing zoisite from Norway gains its traditional variety name and ornamental identity.
Ruby-in-zoisite enters decorative use
Anyolite from northern Tanzania becomes known as a vivid carving and cabochon material combining ruby, green zoisite, and dark matrix.
Blue-violet gem zoisite is recognized in Tanzania
Transparent vanadium-bearing crystals from the Merelani area reveal a gem expression previously unknown at commercial scale.
The name tanzanite enters the gem world
Tiffany & Co. introduces the geographic variety name and promotes the stone’s blue-violet color and Tanzanian origin.
Heat treatment and spectroscopy are clarified
Gemological research explains pleochroism, vanadium-related color, heating, inclusions, and practical durability.
Structure, deep water, and trace chemistry
Advanced diffraction, spectroscopy, experimental petrology, and computation continue to refine zoisite’s role in metamorphism and gem color.
Alpine mineral history
The accepted species name predates the famous blue gem variety by more than 160 years.
Modern tanzanite identity
Tanzanite is a twentieth-century gemstone name with a documented Tanzanian and commercial history, not an ancient mineral term.
Thulite and northern imagery
The variety name draws on Thule, a classical term for the far north, but specific symbolic claims should not be projected backward without evidence.
Anyolite and decorative culture
Carving traditions and modern lapidary use developed around its striking composite pattern rather than one ancient universal meaning.
Contemporary Symbolic Interpretation
Zoisite offers several material themes for reflective practice: one species expressed through many colors, three optical directions within one crystal, a hidden cleavage beneath a brilliant surface, transformation through heat, and composite strength in anyolite. These are symbolic readings grounded in observable mineral properties.
Three directions, one structure
Tanzanite’s pleochroism can represent several valid perspectives held within one coherent identity.
Orientation shapes visibility
The color presented face-up depends on how the crystal is oriented. The image supports deliberate framing rather than assuming one view is the whole.
Transformation through conditions
Heat changes the visible balance of trace color without changing the underlying mineral species, offering a grounded metaphor for refinement rather than replacement.
Strength within a composite
Anyolite contains phases with different hardness, color, and roles. Coherence comes from relationship, not uniformity.
Visible brilliance, hidden cleavage
A bright polished surface can conceal a directional vulnerability, encouraging attention to limits that are real even when they are not immediately visible.
Identity beyond color
Blue tanzanite, pink thulite, and green zoisite differ dramatically in appearance while sharing one mineral structure.
The Three-Axis Review
- Name one situation that changes when viewed from different positions.
- Write the practical, relational, and long-term perspective separately.
- Identify what remains constant across all three.
- Choose the orientation that best serves the present decision.
- Record the perspective that should not be lost.
The Cleavage Boundary
- Choose one area that appears strong from the outside.
- Name the direction in which pressure is most likely to cause failure.
- Reduce one unnecessary point of force.
- Add support before increasing exposure.
- Review whether the boundary protects function without hiding it.
The Heat-and-Color Audit
- Identify one experience that changed what became visible.
- Separate what was transformed from what remained structurally the same.
- Note which distracting component was reduced.
- Name the color, value, or direction that became clearer.
- Choose one practical action consistent with that clarified direction.
The Composite Strength Map
- List the distinct people, materials, or roles within one shared project.
- Name the strength and vulnerability of each component.
- Identify the boundary most likely to undercut or separate.
- Adjust the process to protect that interface.
- Preserve useful contrast rather than forcing uniformity.
Documentation and Responsible Description
A strong record separates species, variety, color, orientation, treatment, locality, fashioned form, composite mineralogy, condition, and analytical confidence. That distinction allows later testing to refine the interpretation without losing the evidence.
Identity and variety
Record zoisite as the species and tanzanite, thulite, green zoisite, or anyolite only where the material fits the accepted meaning.
Optical appearance
Describe face-up hue, directional colors, tone, saturation, lighting, and whether the stone has been heated.
Texture and composition
List grain size, veins, ruby, amphibole, quartz, calcite, feldspar, inclusions, and other phases in massive material.
Locality and geology
Retain mine, district, host rock, formation or metamorphic unit, collector, date, and original labels.
Treatment and intervention
Document heating, coating, filling, dye, impregnation, backing, repair, recutting, and setting history.
Condition
Record cleavage, open fractures, abrasion, chipped facets, weak veins, loose settings, undercutting, and support requirements.
| Record element | Why it matters | Example wording |
|---|---|---|
| Object name | Separates species, variety, and composite rock. | “Heated blue-violet tanzanite, transparent zoisite.” |
| Formula | Links the object to the accepted mineral species. | “Ca₂Al₃(SiO₄)(Si₂O₇)O(OH).” |
| Color and orientation | Records pleochroism beyond one photograph. | “Medium blue face-up under neutral light; violet dominant after 90° rotation.” |
| Treatment | Explains color and determines care. | “Routine heat treatment disclosed; no coating or filling detected by current examination.” |
| Locality | Preserves geological and historical value. | “Merelani mining district, Manyara Region, Tanzania.” |
| Composite mineralogy | Prevents anyolite from being described as pure zoisite. | “Green zoisite with ruby and dark amphibole; minor pale calc-silicate veins.” |
| Dimensions and mass | Supports reproducible comparison and conservation. | “Faceted oval, 10.8 × 8.1 × 5.2 mm; 3.42 ct.” |
| Analytical evidence | Clarifies identification and treatment confidence. | “RI and pleochroism consistent with zoisite; Raman confirmed; heat state based on disclosure.” |
| Condition | Guides handling and future comparison. | “Minor facet abrasion; one stable surface-reaching cleavage feather near girdle.” |
| Images | Preserves directional color and treatment evidence. | “Face-up neutral-light, rotated, side, transmitted-light, girdle, reverse, and scale views.” |
Continue Into the Specialist Zoisite Guides
The following articles examine zoisite through mineral physics, geological formation, locality, historical study, legend, and contemporary reflective practice.
Frequently Asked Questions
What is zoisite?
Zoisite is an orthorhombic calcium-aluminum sorosilicate with ideal formula Ca₂Al₃(SiO₄)(Si₂O₇)O(OH). It occurs in many colors and metamorphic rock types.
What is the IMA symbol for zoisite?
The standardized mineral symbol is Zo.
Is zoisite part of the epidote group?
Zoisite is closely related chemically and structurally to epidote-supergroup minerals, but its orthorhombic structure distinguishes it from the predominantly monoclinic epidote-group species.
How is zoisite different from clinozoisite?
They are polymorphs with the same ideal formula. Zoisite is orthorhombic, while clinozoisite is monoclinic. Optical or structural testing may be needed where appearance overlaps.
How is zoisite different from epidote?
Epidote generally contains more ferric iron and is monoclinic. Zoisite is orthorhombic and ideally aluminum dominant, although natural compositions and colors can overlap.
What is a sorosilicate?
It is a silicate class built around paired Si₂O₇ groups. Zoisite also contains an isolated SiO₄ group in its structure.
What is the formula of zoisite?
The ideal formula is Ca₂Al₃(SiO₄)(Si₂O₇)O(OH).
What crystal system is zoisite?
Zoisite crystallizes in the orthorhombic system, commonly in space group Pnma.
What does the name zoisite mean?
The mineral was named in 1805 for Sigmund Zois, a Slovenian naturalist and mineral collector.
What was zoisite originally called?
It was first known as saualpite, after the Saualpe type region in Austria.
What is tanzanite?
Tanzanite is transparent blue-to-violet vanadium-bearing zoisite from the Merelani mining district of northern Tanzania.
Is tanzanite a separate mineral species?
No. It is a gem variety of zoisite.
Why is tanzanite blue and violet?
Trace vanadium, with possible influence from chromium, iron, and local chemistry, absorbs visible light differently along the crystal's three principal optical directions.
Is most tanzanite heated?
Yes. Routine controlled heating reduces brown or yellow-green components and leaves blue and violet visually dominant.
Does heating make tanzanite artificial?
No. Heating modifies trace-element color within natural zoisite. It does not change the mineral species or create a synthetic gem.
Is natural unheated blue tanzanite possible?
Yes, but strongly blue natural material is uncommon. Untreated crystals often retain a conspicuous yellow-green, bronze, or brown directional color.
Is tanzanite color stable after heating?
The developed blue-violet color is generally stable under ordinary wear and display. High heat and thermal shock remain dangerous because of cleavage and treatment-sensitive settings or fillers.
Can heat treatment always be detected?
No. Routine heat can leave no simple microscopic marker. Treatment status may rely on disclosure, spectroscopy, and the total evidence.
What is pleochroism?
Pleochroism is a change in color with crystallographic viewing direction because the crystal absorbs light differently along its optical axes.
Is tanzanite dichroic or trichroic?
Zoisite is structurally trichroic. Heated tanzanite often appears effectively dichroic because blue and violet dominate while the third warm color is greatly reduced.
Why can one tanzanite look blue and another violet?
Trace chemistry, cut orientation, thickness, lighting, and treatment determine the face-up balance between its directional colors.
Is tanzanite a color-change gemstone?
Its main effect is pleochroism, which changes with viewing direction. Warm and cool light can also shift the blue-violet balance, but this is not identical to a classic spectral color-change phenomenon.
What is thulite?
Thulite is pink to rose manganese-bearing zoisite, usually fine grained, massive, translucent, or opaque.
Why is thulite pink?
Pink color is associated chiefly with manganese, particularly Mn³⁺ in suitable structural sites, together with grain texture and other minor elements.
Is thulite a separate mineral?
No. It is a traditional variety of zoisite.
Where does the name thulite come from?
It derives from Thule, a classical name associated with the far north, reflecting the variety's early Norwegian connection.
What is anyolite?
Anyolite is a metamorphic rock composed mainly of green zoisite with ruby and commonly dark amphibole. It is often called ruby-in-zoisite.
Is anyolite one mineral?
No. It is a multi-mineral rock whose red, green, black, and pale regions can have different hardness, polish, and fracture behavior.
Is the red material in anyolite real ruby?
In genuine anyolite it is corundum colored red by chromium and appropriately described as ruby, although some pieces contain small, opaque, or highly included crystals rather than transparent gem ruby.
What is the black mineral in anyolite?
Dark areas are commonly amphibole, including hornblende-related material, though other dark minerals can occur and should be identified where precision matters.
Can zoisite be green?
Yes. Green zoisite ranges from pale pistachio to vivid chrome-like colors and may be transparent, translucent, granular, or massive.
Is “green tanzanite” correct?
The expression occurs commercially, but “green zoisite” is clearer unless the material is being discussed specifically as an unusual Merelani gem variety with documented provenance.
Can zoisite be pink and transparent?
Yes. Transparent pink crystals occur and can be colored by manganese, vanadium, chromium, or mixed trace chemistry. They are better called pink zoisite than pink tanzanite.
What is zoisite's Mohs hardness?
Published values are commonly about 6 to 7, with gem references often citing approximately 6 to 6.5.
Why is tanzanite fragile if its hardness is around 6.5?
Hardness measures scratch resistance. Tanzanite is brittle and has perfect cleavage, so impact in an unfavorable direction can split it.
Does zoisite have cleavage?
Yes. It has one prominent perfect cleavage, commonly reported on {010}, and additional weaker cleavage may occur.
What is zoisite's specific gravity?
Values commonly fall around 3.15 to 3.36, depending on composition and inclusions.
What is zoisite's refractive index?
Transparent material commonly measures within approximately 1.69 to 1.72, with variation related to composition and orientation.
What is zoisite's optical character?
It is biaxial positive.
Does zoisite fluoresce?
Fluorescence is usually weak or absent and varies with color, trace elements, locality, associated minerals, and treatment. It is not diagnostic by itself.
Where does tanzanite come from?
The defining source is the Merelani mining district in northern Tanzania, near Mount Kilimanjaro.
Is tanzanite found anywhere else?
Zoisite occurs worldwide, but the blue-violet gem material recognized as tanzanite is associated with the Merelani district. Other localities may produce colored zoisite without the same commercial identity.
Where is the zoisite type locality?
The type region is Saualpe in Carinthia, Austria.
Where does classic thulite come from?
Telemark, Norway, is the locality most strongly associated with classic thulite, although pink zoisite occurs elsewhere.
Where does classic anyolite come from?
Longido and nearby districts in northern Tanzania are famous for ruby-in-zoisite rock.
How does zoisite form?
It forms during regional, contact, and high-pressure metamorphism where calcium, aluminum, silica, water, and suitable trace elements react in rocks such as eclogite, amphibolite, marble, skarn, schist, and gneiss.
Why is zoisite important in subduction zones?
Its hydroxyl group allows it to store hydrogen within a stable high-pressure structure and participate in deep metamorphic water transport.
What minerals occur with zoisite?
Common associates include garnet, diopside, amphibole, calcite, quartz, feldspar, kyanite, rutile, mica, epidote-related minerals, and corundum.
How is tanzanite different from sapphire?
Tanzanite is softer, less dense, biaxial, strongly pleochroic, and cleavage sensitive. Sapphire is corundum with hardness 9, greater density, uniaxial optics, and no comparable perfect cleavage.
How is tanzanite different from iolite?
Iolite is also strongly pleochroic but has lower refractive index and density and belongs to a different mineral group with different optical properties.
How is tanzanite different from spinel?
Spinel is isotropic and therefore not pleochroic. Its refractive index, density, inclusions, and spectroscopy also differ.
How is thulite different from rhodonite?
Rhodonite is a manganese chain silicate often crossed by black manganese-oxide veins. Thulite is zoisite, with different structure, density, cleavage, and spectroscopy.
How is thulite different from rhodochrosite?
Rhodochrosite is a softer manganese carbonate with rhombohedral cleavage and different optical and chemical behavior.
How is anyolite different from ruby in fuchsite?
Anyolite has a zoisite matrix, while ruby-fuchsite contains chromium mica with visible sparkle and sheet cleavage. Raman testing readily separates the green phases.
Does synthetic zoisite exist?
Laboratory-grown material has been produced for research, but widely encountered commercial synthetic tanzanite is not established in the way synthetic sapphire or spinel is. Imitations and coatings are more common concerns.
Can tanzanite be coated?
Yes. Surface coatings can intensify or alter color. Edge wear, scratches, interference effects, and laboratory analysis can reveal them.
Can tanzanite be fracture filled?
Fracture filling is possible, though less routine than heat treatment. Filled areas may show bubbles, flash effects, flow texture, or ultraviolet contrast.
Can thulite or anyolite be dyed?
Porous or fractured ornamental material can be dyed or impregnated. Color concentrated in cracks, pits, pores, or drill holes deserves examination.
Can a scratch test confirm zoisite?
No. It damages the object, may test an associated mineral, and provides less reliable evidence than refractometry, spectroscopy, or diffraction.
How should tanzanite be cleaned?
Use lukewarm water, mild soap, and gentle manual cleaning. Rinse briefly and dry carefully.
Can tanzanite go in an ultrasonic cleaner?
It is best avoided because vibration can extend cleavage fractures and disturb fillings or settings.
Can tanzanite be steam cleaned?
No. Rapid heat and pressure create unnecessary thermal-shock risk.
Can zoisite be exposed to sunlight?
Normal indirect display light is generally acceptable. Avoid prolonged hot windowsill exposure because heat can stress the stone, adhesive, setting, or backing.
Can zoisite be soaked in water?
Stable untreated material tolerates brief washing, but long soaking can affect porous matrix, dye, resin, filler, backing, drill holes, and settings.
Is tanzanite suitable for rings?
Yes, with caution. Protective settings, mindful wear, and regular inspection are important because rings receive more impact than pendants or earrings.
What jewelry uses are safest for tanzanite?
Pendants, earrings, brooches, and protected occasional-wear rings reduce impact exposure.
Is thulite suitable for jewelry?
Compact stable thulite works well in cabochons, beads, pendants, earrings, and protected rings, though fractures and veins should be assessed.
Is anyolite suitable for carving?
Yes. It is widely carved, but the different hardnesses of ruby, zoisite, amphibole, and associated minerals require careful cutting and polishing.
How should zoisite be stored?
Store it separately in a soft-lined compartment so harder gems and metal edges cannot scratch it, and so impacts do not reach exposed cleavage-sensitive edges.
Can locality be identified from color?
No. Color can suggest a variety, but reliable provenance requires labels, geological context, or a traceable chain of custody.
What should a zoisite label include?
Record species, variety or rock name, formula, color, transparency, treatment, locality, dimensions, associated minerals, analytical evidence, and condition.
When was tanzanite discovered?
Blue-violet gem zoisite was recognized in Tanzania in 1967, and the name tanzanite was introduced commercially in 1968.
Does tanzanite have ancient legends?
No documented ancient tradition can belong specifically to a gemstone recognized and named in the twentieth century. Most tanzanite-specific symbolism is modern.
What does zoisite symbolize in modern practice?
Contemporary interpretation often draws on directional color, transformation, hidden cleavage, variety within one structure, and the composite strength of anyolite. These are reflective readings rather than mineralogical effects.
