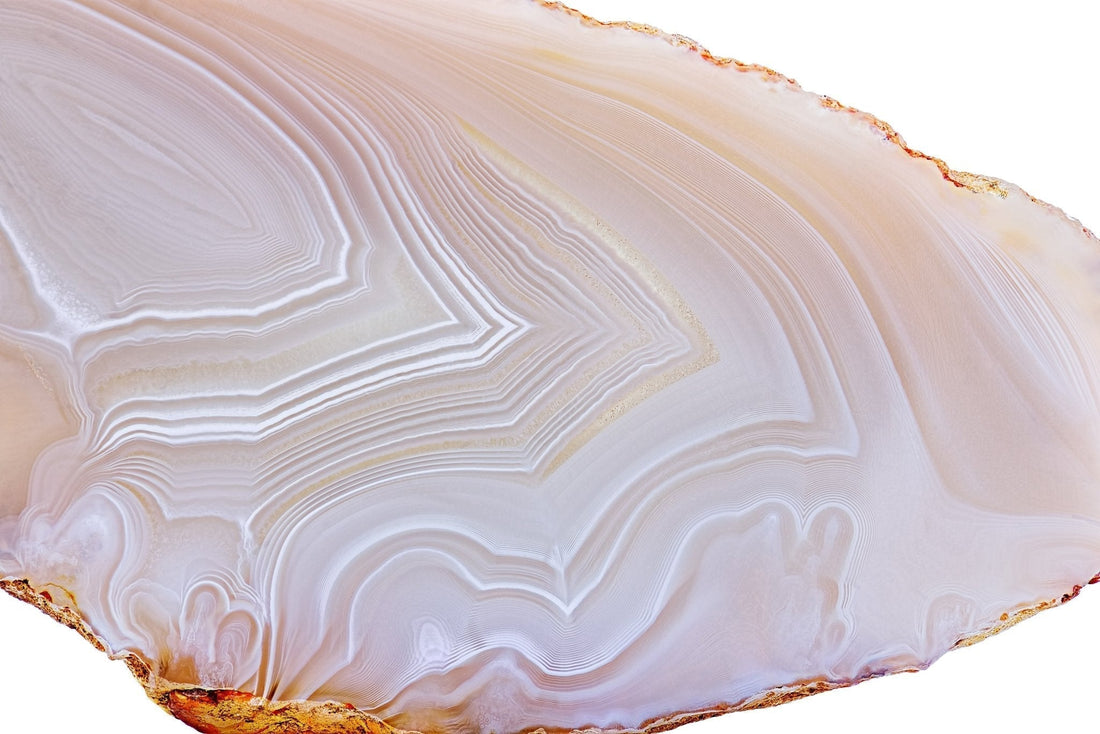

White Agate: Bands, Translucency, Formation, Identification, and Care
White agate is not a separate mineral species. It is agate whose visible architecture is dominated by white, near-white, pale gray, cream, or colorless chalcedony bands. Some layers are opaque and porcelain-like; others transmit light like frosted glass. The difference arises chiefly from microstructure—fibrous quartz, moganite, grain boundaries, minute pores, fluid inclusions, and locally different crystallization textures—rather than from one white pigment. Its bands may trace an irregular volcanic cavity, settle into horizontal waterlines, fold into lace-like scallops, surround a hollow quartz center, or straighten into the parallel architecture traditionally called onyx. This guide follows white agate from atomic-scale silica structure through cavity growth, pattern vocabulary, treatments, identification, lapidary use, historical context, documentation, and conservation.
Quick Facts
White agate is best understood as a patterned silica aggregate. The mineral chemistry is simple, but the visual result depends on submicroscopic texture, cavity geometry, impurity distribution, later mineral staining, cut thickness, surface polish, and transmitted light.
Identity, Terminology, and Naming
Agate is the traditional name for chalcedony displaying visible banding, repeated growth layers, or related layered architecture. White agate is a descriptive market and lapidary term for agate in which those layers are predominantly white, near-white, pale gray, cream, or nearly colorless. There is no separate chemical formula or crystal structure assigned to white agate.
Chalcedony is a microcrystalline silica aggregate composed chiefly of quartz, commonly accompanied by variable moganite and regions of microquartz. The crystals are too small and intergrown to show the individual six-sided form associated with rock crystal. Instead, the material behaves as a dense aggregate with waxy luster, good polish, no cleavage, and a characteristic conchoidal fracture.
The boundary between white agate and white chalcedony is descriptive rather than absolute. Distinct visible bands support the name agate; evenly colored material with no readable layering is more precisely white chalcedony. Very faint banding may emerge only when a slice is wet, polished, backlit, or examined at low angle.
Several trade names overlap. White lace agate describes scalloped or lace-like banding. Snow agate, ice agate, and milk agate are informal appearance names with no standardized mineralogical definition. White onyx is appropriate in the traditional gemological sense only for agate with straight, parallel bands; architectural onyx is often banded calcite or aragonite rather than silica.
A descriptive variety
White agate belongs to the broad agate family. Its identity rests on banded chalcedony, not on one trace element or one deposit.
White chalcedony
Uniform white or milky microcrystalline quartz without visible bands is chalcedony rather than agate, even when the two materials occur in the same nodule.
Onyx
Traditional onyx is parallel-banded agate. The name should not be transferred automatically to soft carbonate decorative stone sold as onyx marble.
Lace and eye names
Pattern terms describe geometry. They do not establish locality, treatment, age, or a separate mineral species.
Agate versus geode
An agate nodule may be completely filled, while a geode retains an open cavity. One object can contain an agate rim surrounding a druzy quartz center.
Color is not provenance
White-dominant agates occur in many volcanic and sedimentary regions. Source claims require labels, field data, or a traceable collection history.
| Name | Mineralogical meaning | Typical appearance | Important distinction |
|---|---|---|---|
| White agate | White-dominant banded chalcedony | Concentric, horizontal, lace-like, or straight white and translucent layers | Descriptive variety, not a separate mineral species |
| White chalcedony | White microcrystalline silica without obvious banding | Even white, milky, or softly translucent mass | Same broad material family, but the visible agate architecture is absent |
| Onyx | Straight, parallel-banded agate in traditional gem usage | White, gray, brown, or black parallel layers | Not the same as banded calcite onyx used in architecture |
| Milky quartz | Macrocrystalline quartz made cloudy by inclusions or defects | Cloudy white crystal or massive quartz | Usually lacks agate banding and has a different crystal texture |
| Common opal | Hydrated amorphous to poorly crystalline silica | White, cream, waxy, translucent, or opaque | Lower hardness and density; water content and structure differ |
| Calcite onyx | Banded calcium carbonate | Cream, white, honey, green, or brown translucent bands | Much softer and acid reactive |
Microstructure and Band Architecture
White agate looks smooth and continuous, but its visible bands are built from microscopic silica fibers, granular quartz, minute pores, inclusions, and changing crystallization fronts. The same SiO₂ chemistry can therefore produce clear, milky, gray, cream, or fully opaque layers.
- 1. Host-rock wallThe cavity boundary may be basalt, rhyolite, volcanic breccia, sedimentary rock, or a fracture surface. Its shape guides the first bands.
- 2. Fibrous chalcedonyMicroscopic quartz-rich fibers commonly grow roughly perpendicular to the cavity wall, building translucent to milky bands.
- 3. Granular microquartzFiner granular quartz layers can alternate with fibrous chalcedony and change luster, transparency, and fracture response.
- 4. White scattering layerMinute pores, inclusions, hydration differences, and grain boundaries scatter light and create a milk-glass appearance.
- 5. Mineral-rich bandIron oxides, clays, carbonates, organic material, or other inclusions can shift a white band toward cream, honey, gray, or brown.
- 6. Late cavity fillOpen space may remain and later host macrocrystalline quartz, calcite, zeolites, or other cavity minerals.
Quartz and moganite
Chalcedony is dominated by quartz but may contain measurable moganite, a related silica polymorph. Moganite proportions can change with geological age and post-formation alteration.
Fibrous growth
Many agate bands consist of elongated microscopic domains arranged in fan-like or spherulitic patterns. Their orientation influences translucency and optical texture.
Granular intervals
Microquartz layers may interrupt fibrous growth, producing sharper boundaries, different polish, and local changes in apparent whiteness.
Pores and inclusions
Submicroscopic voids, liquid inclusions, clay, iron oxides, and carbonates act as scattering or coloring centers even when the bulk chemistry remains nearly pure SiO₂.
Band continuity
Natural bands commonly follow cavity geometry, wrap around obstacles, split, merge, thin, and reappear. Perfectly uniform printed-looking stripes deserve closer examination.
Scale matters
A band visible to the eye contains finer internal layering. Under magnification, one broad white stripe may resolve into many narrow translucent and milky laminae.
Why White Agate Appears White
Pure quartz is colorless. White agate becomes white when its microstructure scatters visible light before that light can pass cleanly through the material. Grain boundaries, mismatched fiber orientations, fluid inclusions, tiny voids, microscopic fractures, and finely dispersed mineral particles all contribute.
The apparent color changes with thickness. A thick cabochon may look opaque snow white, while a thin edge of the same stone glows warm cream or gray-blue under backlight. Surface polish also matters: a rough surface scatters additional light, whereas a high polish reveals deeper translucency and sharper band boundaries.
Trace impurities add secondary tones. Iron oxides produce cream, tan, honey, orange, or russet bands. Manganese oxides can create gray to black seams. Clay and organic matter may produce muted gray or brown. Colorless macroquartz in a central cavity can appear brighter and more glassy than the surrounding chalcedony.
Snow white
Strong scattering and limited transmission create a porcelain-like band with little visible body color.
Milk-glass translucency
Light penetrates the band but is repeatedly redirected, producing a soft internal glow instead of a clear view through the stone.
Pearl gray
Fine dark inclusions, adjacent matrix, greater thickness, and cooler illumination can shift near-white chalcedony toward gray.
Warm cream
Minor iron staining, pale carbonate, weathering, or warm transmitted light can create ivory and cream tones.
Honey edge glow
Thin margins transmit more light and can appear warmer than the face because the optical path is shorter and surrounding reflections differ.
Dark seams
Manganese or iron oxides, clay-rich partings, organic films, and host-rock fragments may outline pale bands with charcoal accents.
How lighting changes the reading
White agate should be examined in reflected, transmitted, and edge light because each mode reveals a different part of its structure.
- Neutral reflected lightBest for recording true surface color, polish, fractures, and the contrast between white, gray, and cream bands.
- BacklightingReveals translucent windows, hidden bands, internal clouds, color concentration, and composite joins.
- Low-angle lightShows relief, undercutting, scratches, orange-peel texture, repaired seams, and subtle waterlines.
- Dark backgroundStrengthens edge glow and makes pale translucent bands easier to see.
- Warm lightCan make neutral white appear ivory or honey and exaggerate iron-stained zones.
- Image processingOverexposure erases band boundaries, while excessive contrast can turn pale gray layers artificially black.
Formation and Geological Setting
White agate forms where silica-bearing fluids enter open space and crystallize as layered chalcedony. Volcanic cavities are classic hosts, but veins, fractures, sedimentary nodules, replacement zones, and weathering environments can also produce agate.
Volcanic vesicles
Gas bubbles trapped in lava leave rounded or irregular cavities. Later groundwater or hydrothermal fluid introduces dissolved silica and other ions.
Fractures and veins
Silica-rich water moving through cracks can create straight, branching, sheet-like, or brecciated agate rather than rounded nodules.
Sedimentary nodules
Silica can replace or fill concretions, fossils, evaporite cavities, and pore networks in sedimentary rocks.
Replacement bodies
Wood, shell, carbonate, or earlier minerals may be replaced by chalcedony while preserving original shapes and internal structures.
Weathering and remobilization
Silica released during alteration can migrate short distances and fill fractures or cavities under low-temperature conditions.
Late crystal growth
If chalcedony does not completely fill the cavity, later quartz, calcite, zeolites, or other minerals may grow into the remaining space.
An open space forms
A vesicle, fracture, dissolution cavity, nodule interior, or replacement front creates the geometry that later bands will follow.
Silica enters with water
Groundwater or hydrothermal fluid carries dissolved silica released from volcanic glass, feldspar, clay, or other silicate minerals.
The cavity wall becomes a growth surface
Silica begins to polymerize and crystallize along the host-rock boundary, commonly producing the first fibrous chalcedony layer.
Banding develops
Changes in fluid supply, chemistry, pH, temperature, impurities, saturation, or crystallization style create alternating layers.
White scattering textures form
Fine pores, fluid inclusions, granular quartz, and differently oriented fibers produce milky or opaque bands beside clearer layers.
Waterlines may settle
Where silica-rich fluid occupies a partly filled cavity, level or nearly level bands can record repeated precipitation surfaces.
Late minerals enter
Quartz crystals, calcite, iron oxides, manganese oxides, clay, or other cavity minerals may line the remaining void or stain earlier bands.
Erosion exposes the nodule
Host rock weathers away, releasing agate into soil, river gravel, beaches, mine workings, or quarry faces.
| Setting | Growth control | Typical white-agate expression | Associated evidence |
|---|---|---|---|
| Basalt vesicle | Rounded cavity, low-temperature fluids, repeated silica supply | Concentric fortification bands, geode centers, waterlines | Dark basalt rind, zeolites, calcite, quartz, iron staining |
| Rhyolite cavity | Silicic volcanic glass and fracture-controlled fluid movement | Fine lace, plume-like textures, pale fortification, druzy centers | Rhyolitic matrix, opal, chalcedony, quartz |
| Fracture vein | Planar crack geometry and repeated opening or sealing | Straight bands, breccia cement, parallel onyx-like layers | Wall-rock fragments, cross-cutting veins, quartz druse |
| Sedimentary nodule | Replacement or cavity filling in sediment | Irregular pale nodules, fossil-associated chalcedony, concentric rims | Carbonate, clay, fossil structure, silica replacement textures |
| Petrified organic material | Silica replacement of wood, shell, or other biological structure | White chalcedony bands following cellular or shell geometry | Preserved growth rings, cells, chambers, or shell layers |
White agate is a record of repeated boundaries: rock and water, cavity and crystal, clear and milky silica, open space and gradual closure.
Pattern and Texture Vocabulary
Pattern names describe the geometry visible on a cut or polished surface. A single nodule may combine several styles because banding follows cavity shape, gravity, fractures, changing growth fronts, and late mineral deposition.
Contour-like bands
Angular or curved bands repeatedly trace the cavity wall, producing a map-like sequence of nested outlines.
Horizontal layers
Parallel bands cross the cavity independently of its outer shape, commonly reflecting repeated level precipitation surfaces.
Concentric focal rings
Small circular or oval rings form around a local nucleus, crystal, pore, or renewed point of growth.
Scalloped and frilled banding
Complex folds, loops, pockets, and repeated curves create an airy lace-like field.
Onyx architecture
Parallel planar layers form when growth follows a fracture or a persistent level boundary rather than a rounded cavity wall.
Agate around an open center
Chalcedony bands surround a cavity later lined by macrocrystalline quartz or other minerals.
Fragments in pale cement
Broken host rock or earlier agate pieces are bound by later white chalcedony and quartz.
Fine diffraction colors
Exceptionally thin, regular bands in a carefully cut slice can diffract transmitted light into spectral colors.
Milky band
Opaque to translucent white layer dominated by strong light scattering.
Translucent halo
Clearer chalcedony around a white band creates a glowing margin under backlight.
Mineral seam
Calcite, clay, iron oxide, or host-rock material forms a contrasting cream or brown line.
Druzy center
A carpet of small quartz crystals reflects light more sharply than the waxy chalcedony rim.
Clouded domain
Diffuse white areas contain less sharply resolved banding because scattering obscures internal boundaries.
Natural fracture
A crack may cross bands, follow one weak seam, fill with later silica, or receive modern resin. Continuity must be examined.
Physical and Material Properties
| Property | Typical expression | Practical significance |
|---|---|---|
| Composition | SiO₂, with minor water, trace elements, and mineral inclusions | Identifies a silica aggregate rather than carbonate, jade, or opal. |
| Constituent phases | Microfibrous quartz, variable moganite, granular microquartz, and occasional macroquartz | Explains band-dependent texture and changes in transparency. |
| Crystal system | Trigonal for quartz; aggregate behavior at specimen scale | Individual crystals are microscopic except in late druzy cavities. |
| Hardness | Approximately Mohs 6.5–7 | Suitable for everyday jewelry, though quartz dust and harder gems can still abrade polish. |
| Specific gravity | Approximately 2.58–2.64 | Helps separate agate from lighter opal and heavier jadeite or many carbonates. |
| Tenacity | Brittle, but often tougher than large single-crystal quartz because of fine intergrowth | Cabochons and beads are durable; thin slices, sharp corners, and fractured bands can chip. |
| Cleavage | None | Breakage does not follow one predictable cleavage plane. |
| Fracture | Conchoidal to uneven | Fresh edges can be sharp; polished rims require protection from impact. |
| Luster | Waxy to vitreous | Fine chalcedony appears softer than glassy macroquartz in the same geode. |
| Transparency | Opaque to translucent | Thickness and band texture strongly affect apparent body color. |
| Streak | White | Streak testing is unnecessary and damages fashioned material. |
| Porosity | Low to locally significant at fine pores, fractures, and band boundaries | Allows dye, oil, resin, and contamination to enter selected zones. |
| Acid behavior | Resistant to many ordinary acids; attacked by hydrofluoric acid; associated calcite is much less resistant | Acid tests and acid cleaning are inappropriate for finished or mixed material. |
| Thermal behavior | Quartz is generally stable, but inclusions and fractures can promote thermal shock | Direct flame, rapid heating, and steam are unnecessary risks. |
| Fluorescence | Often inert; variable weak responses from inclusions, coatings, glue, or dye | Useful comparatively but not diagnostic by itself. |
Aggregate toughness
Interlocking microscopic domains can stop a crack from traveling as freely as it might through one large quartz crystal.
Thin-slice fragility
A translucent slice may be only a few millimeters thick. The material remains quartz-hard but loses resistance to bending and edge impact.
Mixed-mineral weakness
Calcite seams, porous matrix, open cavities, and repaired fractures may be softer or more fragile than the agate itself.
Differential polish
Chalcedony, microquartz, calcite, host rock, and resin can polish at different rates, producing relief or undercutting.
Surface haze
Fine scratches, residue, weathering, or wax can make white agate appear duller and more opaque than the interior.
No scratch testing
A scratch crosses band boundaries, damages polish, and does not distinguish natural agate from treated agate or quartz-rich imitations.
Optical Character and Light Behavior
White agate is visually defined by scattering, translucency, band contrast, and surface polish rather than by strong dispersion. Its microscopic quartz domains are doubly refractive, but their random or fibrous orientations usually produce an aggregate optical response rather than a clean single-crystal reading.
| Optical property | Typical observation | Interpretation |
|---|---|---|
| Spot refractive index | Approximately 1.53–1.54 | Consistent with chalcedony and lower than jadeite or many glass imitations. |
| Birefringence | Low at the quartz-domain level; usually not resolved cleanly in a cabochon | Aggregate texture blurs the distinct double reading expected from a large oriented crystal. |
| Transparency | Opaque, translucent, and locally transparent in thin bands | Band microstructure and thickness dominate. |
| Scattering | Strong in milky bands, weaker in dense clear chalcedony | Produces white body color and soft halo effects. |
| Luster | Waxy on chalcedony, vitreous on macroquartz or especially clean polish | One object may show both soft and sharp reflections. |
| Crossed-polarizer response | Aggregate extinction, fibrous patterns, strain, and local quartz domains | Useful for microstructure but not a simple variety test. |
| Iris effect | Spectral color in very thin, finely banded slices under transmitted light | Diffraction by closely spaced bands; rare and cut-dependent. |
| Ultraviolet response | Commonly inert to weak | Contrasting fluorescence may indicate calcite, resin, glue, dye, or another mineral. |
Soft internal glow
Scattered light spreads through the band and returns from a broad area, producing a diffuse luminosity rather than a sharp reflection.
Edge transmission
The thinnest edges reveal hidden translucency and can expose band boundaries that disappear in face-up reflected light.
Thickness darkening
A pale gray or cream tint becomes stronger as the optical path length increases through a thick dome.
Druzy sparkle
Macrocrystalline quartz in an open cavity creates point reflections distinct from the smooth waxy agate rim.
Polish contrast
A high polish increases clarity and band depth; a matte surface emphasizes softness and reduces internal reflections.
Backing effects
Dark, metallic, or colored backing can alter apparent whiteness, translucency, and contrast in thin jewelry components.
Under Magnification
A hand lens or microscope can reveal band continuity, pore structure, granular quartz, dye concentration, filler, polish defects, matrix minerals, and composite construction. Examination should move from the whole pattern to edges, drill holes, fractures, and the reverse.
Non-destructive examination sequence
Use neutral reflected light first, then low-angle light and transmitted light. Ultraviolet comparison can follow after the visible structure is mapped.
- Map the bandsFollow white, gray, cream, and translucent layers around the edge and across the reverse.
- Inspect grain boundariesNatural chalcedony bands vary subtly in luster, porosity, and internal texture.
- Check drill holesDye, resin, wax, and abrasion often concentrate where the surface is unpolished.
- Examine fracturesLook for natural mineral fill, open cracks, resin menisci, bubbles, and color pooling.
- Compare face and edgeA coating or shallow treatment may not penetrate the full thickness.
- Inspect druzy centersQuartz crystals should have natural terminations and attachment, not uniform molded facets.
- Use ultraviolet lightContrasting response can reveal glue, filler, calcite, coating, or a composite backing.
- Retain uncertaintyUse Raman, FTIR, refractive index, or X-ray methods when visual evidence is insufficient.
Band boundaries
Natural boundaries may be sharp, diffuse, split, curved, or locally interrupted. They usually relate coherently to the larger cavity architecture.
Fibrous domains
Fine directional texture can appear at band margins, especially under crossed polarizers or strong oblique light.
Mineral inclusions
Calcite, iron oxide, manganese oxide, clay, host-rock fragments, and quartz crystals may occupy bands or fractures.
Dye concentration
Artificial color commonly collects in porous bands, pits, drill holes, open fractures, and the outer rind.
Polymer clues
Rounded bubbles, flow lines, glossy pools, soft films, and ultraviolet contrast can indicate impregnation or repair.
Polish defects
Orange peel, flat spots, undercut seams, residual scratches, and waxy residue alter how white bands reflect light.
Look-Alikes and Common Misidentifications
Pale color alone is not diagnostic. Identification relies on band architecture, hardness, density, refractive index, fracture, microscopic texture, and the behavior of associated minerals.
| Possible material | Why it resembles white agate | Useful distinctions | Preferred confirmation |
|---|---|---|---|
| White chalcedony | Same mineral aggregate and similar waxy translucency | Lacks visible agate banding or layered architecture | Pattern examination, transmitted light, microscopy |
| Milky quartz | White silica with quartz hardness | Macrocrystalline texture, crystal form or cloudy mass, generally no agate bands | Microscopy, Raman spectroscopy, crystal morphology |
| Calcite or aragonite onyx | White, cream, and honey parallel bands with translucency | Mohs about 3, prominent cleavage, carbonate chemistry, much easier scratching | Raman spectroscopy, refractive index, controlled laboratory analysis |
| Howlite | White body with gray veining and common bead use | Much softer, porous, commonly spiderweb-veined rather than rhythmically banded | Raman spectroscopy, hardness on expendable reference, microscopy |
| Magnesite | White, porous, waxy ornamental material often dyed | Softer carbonate with different density and pore texture | Raman or FTIR, density, microscopy |
| Common opal | White hydrous silica with waxy translucency | Lower hardness and density, different water-related spectroscopy, may craze | Refractive index, Raman or FTIR, density |
| White nephrite | Milky white, waxy, tough, and translucent | Exceptional toughness, fibrous felted texture, different RI and density, no agate banding | Refractometry, spectroscopy, microscopy |
| White jadeite | Translucent white cabochons and high polish | Higher RI and density, granular pyroxene texture, much tougher | Refractometry, FTIR, density |
| Glass | Can imitate milk-white and translucent bands | Bubbles, flow lines, molded texture, lower hardness in many compositions, no natural fibrous architecture | Microscopy, refractive index, Raman spectroscopy |
| Resin composite | Can reproduce white bands, cavities, and glossy polish | Polymer matrix, bubbles, mold seams, low density, repeated fragments | FTIR, microscopy, ultraviolet comparison |
Treatments, Composites, and Confident Identification
Agate has a long history of treatment because differently porous bands accept color selectively. White material may be natural, lightened, coated, backed, impregnated, or assembled with other components. Each intervention should be described separately.
Dyeing
Porous bands can absorb black, blue, red, green, purple, or other dyes. Even a white-dominant object may contain dyed accent bands or a colored rind.
Bleaching and lightening
Chemical treatment may reduce organic or iron-related stains and create a cleaner white appearance. Detection can be difficult without records or laboratory comparison.
Sugar-acid blackening
Traditional black onyx treatment can carbonize sugar absorbed by porous bands, producing deep black beside naturally pale layers.
Impregnation
Wax, oil, or polymer may improve polish, reduce porosity, stabilize fractures, or deepen translucency.
Backing and doublets
Thin white agate may be attached to dark, reflective, or colored backing to increase contrast or support fragile slices.
Composite construction
Fragments, geode rims, resin, glass, and artificial matrix can be assembled into convincing slices, cabochons, or decorative panels.
Evidence hierarchy for identification
Confidence increases when independent observations agree. No single color or band pattern proves natural untreated white agate.
- Coherent band architectureLayers follow cavity geometry, continue around edges, and interact naturally with fractures and inclusions.
- Quartz-range propertiesHardness, RI near 1.53–1.54, density near 2.6, and conchoidal fracture support chalcedony.
- Microscopic textureFibrous or granular silica, natural pores, mineral inclusions, and irregular growth boundaries support geological origin.
- Raman spectroscopyConfirms quartz or chalcedony and separates carbonate, opal, glass, jade, and many imitations.
- FTIR spectroscopyHelps identify polymers, waxes, some dyes, opal, and hydrous components.
- Ultraviolet comparisonMay reveal adhesive, filler, coating, calcite, or uneven treatment.
- Cross-sectional evidenceEdge and reverse views show whether color and bands penetrate the full object.
- ProvenanceCollection records support locality and treatment history but do not replace material testing.
| Observation | Possible interpretation | Why it is not conclusive alone |
|---|---|---|
| Bright white body | Natural strongly scattering chalcedony | Bleaching, coating, resin, and white glass can produce similar appearance. |
| Color concentrated in one band | Natural impurity-rich layer or selective dyeing | Agate porosity naturally varies band by band. |
| Dark outer rind | Natural host rock, manganese stain, or treatment | Surface-only appearance must be compared with an edge or cross-section. |
| Strong edge glow | Dense translucent chalcedony | Thin cutting, resin, oil, and backing can enhance the effect. |
| Uniform glossy surface | High polish | A polymer coating can produce the same gloss across unlike minerals. |
| UV contrast in a crack | Filler or adhesive | Natural calcite and other inclusions may fluoresce differently. |
Localities and Geological Character
White-dominant agate occurs within many agate provinces. The regions below are important for general agate geology and frequently yield pale or white-banded material, but appearance alone cannot establish origin.
Brazil and Uruguay
Large basalt-hosted agate geodes and nodules are associated with the Paraná volcanic province. White, gray, cream, and colorless bands commonly surround quartz centers.
Mexico
Several volcanic districts produce lace, fortification, plume, and eye agates. White lace-like bands are especially familiar in material from northern and central regions.
Botswana
Fine rhythmic gray, white, cream, and brown banding occurs in volcanic nodules and is valued for exceptionally narrow waterline and fortification patterns.
Madagascar
Volcanic and sedimentary settings yield pale chalcedony, banded nodules, geodes, and mixed white-gray agates with varied translucency.
India
Deccan volcanic rocks and long-established cutting centers are associated with agate nodules, banded chalcedony, treated onyx, beads, and carved material.
Germany
Idar-Oberstein became historically important for agate cutting and dyeing, drawing on regional deposits and later imported material.
Lake Superior region
Agates weathered from ancient volcanic rocks display fortification bands, iron coloration, and occasional pale white-gray interiors.
Western United States
Oregon, Montana, Wyoming, Arizona, and neighboring regions contain volcanic and sedimentary agates, including white, gray, plume, moss, and waterline material.
| Context | What to record | Why it matters |
|---|---|---|
| In-situ nodule | Host rock, layer, cavity form, orientation, matrix, date, and coordinates or precise locality | Links the agate to geological setting and preserves formation evidence. |
| River or beach pebble | Watercourse, reach, gravel unit, degree of rounding, and likely source rocks | Transport can mix agates from several formations. |
| Mine or quarry material | Mine, bench, vein, bed, collection date, and whether matrix is original | Commercial labels often lose bed-level context. |
| Historic cut object | Workshop, prior owner, tool marks, treatment, backing, and old labels | Lapidary history can be as important as geological source. |
| Commercial polished stone | Supplier chain, treatment statement, dimensions, reverse, and edge photographs | Color-based locality claims require traceable documentation. |
Assessing White Agate Material
There is no universal scientific grading scale for white agate. Assessment changes with the object: a mineral specimen, geological slice, cameo blank, translucent cabochon, historic carving, and thin geode window each preserve different strengths.
Band definition
Sharp, coherent layers reveal growth architecture. Diffuse clouding can also be attractive when it preserves subtle depth rather than muddying the pattern.
Translucency
Internal glow, edge transmission, and clear windows add optical depth, but transparency alone does not indicate purity or untreated status.
White balance
Snow white, pearl gray, and cream are all natural possibilities. Evaluation should record the actual hue rather than treating only neutral white as desirable.
Pattern composition
Fortifications, waterlines, eyes, lace, and druzy centers gain impact when cutting reveals a coherent visual sequence.
Polish and surface
An even polish should preserve band boundaries without residual scratches, orange peel, undercutting, wax buildup, or polymer film.
Structural integrity
Open fractures, thin unsupported rims, porous matrix, druzy loss, glued backing, and repaired seams determine practical stability.
| Assessment factor | Favorable evidence | Points requiring description |
|---|---|---|
| Identity | Banded chalcedony confirmed by texture and physical or analytical data | Uniform white material labeled agate without visible bands or testing |
| Pattern | Natural continuity around edges, balanced orientation, readable growth sequence | Surface-only print, artificial banding, or cut that obscures structure |
| Color | Stable white, gray, cream, and translucent contrast under neutral light | Uneven bleaching, dye concentration, coating, or edited photography |
| Transparency | Natural internal glow with coherent bands and inclusions | Thin veneer, backed section, resin window, or filled cavity |
| Polish | Even reflection, crisp outline, minimal undercutting | Flat spots, scratches, orange peel, wax film, or softened edges |
| Fractures | Stable mineralized seams or clearly disclosed repair | Open cracks, filler, pressure points, or concealed breakage |
| Matrix | Original host rock or documented geological rind | Reconstructed base, attached matrix, or removed context |
| Treatment | Natural or fully disclosed dye, bleach, impregnation, backing, and repair | Appearance altered without documentation |
| Provenance | Locality, collector, workshop, and prior labels retained | Origin inferred only from pattern or color |
Jewelry, Cutting, and Lapidary Behavior
White agate combines quartz-range hardness, good aggregate toughness, a neutral palette, and varied translucency. It is suitable for many jewelry and decorative uses, but cutting should respect band orientation, thin edges, fractures, mixed minerals, and treatment.
Cabochons
Domes reveal internal glow and protect band edges. Low domes emphasize graphic waterlines; higher domes deepen milk-glass translucency.
Beads
Rounds, barrels, and faceted beads show rhythmic white-gray pattern. Drill holes should be inspected for cracks, dye, and residue.
Cameos and intaglios
Parallel white and contrasting bands allow a cutter to assign different layers to figure, field, and shadow.
Inlay and signet faces
Thin sections provide a clean pale surface, but complete backing support and stable adhesive are essential.
Geode slices
Translucent windows and druzy centers suit pendants and display panels; exposed crystals and thin rims need protection.
Carvings
Dense massive material supports detailed work, while subtle bands can guide relief, contour, and surface contrast.
| Use | Suitability | Design priority |
|---|---|---|
| Pendant | Highly suitable | Protect thin rims, drill holes, and open druzy centers. |
| Earrings | Highly suitable | Keep matched thickness and account for slight band variation. |
| Ring | Suitable | Use a bezel or protected edge for thin slices and high domes. |
| Bracelet | Suitable with care | Expect greater abrasion and impact than in pendants. |
| Bead strand | Highly suitable | Knot or space beads where repeated contact may dull polish. |
| Cameo or seal | Excellent for layered material | Orient parallel bands before carving and preserve adequate support thickness. |
| Inlay | Suitable | Support fully and match adhesive to treatment and surrounding materials. |
| Thin light panel | Suitable but fragile | Use broad backing, protected edges, and low-heat illumination. |
Orient before sawing
Study the nodule from several directions. One cut may reveal fortification architecture while another produces nearly blank white fields.
Cut wet
Water controls heat, carries away abrasive particles, and reduces airborne crystalline-silica dust.
Progress through scratches
Each grinding stage should remove the previous scratch pattern before polishing begins.
Use light, even pressure
Excess pressure can chip thin edges, undercut soft seams, and heat localized areas.
Expect mixed response
Druzy quartz, chalcedony, calcite, host rock, and polymer fill do not polish identically.
Preserve context
Before trimming a specimen, document the rind, cavity orientation, waterlines, and associated minerals that cutting will remove.
Care, Cleaning, Storage, and Conservation
Solid untreated agate is durable, but many objects include dye, wax, resin, glue, backing, calcite, open fractures, or delicate druzy quartz. Cleaning should follow the complete object rather than quartz hardness alone.
Use mild manual cleaning
Brief lukewarm water, mild soap, and a soft cloth or soft brush are appropriate for stable untreated material.
Remove grit before wiping
Quartz-rich dust can scratch polish. Rinse or blow away loose particles before using a cloth.
Avoid long soaking
Dye, resin, wax, glue, porous matrix, and metal settings can be affected by prolonged immersion.
Avoid harsh chemistry
Strong solvents, bleach, acids, and aggressive jewelry cleaners can alter treatments and associated minerals.
Store separately
Agate can scratch softer stones and can itself be abraded by topaz, corundum, diamond, and hard metal edges.
Protect thin slices
Support broad surfaces and avoid bending, edge impact, tight clamps, and pressure across open cavities.
Inspect backing and glue
Moisture and heat can weaken old adhesive or alter a colored backing even when the agate remains stable.
Avoid thermal shock
Sudden temperature change can extend fractures or detach mixed-mineral and composite components.
Retain old labels
Historic locality, treatment, workshop, and ownership records may carry more information than a newly polished surface.
| Method or risk | Possible effect | Preferred approach |
|---|---|---|
| Dry wiping with grit present | Fine scratches and loss of polish | Remove loose particles before wiping. |
| Long soak | Dye bleeding, adhesive weakening, wax loss, or moisture entering backing | Use brief controlled cleaning. |
| Ultrasonic cleaner | Fracture growth, glue failure, and damage to druzy or composite sections | Use manual cleaning, especially when treatment is unknown. |
| Steam cleaner | Thermal shock and treatment damage | Use lukewarm water only. |
| Acid or bleach | Damage to calcite, dye, metal, adhesive, and surface finish | Avoid chemical testing and harsh cleaners. |
| Solvent swab | May lift dye, soften resin, or damage backing | Leave treatment testing to a laboratory. |
| Impact | Edge chips, broken slices, fracture extension | Use protected settings and padded storage. |
| Direct flame or hot repair tool | Cracking, adhesive failure, and treatment alteration | Remove the stone before high-temperature metal work where feasible. |
Photography and Display
White agate is easy to overexpose and difficult to represent accurately. A faithful image preserves the difference between snow white, pearl gray, cream, translucent bands, surface polish, and the darker context that makes pale layers readable.
Use a neutral background
Mid-gray, charcoal, slate, or muted warm beige provides contrast without tinting polished white surfaces excessively.
Set white balance carefully
A neutral reference prevents pale gray bands from becoming blue and cream bands from appearing artificially yellow.
Use broad diffused light
A large soft source reveals band transitions and polish without turning the surface into a featureless white glare.
Add controlled backlight
A small transmitted-light view reveals edge glow, hidden waterlines, fractures, and the true extent of translucent material.
Protect highlight detail
Expose for the brightest band or quartz crystal so texture and polish remain visible.
Include edge and reverse
These views document thickness, treatment penetration, backing, joins, rind, and band continuity.
Use low-angle relief
Raking light reveals scratches, undercut seams, orange peel, fracture fill, and subtle waterlines.
Record scale
Overall, close, transmitted-light, edge, reverse, and scale views create a useful visual record.
Scientific Context
Agate connects mineral physics, low-temperature geochemistry, silica polymorphism, crystal-growth theory, fluid-rock interaction, volcanic alteration, spectroscopy, and conservation science. White bands are especially useful because subtle textural differences are not masked by strong chromophore color.
Silica polymorphism
Quartz and moganite proportions provide evidence for formation, aging, and later structural reorganization within chalcedony.
Fibrous crystallization
Microscopy and diffraction examine how quartz-rich fibers nucleate, bend, split, and organize into spherulitic or wall-normal bands.
Band self-organization
Models test the roles of diffusion, supersaturation, polymerization, impurities, nucleation density, and episodic fluid supply.
Fluid chemistry
Trace elements, stable isotopes, fluid inclusions, and associated minerals can constrain fluid sources and temperature.
Volcanic alteration
Agates record the release and redistribution of silica during alteration of glass, feldspar, and volcanic rock.
Optical scattering
White bands provide natural examples of how submicroscopic structure creates opacity without a white pigment.
Treatment science
Raman, FTIR, UV-visible spectroscopy, microscopy, and chemical analysis distinguish natural inclusions from dye, polymer, wax, and coating.
Historical technology
Cutting, staining, heat treatment, cameo carving, and polishing show how material properties shaped lapidary traditions.
Conservation science
Condition mapping separates original agate, matrix, old adhesive, restoration, surface film, and modern display materials.
History and Cultural Context
Agate has been cut, drilled, carved, traded, and collected for thousands of years. Its durability, fine grain, layered color, and ability to take a high polish made it suitable for beads, seals, signets, vessels, cameos, intaglios, handles, and inlay. Historical objects were usually described as agate, chalcedony, sardonyx, or onyx rather than by the modern broad category white agate.
The name agate is traditionally connected with the Achates River of ancient Sicily, although historical mineral names and modern geological definitions do not always align perfectly. Onyx became especially important where straight parallel layers allowed cutters to separate pale and dark zones in relief carving.
European cutting centers, particularly Idar-Oberstein, developed sophisticated agate working and staining traditions. Regional deposits supported early production; later imported agates expanded the available colors, sizes, and patterns. Treatment became part of lapidary history rather than a modern invention.
White agate-specific ancient symbolism is difficult to establish because historical texts rarely separate pale banded chalcedony from agate and onyx generally. Modern associations with clarity, calm, boundaries, or simplicity are contemporary interpretations and should not be presented as one universal ancient belief.
Beads, seals, and durable ornaments
Agate and related chalcedonies are shaped for personal adornment, sealing, exchange, and ritual or status objects in many regions.
Layered stone becomes pictorial material
Parallel bands are exploited in cameos and intaglios, with pale and dark layers assigned to different parts of the design.
Trade names and lapidary knowledge expand
Agate, onyx, chalcedony, sardonyx, and jasper circulate through changing mineralogical and commercial vocabularies.
Regional cutting centers develop
Specialized workshops refine sawing, grinding, drilling, carving, polishing, and selective color treatment.
Global material networks
Imported agates support larger production while mineralogy, microscopy, and geological mapping refine the scientific understanding of chalcedony.
Gemology and materials analysis
Refractive index, spectroscopy, X-ray methods, and microscopy separate silica agate from glass, carbonate onyx, opal, and treated material.
Microstructure and provenance
Researchers investigate moganite, fibrous growth, fluid chemistry, self-organized banding, treatment, and conservation.
Agate and onyx terminology
Historical names often follow visual appearance or craft use rather than modern mineralogical boundaries.
White layers in carving
Pale bands are valuable because they can become figures, borders, inscriptions, or highlights against darker layers.
Treatment as craft history
Selective dyeing and blackening exploit natural differences in band porosity and belong to the documented history of agate working.
Modern symbolism
Contemporary meanings are best presented as reflective readings of layering, translucency, quiet color, and structural continuity.
Contemporary Symbolic Interpretation
White agate offers grounded symbolic themes drawn from its real material character: repeated layers, selective translucency, boundaries that follow changing space, quiet color produced by complex microstructure, and gradual formation without loss of continuity.
Clarity without exposure
A translucent band passes light without becoming fully transparent, offering a model for openness with retained privacy.
Layered continuity
Each band records a new condition while remaining part of one coherent object.
Quiet is structured
The pale surface appears simple, yet microscopic texture creates its entire visual character.
Boundaries follow reality
Fortification bands adapt to the actual cavity rather than forcing one ideal shape.
Subtle differences matter
White, gray, cream, and colorless layers are close in tone but distinct in texture and light behavior.
Open centers remain useful
A geode cavity shows that completion does not always require filling every space.
The Band-by-Band Review
- Choose one complex situation.
- Separate it into chronological or functional layers.
- Name what changed between each layer.
- Identify which layer still shapes the present.
- Address that layer before treating the whole situation as one problem.
The Translucent Boundary
- Name one area where complete openness would be unwise.
- Define what information needs to pass through.
- Define what should remain protected.
- Create one practical boundary that allows useful exchange.
- Review whether the boundary is clear without becoming rigid.
The Quiet-Structure Audit
- Choose one calm-looking result.
- List the hidden structures that sustain it.
- Mark one support that is becoming porous or inconsistent.
- Repair the support before changing the appearance.
- Record what becomes clearer afterward.
The Open-Center Decision
- Name one unfinished space.
- Ask whether it is a defect, a future capacity, or a necessary opening.
- Identify the minimum structure needed around it.
- Leave it open deliberately or define the next filling step.
- Document the decision so openness is not mistaken for neglect.
Documentation and Responsible Description
A useful record separates material identity, visible pattern, color, transparency, treatment, cut, locality, condition, and confidence. That structure allows later analysis to refine the name without losing the evidence.
Identity
Record white agate, white chalcedony, straight-banded onyx, geode slice, or mixed silica-carbonate material at the most defensible level.
Pattern
Describe fortification, waterline, lace, eye, straight banding, breccia, druzy center, and band orientation.
Appearance
Record hue, tone, translucency, edge glow, polish, inclusions, and lighting conditions.
Geological context
Retain host rock, nodule form, cavity orientation, mine or locality, collector, date, and original labels.
Treatment
Document dye, bleaching, blackening, wax, oil, resin, coating, backing, assembly, and repair.
Condition
Map chips, fractures, thin rims, druzy loss, undercut seams, failing adhesive, scratches, and unstable matrix.
| Record element | Why it matters | Example wording |
|---|---|---|
| Object name | Separates agate from plain chalcedony and imitations. | White-dominant fortification agate with translucent gray chalcedony bands. |
| Composition | Connects the object with silica mineralogy. | Microcrystalline SiO₂; quartz-rich chalcedony with variable moganite. |
| Pattern | Records the visible growth architecture. | Concentric fortification rim crossed by three horizontal waterlines. |
| Color and light | Allows comparison without relying on edited images. | Neutral white to pearl gray in reflected light; warm cream edge transmission. |
| Form | Describes what is physically present. | Polished oval cabochon cut from a thin geode rim; no open cavity. |
| Locality | Preserves geological value. | Named quarry and volcanic unit, region, country; collector and date recorded. |
| Measurements | Supports comparison and care. | 42.6 × 31.2 × 6.8 mm; mass 54.3 ct. |
| Treatment | Separates natural growth from intervention. | No dye detected; reverse locally resin stabilized; no backing. |
| Condition | Guides handling and future comparison. | Minor edge abrasion; one stable mineralized seam; polish intact. |
| Images | Records band continuity and treatment. | Face, reverse, edge, transmitted-light, low-angle, ultraviolet, and scale views. |
Continue Into the Specialist White Agate Guides
The following articles examine white agate through geological formation, mineral physics, locality, historical study, legends, contemporary symbolic practice, literary narrative, and a focused reflective exercise.
Frequently Asked Questions
What is white agate?
White agate is a descriptive name for banded chalcedony dominated by white, near-white, pale gray, cream, or colorless translucent layers.
Is white agate a separate mineral species?
No. It is a color and pattern variety within the agate and chalcedony family.
What is white agate made of?
It is composed chiefly of microcrystalline SiO₂, including quartz-rich chalcedony, variable moganite, microquartz, and minor inclusions.
What is the difference between agate and chalcedony?
Chalcedony is the microcrystalline silica material. Agate is chalcedony with visible banding or layered architecture.
Can white chalcedony be called white agate?
Only when visible bands or layered growth are present. Uniform white material without banding is more precisely white chalcedony.
Why does white agate look white if quartz is colorless?
Submicroscopic pores, inclusions, grain boundaries, fibers, and fractures scatter light, producing a milky or opaque white appearance.
Why do some edges glow cream or honey?
Thin edges transmit more light and reveal weak iron staining, surrounding reflections, and a shorter optical path through the material.
What is fortification agate?
It is agate with repeated contour-like bands that trace the irregular shape of a cavity wall.
What is waterline agate?
It contains straight or nearly level parallel bands formed across a partly filled cavity rather than following the outer wall.
What is lace agate?
Lace agate has scalloped, looped, folded, or frilled banding. The term describes pattern rather than one species or locality.
What is eye agate?
It contains small concentric circular or oval bands around local growth centers.
What is iris agate?
Very thin, finely banded agate can diffract transmitted light and produce spectral colors. The effect depends on band spacing and cut thickness.
Is white onyx the same as white agate?
Traditional gemological onyx is straight, parallel-banded agate, so white onyx can be a type of white agate. Architectural onyx is often banded calcite or aragonite instead.
How is white agate different from milky quartz?
Milky quartz is macrocrystalline quartz made cloudy by inclusions or defects and usually lacks agate banding.
How is white agate different from common opal?
Opal is hydrous amorphous to poorly crystalline silica with lower hardness and density. Agate is quartz-rich microcrystalline silica.
How is white agate different from howlite?
Howlite is much softer, more porous, and commonly shows gray spiderweb veining rather than rhythmic chalcedony bands.
How is white agate different from magnesite?
Magnesite is a softer carbonate with different density, spectroscopy, and pore texture.
How is white agate different from white jade?
Jadeite and nephrite are much tougher, have different refractive indices and densities, and lack agate-style banding.
What is the Mohs hardness of white agate?
Approximately 6.5 to 7.
What is the specific gravity of white agate?
Commonly approximately 2.58 to 2.64, depending on porosity and inclusions.
What is the refractive index of white agate?
A spot reading is commonly near 1.53 to 1.54.
Does white agate have cleavage?
No. It breaks with conchoidal to uneven fracture.
Is white agate transparent?
It ranges from opaque to translucent. Very thin clean bands can approach transparency.
Does white agate fluoresce?
It is often inert or weak. Calcite, resin, glue, dye, and other inclusions may fluoresce differently.
Where does white agate form?
Common settings include volcanic cavities, fractures, veins, sedimentary nodules, replacement bodies, and geodes.
Does agate form from one layer of silica gel?
No single mechanism explains every agate. Episodic fluids, diffusion, crystallization fronts, self-organization, impurities, and cavity geometry can all contribute.
Why do some agates have quartz crystals in the center?
Chalcedony did not completely fill the cavity, leaving open space where later macrocrystalline quartz grew.
Can white agate contain calcite?
Yes. Calcite may occur in veins, cavities, or associated matrix and changes both identification and care.
Is white agate commonly dyed?
Agate is frequently dyed because some bands are porous. White-dominant pieces may be natural, selectively dyed, bleached, or combined with colored bands.
Can white agate be bleached?
Yes. Lightening treatments can reduce organic or iron-related staining, though treatment may be difficult to detect visually.
What is sugar-acid treatment?
It is a traditional method used to blacken porous agate bands by introducing sugar and carbonizing it, commonly in black onyx production.
Can white agate be resin stabilized?
Fractured or porous material may be impregnated with resin or wax to improve stability and polish. Treatment should be disclosed.
How can dye be detected?
Possible clues include color pooling in pores, fractures, drill holes, and outer rinds. Laboratory spectroscopy and microscopy provide stronger evidence than solvent tests.
Can a hot needle test be used?
No. It can damage resin, coating, backing, and the stone while producing ambiguous results.
Should acetone be used to test white agate?
Not on a finished object. Solvents can mobilize dye, soften adhesive, damage coating, and erase treatment evidence.
Is white agate suitable for rings?
Yes. Solid cabochons are generally suitable, while thin slices and open geode forms benefit from protective settings.
Can white agate be worn every day?
It is durable enough for regular wear, but abrasive grit, hard impact, sharp edges, and treated or fractured zones still require care.
Can white agate be carved?
Yes. Its fine grain, hardness, and polish make it suitable for cameos, intaglios, seals, beads, and sculpture.
How should white agate be cleaned?
Use brief lukewarm water, mild soap, and a soft cloth or brush after loose grit is removed.
Can white agate go in an ultrasonic cleaner?
Solid untreated agate may tolerate some cleaning methods, but ultrasonic cleaning is best avoided when fractures, dye, resin, glue, backing, or druzy cavities are present or unknown.
Can white agate be steam cleaned?
Steam is unnecessary and can cause thermal shock or damage treatments and adhesives.
Can white agate be soaked in water?
Brief washing may be safe for stable untreated material, but long soaking can affect dye, wax, resin, glue, backing, and porous matrix.
Does white agate yellow with age?
Natural chalcedony is generally stable. Surface oils, residue, iron staining, adhesive, backing, or treatment can warm the appearance.
Does sunlight fade white agate?
Natural white chalcedony is generally light stable. Dyes, adhesives, coatings, and backing may be less stable.
How should white agate be stored?
Store it separately in a soft compartment away from harder gems and from objects it could scratch.
Why should agate be cut wet?
Water controls heat and suppresses respirable crystalline-silica dust during sawing, grinding, drilling, and sanding.
Can locality be identified from pattern?
Pattern can suggest a regional style but cannot prove source. Similar white fortification, waterline, and lace patterns occur in unrelated deposits.
What should a white agate label include?
Record material identity, band style, color, translucency, form, locality, dimensions, treatment, condition, and analytical confidence.
Does white agate have one ancient symbolic meaning?
No. Historical traditions usually concern agate or onyx broadly, and meanings differ by region and period.
What does white agate symbolize in modern practice?
Contemporary interpretations often draw on layering, clarity, calm attention, selective transparency, adaptive boundaries, and gradual formation.
