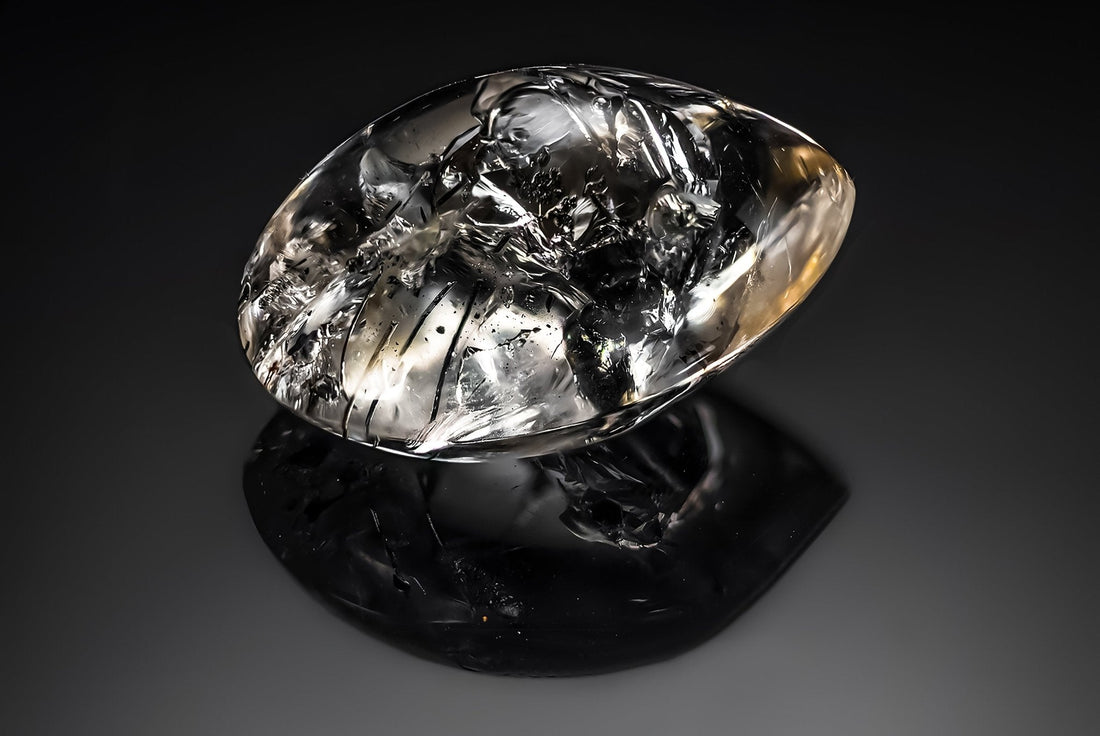

Quartz with inclusions
Share
Quartz with Inclusions: Mineral Gardens, Fluid Archives, and Growth Records
Included quartz is not one mineral variety but a broad descriptive category for quartz that preserves other minerals, trapped fluids, gas bubbles, crystal-shaped cavities, healed fractures, or earlier growth surfaces. A golden rutile needle, green chlorite phantom, black tourmaline rod, red hematite platelet, or mobile bubble may record a different stage of the host crystal’s development. Read carefully, these internal features turn transparent quartz into a three-dimensional archive of mineral growth, fluid circulation, pressure change, deformation, and geological time.
Quick Facts
The host mineral remains quartz. The term “included quartz” describes what the crystal preserves internally, not a separate mineral species.
Identity, Terminology, and Material Boundaries
Included quartz is an umbrella description. The host is crystalline quartz, while the visible internal feature may be another mineral, a trapped fluid, a gas cavity, a healed fracture, an earlier growth surface, or a combination of several generations.
The word inclusion is used broadly in gemology and mineralogy for material or structure enclosed by a host. Some inclusions were present before the quartz began to surround them. Others crystallized at approximately the same time. Still others entered through fractures after much of the host crystal had already formed.
A precise description separates at least four questions: What is the host? What is the enclosed feature? When did it enter or form? Has either the host or the feature been altered by treatment, polishing, weathering, or repair?
Solid mineral inclusion
A crystal or aggregate enclosed in quartz, such as rutile needles, tourmaline rods, chlorite plates, hematite flakes, pyrite cubes, brookite crystals, or feldspar grains.
Fluid inclusion
A microscopic or eye-visible cavity containing liquid, vapor, dissolved salts, hydrocarbons, carbon dioxide, daughter crystals, or several phases together.
Growth feature
An earlier quartz outline, color zone, skeletal layer, or deposited film preserved when crystal growth paused and later resumed.
Healed fracture
A former crack that admitted fluid and then resealed through renewed quartz growth. It may appear as a veil, fingerprint, feather, or planar trail of tiny cavities.
Negative crystal
A cavity whose walls follow quartz crystallography. It may be empty, fluid filled, multiphase, or shaped like a miniature faceted crystal.
Surface deposit
A coating or mineral crust attached to the outside of quartz. It may be geologically related, but it should not be described as an internal inclusion unless quartz later overgrew it.
When an Inclusion Formed
Timing terms describe the relationship between the enclosed feature and the host quartz. They are interpretive tools rather than guarantees based on appearance alone.
| Timing term | Meaning | Possible example | Interpretive caution |
|---|---|---|---|
| Protogenetic | The inclusion existed before the surrounding quartz grew. | A pre-existing tourmaline, rutile, mica, feldspar, or oxide crystal later enclosed by quartz. | The enclosed mineral may continue growing while quartz surrounds it, creating a more complicated history than the term suggests. |
| Syngenetic | The inclusion and host formed during the same broad growth episode. | Rutile, chlorite, hematite, or another phase nucleating while quartz faces advance. | Microscopic textural evidence is often required to establish true co-growth. |
| Epigenetic | The feature entered or formed after the host crystal had substantially developed. | Iron oxides introduced along a fracture, or a secondary mineral deposited in a later cavity. | Later quartz may reseal the pathway and make the feature appear completely enclosed. |
| Primary fluid inclusion | Fluid trapped during growth of the host face on which the cavity occurs. | Isolated cavities or growth-zone arrays following a crystal face. | Primary origin must be demonstrated from spatial relationship, not assumed from one isolated bubble. |
| Pseudosecondary fluid inclusion | Fluid trapped in a fracture that formed while the crystal was still growing and was later overgrown. | A planar trail beginning at an older surface but terminating inside later growth. | Distinguishing it from primary or fully secondary trails may require polished sections and microscopy. |
| Secondary fluid inclusion | Fluid trapped along a fracture that cut the completed or nearly completed host. | A healed fracture trail crossing growth zones and reaching the present surface. | Later breakage or polishing can remove the original surface connection. |
How Included Quartz Develops
Included quartz forms in hydrothermal veins, pegmatites, alpine fissures, metamorphic cavities, volcanic environments, and sedimentary or diagenetic systems. The exact inclusion association reflects temperature, pressure, host-rock chemistry, fluid composition, redox state, and growth rate.
- Silica-rich fluid enters open spaceQuartz commonly grows from hydrothermal or metamorphic fluids circulating through cavities, fissures, veins, and pegmatitic pockets.
- Associated minerals nucleateRutile, tourmaline, chlorite, hematite, feldspar, mica, titanium oxides, sulfides, or other phases may form before or beside quartz.
- Quartz overgrows the associationAdvancing crystal faces enclose solids, microscopic droplets, vapor cavities, and particles adhering to growth surfaces.
- Growth pauses or chemistry changesA deposited film, included mineral layer, etch surface, or color zone marks an earlier crystal outline.
- Growth resumesNew transparent quartz encloses the earlier outline and produces a phantom or layered crystal.
- Fractures admit later fluidsTectonic stress, cooling, or pressure change opens pathways that may carry new minerals and fluids into the host.
- Fractures healQuartz redeposition seals the pathway while leaving planar trails of cavities or mineral particles.
- Later weathering modifies exposed areasSurface-reaching inclusions may oxidize, dissolve, stain, loosen, or become preferentially undercut during polishing.
A single included quartz crystal may preserve a sequence of mineral growth, interrupted faces, fluid pulses, fracture opening, healing, and renewed growth rather than one uninterrupted event.
Solid Inclusion Atlas
Visual identification is provisional. Color and shape narrow the possibilities, but several minerals can produce similar needles, plates, clouds, or metallic grains.
| Possible inclusion | Typical appearance | Common color | Useful distinctions |
|---|---|---|---|
| Rutile | Straight to slightly bent acicular crystals, isolated needles, dense sprays, or intersecting sagenitic networks. | Golden yellow, copper, reddish brown, silver-gray, or nearly black. | Frequently highly reflective. Twinning and crystallographic relationships may create repeated angular intersections. |
| Tourmaline | Prismatic rods, dark needles, broken segments, or thicker striated crystals. | Black, green, brown, pink, or multicolored. | Commonly more substantial and less mirror-bright than rutile. Cross sections may appear triangular or rounded-triangular. |
| Actinolite, riebeckite, or other amphibole | Fine fibers, silky bundles, needles, curved sprays, or felted aggregates. | Green, blue-green, gray, brown, or dark blue. | May look softer and more fibrous than rutile. Species-level identification generally requires spectroscopy or diffraction. |
| Chlorite | Platelets, mossy clusters, clouds, phantoms, rosettes, landscape-like aggregates, or dark green films. | Pale green, moss green, olive, gray-green, or nearly black. | Frequently associated with alpine fissures, metamorphic environments, phantoms, and scenic “garden” material. |
| Hematite | Red to metallic plates, hexagonal flakes, dust, films, rosettes, or iron-rich caps. | Red, burgundy, bronze, steel-gray, or black. | Thin platelets can produce strong reflective flashes. Very fine particles may create an overall red body color. |
| Goethite or lepidocrocite | Needles, blades, flakes, sprays, or fine red-orange to brown particles. | Yellow-brown, orange, rust red, bronze, or dark brown. | Commonly involved in material sold as fire quartz or strawberry quartz. Exact species should not be assigned from color alone. |
| Pyrite | Cubes, pyritohedra, irregular metallic grains, or small aggregates. | Brass yellow. | Geometric metallic crystals are distinctive, though chalcopyrite and other sulfides may require separation. |
| Brookite | Thin tabular crystals, blades, striated plates, or dark submetallic forms. | Brown, reddish brown, dark gray, or black. | A titanium dioxide polymorph. May occur with rutile, anatase, chlorite, or alpine-type mineral associations. |
| Anatase | Small bipyramids, tabular crystals, plates, or dark grains. | Blue, brown, yellow-brown, gray, or black. | Another titanium dioxide polymorph. Habit and spectroscopy help separate it from brookite and rutile. |
| Ajoite or papagoite | Fibrous wisps, blue veils, sprays, clouds, or fine included crystals. | Blue-green, turquoise, or pale sky blue. | Rare copper-silicate associations require careful locality and laboratory support; blue color alone is not sufficient. |
| Gilalite | Tiny rounded aggregates, fibrous clusters, or vivid blue inclusions. | Turquoise to intense blue. | Known from unusual copper-rich associations. Material is rare and frequently over-attributed in trade. |
| Dumortierite | Fibers, needles, sprays, or dense blue inclusions. | Blue, violet-blue, or gray-blue. | Can produce blue quartz aggregates and included crystals. Spectroscopic confirmation is preferable. |
| Epidote | Prismatic grains, needles, fans, or green to yellow-green crystals. | Pistachio green, olive, yellow-green, or brown-green. | Typically higher relief and more distinctly prismatic than chlorite under magnification. |
| Calcite | Rhombohedra, scalenohedra, irregular crystals, or partly dissolved forms. | Colorless, white, yellow, brown, or pink. | May occur as protogenetic crystals or as later cavity fill. Dissolution can leave calcite-shaped negative spaces. |
| Feldspar or mica | Blocky grains, plates, books, flakes, or pale crystals. | Colorless, white, gray, pink, green, or brown. | Common in pegmatitic quartz. Cleavage and crystal habit may remain visible through the host. |
Fluid Inclusions, Gas Bubbles, and Negative Crystals
A fluid inclusion is a sealed microcavity containing a sample of fluid present during crystal growth or fracture healing. Its contents may be far more complex than ordinary water.
Single-phase inclusion
A cavity appearing to contain one visible phase at room temperature, commonly liquid or vapor. Additional dissolved components may remain invisible.
Two-phase inclusion
A liquid and vapor bubble occur together. The bubble may move when the specimen is gently tilted if the cavity is sufficiently large and unobstructed.
Multiphase inclusion
Liquid, vapor, daughter crystals, immiscible fluids, or solid particles coexist in one cavity. Salt crystals and carbon dioxide phases can be scientifically significant.
Hydrocarbon-bearing inclusion
Oil, bitumen, methane-rich fluid, or other hydrocarbons may occupy cavities. Some fluoresce under ultraviolet illumination, but response varies.
Negative crystal
A cavity adopts faces controlled by the quartz lattice. It may be empty, liquid filled, vapor rich, multiphase, or partially lined with later minerals.
Healed-fracture trail
Rows of small cavities outline an earlier crack. Their planar arrangement may appear as a veil, feather, fingerprint, or reflective sheet.
| Observation | Possible meaning | Important limitation |
|---|---|---|
| Mobile bubble | Eye-visible liquid and vapor coexist in a cavity with enough internal space for movement. | The liquid is not necessarily pure water, and mobility alone does not establish geological age or authenticity. |
| Stationary bubble | The bubble may be pinned by cavity shape, daughter crystals, wetting behavior, or a narrow neck. | Lack of movement does not mean the cavity is empty or artificial. |
| Faceted cavity | Host-controlled negative crystal or partly healed dissolution cavity. | A solid transparent crystal can mimic a cavity until focus and lighting are changed. |
| Visible daughter crystal | A mineral precipitated from trapped fluid after sealing, commonly during cooling. | Identification requires spectroscopy, microthermometry, or chemical analysis. |
| Blue-white ultraviolet glow | Some hydrocarbons or organic compounds may fluoresce. | Adhesive, resin, oil, surface contamination, and other minerals may produce similar fluorescence. |
| Planar cavity array | Healed fracture and secondary or pseudosecondary fluid-inclusion trail. | Orientation relative to growth zones and the present surface is needed for timing interpretation. |
Phantoms, Growth Zoning, and Healed Fractures
Some of the most dramatic structures in included quartz are not separate crystals at all. They are preserved surfaces and pathways within the quartz itself.
Phantom
An earlier crystal outline marked by chlorite, hematite, clay, iron oxides, fluid inclusions, or another deposited layer before transparent growth resumed.
Color zoning
Changes in trace elements, irradiation response, defects, or growth conditions produce bands or sectors of amethyst, smoky, citrine, milky, or colorless quartz.
Skeletal or hopper growth
Edges and corners advance faster than central faces, leaving stepped or hollow-looking geometry that may later be partly filled by renewed quartz.
Growth interference
Adjacent crystals, mineral grains, or cavity walls interrupt a face and create imprints, contact marks, irregular sectors, or partial overgrowths.
Healed fracture veil
A crack resealed by quartz leaves a reflective plane, feather, fingerprint, or cavity trail. Thin-film interference may produce internal rainbow colors.
Dendritic deposit
Iron or manganese oxides grow along a narrow fracture or interface in branching patterns. They are often planar rather than volumetric.
Pattern Vocabulary
Sagenitic and acicular
Dense needles, intersecting networks, parallel fibers, sprays, and isolated rods. The term sagenitic describes appearance rather than one mineral species.
Moss, landscape, and lodolite
Three-dimensional chlorite, clay, oxide, and mineral aggregates create scenic layers, hills, clouds, and suspended botanical forms.
Earlier crystal outlines
Triangular terminations, stepped pyramids, full crystal silhouettes, and repeated interior outlines reveal growth interruptions.
Confetti and sparkle
Hematite, goethite, lepidocrocite, mica, or other thin crystals create red, bronze, gold, orange, or silver flashes.
Hair and silk
Very fine parallel or crossing inclusions that appear thread-like, satin-like, or hair-like under reflected light.
Rods and bars
Thicker prismatic inclusions such as tourmaline or amphibole crossing the host as graphic dark or colored elements.
Cloud and fog
Dense microscopic particles, minute fluid inclusions, or fine mineral aggregates reduce transparency and form suspended zones.
Dendrite
A branching iron- or manganese-oxide deposit, commonly restricted to a fracture or interface rather than filling a volume.
Veil and fingerprint
A healed fracture composed of reflective microcavities, sometimes with rainbow interference or branching feather-like edges.
Window and negative crystal
A clear cavity, open optical zone, or host-shaped void that reveals internal geometry under side or transmitted light.
Physical and Optical Properties of the Quartz Host
| Property | Typical quartz value | How inclusions affect observation |
|---|---|---|
| Chemistry | SiO₂. | Dense or reactive inclusions can modify bulk chemistry measured across an impure sample. |
| Crystal system | Trigonal alpha quartz under ordinary surface conditions. | Crystal habit may be distorted by contact growth, twinning, skeletal development, or inclusions reaching faces. |
| Hardness | Mohs 7. | A surface-reaching mica, chlorite, sulfide, carbonate, or fracture fill may be much softer than the host. |
| Specific gravity | Approximately 2.65. | Heavy minerals such as hematite, rutile, pyrite, or sulfides can raise a specimen’s average density slightly. |
| Refractive index | Approximately 1.544–1.553. | Individual inclusions may show markedly higher relief, lower relief, metallic opacity, or their own double refraction. |
| Birefringence | Approximately 0.009. | Strain around inclusions and healed fractures may create anomalous interference patterns. |
| Optical character | Uniaxial positive. | Polysynthetic twinning, strain, multiple grains, and included crystalline phases complicate polariscope observations. |
| Pleochroism | Absent or negligible in colorless quartz. | Included minerals may be strongly pleochroic and produce directional color changes within the otherwise non-pleochroic host. |
| Luster | Vitreous on crystal faces and polished surfaces. | Surface-reaching inclusions can create metallic, silky, pearly, resinous, or matte points within one polish. |
| Cleavage | No true cleavage. | Included minerals may cleave, and planar healed fractures can become preferred breakage paths. |
| Fracture | Conchoidal to uneven. | Internal cavities and inclusion clusters may redirect fracture or produce local chipping. |
| Transparency | Transparent to translucent or opaque. | Particle size, inclusion density, fluid arrays, fractures, and surface condition control apparent clarity. |
| Fluorescence | Variable and often weak. | Hydrocarbons, accessory minerals, resin, dye, and surface deposits may fluoresce independently. |
| Piezoelectricity | Present in non-centrosymmetric quartz. | Natural inclusions and defects generally make ornamental material unsuitable for precision oscillator applications. |
Under Magnification
Examination is most effective when lighting is changed deliberately. One illumination method rarely reveals surface condition, three-dimensional placement, mineral habit, fluid phases, and fracture relationships equally well.
Non-destructive examination sequence
Begin with the complete object before increasing magnification. Record orientation, natural faces, polished areas, fractures, drilled zones, backing, and matrix.
- Diffuse reflected lightMap surface-reaching inclusions, polish variation, coatings, abrasion, chips, and repairs.
- Raking lightReveal relief, undercut grains, fracture openings, surface films, pits, and polishing drag.
- Transmitted lightEstablish depth, parallax, internal color, bubble form, phantom outlines, and inclusion continuity.
- Darkfield illuminationHighlight reflective needles, cavities, healed fractures, platelets, and pale inclusions against a dark background.
- Fiber-optic pinpoint lightActivate individual rutile needles, metallic flakes, crystal faces, and small fluid cavities.
- Crossed polarizersObserve quartz strain, twinning, growth sectors, and the anisotropy of included crystals.
- Ultraviolet illuminationCheck for hydrocarbon response, resin, adhesive, dye, or fluorescent mineral inclusions without treating the response as diagnostic alone.
- Multiple focus levelsFollow an inclusion through depth to distinguish a true internal crystal from a surface scratch, coating, or flat printed effect.
Needle habit
Record straightness, taper, branching, termination, twinning, reflectivity, curvature, and whether needles cross or share preferred directions.
Fluid phase count
Look for liquid, vapor, daughter crystals, immiscible droplets, opaque solids, and movement without changing specimen temperature.
Growth relationships
Determine whether an inclusion cuts a growth zone, rests on an earlier face, continues into later overgrowth, or follows a healed fracture.
Three-dimensional structure
Parallax during rotation distinguishes volumetric gardens from planar dendrites, surface films, and fracture-bound deposits.
Platelet reflectivity
Thin hematite, mica, goethite, lepidocrocite, or other plates may switch from dark to brilliant as their faces meet the light.
Treatment evidence
Watch for resin menisci, dye concentrations, filled cavities, coating abrasion, glue lines, assembled layers, or fractures that stop at a treated surface.
Identification, Treatments, and Imitations
| Material or treatment | Why it resembles included quartz | Useful distinctions | Best confirmation |
|---|---|---|---|
| Glass with fibers or glitter | Can imitate rutile, hematite platelets, metallic sparkle, bubbles, and transparent host material. | Round gas bubbles, mold features, flow texture, lower hardness, repeated particles, and absence of quartz optical behavior may occur. | Microscopy, refractive index, polariscope examination, spectroscopy, and density. |
| Crackle-dyed quartz | Colored fractures create red, blue, green, or multicolored internal networks. | Dye concentrates along branching cracks and surface-reaching fractures rather than forming coherent mineral crystals. | Magnification, solvent testing by a laboratory, and spectroscopy. |
| Fracture-filled quartz | Resin or glass fills can improve clarity or add colored internal effects. | Flash effects, flattened bubbles, menisci, ultraviolet response, and polish differences may reveal filler. | Microscopy, FTIR, Raman spectroscopy, and treatment disclosure. |
| Coated quartz | Metallic films can create rainbow or colored surfaces resembling internal platelets. | Color is concentrated on exposed faces, shows abrasion at edges, and does not continue through depth. | Edge inspection, microscopy, and surface analysis. |
| Synthetic hydrothermal quartz | Can contain seed plates, fluid inclusions, growth zoning, nail-head spicules, or intentionally introduced materials. | Characteristic growth structures, seed evidence, unusual inclusion distribution, and laboratory growth chemistry may occur. | Advanced microscopy, spectroscopy, infrared analysis, and laboratory report. |
| Assembled or glued specimen | A transparent quartz cap may cover a scenic mineral layer or artificial particles. | Join planes, glue bubbles, refractive discontinuity, edge seams, and pattern confinement to one plane are warning signs. | Immersion microscopy and careful edge examination. |
| Aventurine glass sold as strawberry quartz | Contains abundant coppery sparkle in a red, orange, or transparent glass matrix. | Sparkle may be unusually uniform; glass bubbles and isotropic behavior differ from crystalline quartz. | Microscopy, hardness, refractive index, and polariscope testing. |
| Dyed or particle-filled resin | Can reproduce landscapes, needles, suspended flakes, and fluid-looking cavities. | Low hardness, low density, mold seams, warm tactile response, polymer bubbles, and surface scratching are common. | Raman or infrared spectroscopy and density. |
Strong supporting features
Quartz optical properties, coherent three-dimensional mineral habits, natural growth relationships, conchoidal fracture, appropriate surface morphology, and reliable provenance.
Helpful but non-exclusive features
Needles, bubbles, platelets, phantoms, dendrites, color zoning, and healed fractures also occur in synthetic or manufactured materials.
Warning signs
Perfectly repeated particle spacing, flat inserted imagery, dye pooling, mold seams, join planes, surface-only color, and unsupported rare-species claims.
Limits of photographs
A photograph can document pattern and color but cannot confirm depth, mineral chemistry, host optics, filling, assembly, or fluid composition.
Geological Settings and Notable Localities
Included quartz occurs worldwide. Locality can support interpretation, but no inclusion color or pattern proves a source by itself.
Brazil
Minas Gerais, Bahia, and other districts produce rutilated, tourmalinated, hematite-bearing, chlorite-bearing, and scenic included quartz in a wide range of crystal and lapidary forms.
Alpine fissures
The European Alps are renowned for clear quartz associated with chlorite, rutile, hematite, anatase, brookite, adularia, epidote, and complex fluid inclusions.
Himalayan and Hindu Kush regions
Pakistan, Afghanistan, India, and neighboring mountain belts produce quartz with chlorite phantoms, tourmaline, amphiboles, anatase, brookite, fluids, and alpine-type fissure associations.
South Africa
The Messina or Musina district is historically associated with rare blue copper-silicate inclusions, including ajoite- and papagoite-bearing quartz.
Madagascar
Material includes iron-rich quartz, scenic chlorite and oxide inclusions, phantoms, polished freeforms, and complex pegmatitic or hydrothermal associations.
Arkansas and other North American districts
Clear quartz may contain brookite, anatase, chlorite, iron oxides, hydrocarbons, or fluid inclusions depending on the deposit and growth history.
Pegmatites
Coarse-grained granitic systems can place quartz beside tourmaline, mica, feldspar, beryl, spodumene, phosphates, and late-stage fluids.
Metamorphic fissures
Deformation and fluid circulation produce quartz with chlorite, amphibole, epidote, rutile, hematite, sulfides, and repeated fracture-healing episodes.
Hydrothermal veins
Changing temperature, pressure, redox conditions, and metal content create diverse inclusion assemblages and fluid-inclusion populations.
| Provenance record | Why it matters | Preferred detail |
|---|---|---|
| Exact locality | Connects inclusion assemblage with host rock, temperature regime, known mineral associations, and legal collecting context. | Mine, claim, fissure, mountain, municipality, district, state or province, and country. |
| Collector and recovery date | Supports authenticity and preserves scientific context. | Collector name, date, field notes, and original specimen number. |
| In-situ association | Helps distinguish inclusions from attached matrix, later coatings, and reconstructed specimens. | Photographs of the crystal in pocket, vein, matrix, or host rock. |
| Preparation history | Separates natural faces and internal features from cutting, polishing, filling, coating, drilling, or repair. | Method, date, affected area, and responsible preparator. |
| Analytical record | Supports uncommon or visually ambiguous inclusion identifications. | Raman spectra, X-ray diffraction, chemical analysis, microscope images, and laboratory conclusion. |
Assessing a Specimen or Finished Stone
There is no single grading system for included quartz. A scientifically important fluid-inclusion plate, a complete natural crystal, a scenic cabochon, and a rutilated faceted gem preserve different qualities.
Inclusion legibility
Assess whether needles, plates, phantoms, fluids, or gardens can be followed through depth without excessive surface glare or internal disruption.
Three-dimensional composition
Consider balance, direction, negative space, overlap, color contrast, and how the internal structure changes during rotation.
Host transparency
Clarity should be judged in relation to the subject. A transparent window may reveal one inclusion, while controlled cloudiness can strengthen a scenic composition.
Growth completeness
Natural terminations, faces, phantoms, contact marks, and matrix relationships may carry more geological value than a completely polished surface.
Condition
Record open fractures, exposed inclusions, edge chips, internal strain, cavity position, repairs, filling, drill damage, and unstable sulfides.
Documentation
Exact locality, analytical identification, collection history, rough photographs, and treatment disclosure can outweigh size or visual drama.
| Object type | Features to prioritize | Points to inspect |
|---|---|---|
| Natural crystal | Complete form, faces, termination, inclusion depth, growth zones, matrix, and provenance. | Repaired tips, acid cleaning, glued matrix, artificial coating, and unstable fractures. |
| Rutilated or tourmalinated cabochon | Needle orientation, movement, contrast, dome placement, polish, and protected exposures. | Undercut needles, open surface channels, filler, thin girdles, and stress around thick inclusions. |
| Garden quartz freeform | Scenic depth, internal layering, transparent windows, balanced base, and natural growth structure. | Dyed fractures, resin-filled pits, assembled layers, backing, and over-polished natural faces. |
| Fluid-inclusion specimen | Cavity visibility, phase count, mobility at room temperature, orientation, host stability, and documentation. | Surface opening, repaired fracture, heat history, internal pressure, and misidentified liquid. |
| Faceted quartz | Face-up inclusion placement, transparency, brilliance, secure girdle, and host identity. | Fracture extension, filling, abrasion, strain, and inclusion intersection with facet junctions. |
| Scientific section | Orientation, polished thickness, inclusion assemblage, growth relationship, calibration, and chain of custody. | Heating, contamination, polishing oil, missing spatial context, and undocumented sampling. |
Cutting, Orientation, and Jewelry Design
The cutter works with a three-dimensional internal structure. Orientation should reveal the inclusion while protecting the fractures, cavities, soft mineral exposures, and pressure-sensitive zones surrounding it.
Map the rough in several lighting modes
Record needles, phantoms, gardens, fluid cavities, fractures, healed planes, surface-reaching inclusions, and natural faces before marking a cut.
Choose the principal viewing direction
Needles may appear strongest across the face, phantoms may require an axial view, and gardens may need a transparent window through the least crowded zone.
Protect fluid cavities and healed fractures
Avoid placing a cavity directly beneath a thin dome, drill exit, sharp corner, or high-stress setting point.
Allow for differential polishing
Surface-reaching tourmaline, chlorite, mica, sulfide, carbonate, or oxide may polish differently from quartz and require light pressure.
Pre-polish thoroughly
Remove all coarse scratches before final polish. Fracture-rich material can retain damage that becomes visible only at the final stage.
Finish cool and wet
Use abundant coolant, controlled pressure, and suitable quartz polishing compounds. Avoid local heating around inclusions and healed fractures.
Needle-rich cabochons
A low to medium dome can place rutile or tourmaline across the apex and preserve strong parallax during movement.
Garden freeforms
Broad polished windows and retained natural sides can show both the scenic interior and the original crystal growth.
Phantom slices
Sections cut approximately perpendicular or parallel to the crystal axis reveal different relationships among nested terminations.
Fluid-cavity specimens
They are generally better suited to protected display objects or pendants than exposed rings, drill-through beads, or heated repair work.
Faceted stones
Faceting can frame a single inclusion or fluid cavity, but facet placement must avoid structurally weak intersections.
Protective settings
Bezel, partial-bezel, guarded-prong, or recessed designs protect exposed inclusions and vulnerable girdle zones.
Care, Storage, and Conservation
Care should follow the internal architecture rather than quartz hardness alone. Fluid cavities, healed fractures, soft inclusions, sulfides, coatings, resin, and matrix can all require more conservative treatment.
Routine cleaning
Use lukewarm water, mild neutral soap, and a soft cloth or brush. Keep washing brief and dry thoroughly at room temperature.
Avoid ultrasonic cleaning
Vibration can extend fractures, disturb exposed inclusions, loosen repairs, and affect fluid-rich or heavily included material.
Avoid steam and rapid heat
Thermal expansion may stress fluid cavities, healed fractures, fills, adhesives, and mineral boundaries.
Use chemical restraint
Quartz resists many substances, but calcite, chlorite, sulfides, iron minerals, matrix, resin, and coatings may not. Neutral soap is the safer default.
Separate storage
Keep polished pieces away from topaz, corundum, diamond, rough metal, and abrasive dust. Support natural tips and exposed inclusions.
Controlled display
A stable stand should contact broad quartz areas rather than a fluid cavity, repaired fracture, delicate termination, or protruding mineral.
| Risk | Possible effect | Preferred approach |
|---|---|---|
| Sharp impact | Conchoidal chip, fracture extension, cavity rupture, detached inclusion, or broken termination. | Use padded storage and protective settings; lift specimens from stable broad areas. |
| Abrasive contact | Scratches, dulled polish, damaged soft inclusions, and loss of fine surface detail. | Remove dust before wiping and store separately. |
| Rapid temperature change | Expansion mismatch, fracture growth, fluid pressure increase, and treatment failure. | Avoid steam, hot water, direct flame, and sudden cooling. |
| Ultrasonic vibration | Opened healed fractures, loose inclusions, failed fill, and setting damage. | Use manual cleaning. |
| Acidic cleaner | Damage to carbonate inclusions, matrix, sulfides, metal settings, and fills. | Use neutral mild soap only. |
| Strong alkali or bleach | Surface residue, treatment damage, oxidation changes, and metal corrosion. | Avoid aggressive household chemicals. |
| Prolonged soaking | Water entry into open fractures, repair failure, staining, and alteration of porous matrix. | Keep cleaning brief and dry promptly. |
| Unprotected drilling | Breakout, cavity intersection, heat damage, and fractures around the hole. | Map inclusions first and drill wet with controlled pressure. |
Scientific Value
Inclusions provide direct evidence about environments that may no longer exist at the surface. Their value lies in context, spatial relationship, and analytical preservation.
Ancient fluid chemistry
Fluid inclusions can retain dissolved salts, gases, hydrocarbons, carbon dioxide, daughter minerals, and isotopic information from mineral-forming systems.
Temperature and pressure
Controlled microthermometry and phase behavior help estimate trapping conditions, fluid evolution, and later re-equilibration.
Mineral sequence
Cross-cutting relationships reveal which phases formed first, which grew together, and which entered during later alteration.
Growth kinetics
Phantoms, sectors, zoning, skeletal faces, and inclusion alignment record changes in supersaturation, flow, and crystal-face growth.
Redox history
Iron-bearing inclusions and color changes can preserve transitions among oxidizing and reducing conditions.
Deformation and healing
Fracture trails and inclusion assemblages record tectonic opening, fluid entry, sealing, pressure change, and repeated stress.
Ore-forming systems
Quartz-associated fluids and mineral inclusions help reconstruct hydrothermal transport of metals in veins and mineral deposits.
Provenance comparison
Inclusion assemblages may support regional comparisons when combined with chemistry, isotopes, host morphology, and documented locality.
Historical and Cultural Context
Transparent quartz has long been carved, polished, engraved, and collected for its clarity. Internally patterned material acquired additional interest because it appeared to preserve hair, plants, landscapes, stars, smoke, or water inside an otherwise solid crystal.
Historical lapidary language often described visible appearance rather than verified mineralogy. Names involving hair, moss, arrows, needles, grass, gardens, and water remain common. Some retain useful descriptive value, but modern microscopy has shown that visually similar inclusions can belong to different mineral species.
Rutilated quartz became especially recognizable through its golden needle networks. Tourmalinated quartz emphasized graphic black rods, while chlorite-rich material developed a vocabulary of gardens, landscapes, mosses, and phantoms. Modern cutting and magnification expanded interest in fluid cavities, negative crystals, microscopic mineral assemblages, and unusual blue or red inclusions.
Contemporary spiritual and literary traditions frequently interpret inclusions as memory, coexistence, hospitality, complexity, or transformation. These are modern symbolic readings inspired by the material’s appearance and geology; they should not be presented as one continuous ancient global belief system.
Visible threads, mosses, and internal scenes receive descriptive names
Appearance-based terminology develops before microscopes and analytical instruments can identify the enclosed phases.
Crystal habit and associated mineral species become better understood
Rutile, tourmaline, chlorite, hematite, pyrite, titanium oxides, and other inclusions are distinguished more carefully.
Microscopic cavities become geological instruments
Fluid phases, homogenization behavior, salinity, gases, and daughter minerals provide evidence about ancient mineral-forming environments.
Inclusions support natural-origin, treatment, and locality studies
Microscopy, spectroscopy, chemistry, and growth analysis distinguish natural features from synthetic growth and manufactured effects.
Internal structure becomes the central subject
Specimens and cut stones are increasingly evaluated for interpretable inclusions, provenance, preservation, and responsible naming.
Documentation and Responsible Description
A useful record distinguishes host quartz, observed feature, analytical identification, timing interpretation, locality, preparation, treatment, and condition.
Host description
Record rock crystal, smoky quartz, amethyst, citrine, milky quartz, chalcedony, or another verified quartz variety.
Inclusion morphology
Describe needles, plates, rods, cubes, clouds, fibers, phantoms, cavities, dendrites, or healed fractures before assigning a species.
Identity confidence
Separate visual comparison, probable identification, and laboratory-confirmed mineral species.
Timing interpretation
Use protogenetic, syngenetic, epigenetic, primary, pseudosecondary, or secondary only where spatial evidence supports the conclusion.
Preparation and treatment
Document cutting, polishing, drilling, filling, coating, dye, crackling, backing, assembly, repair, and deliberate heating.
Locality and chain of custody
Retain exact source, collector, date, original labels, specimen number, photographs, and analytical reports.
| Record element | Why it matters | Example wording |
|---|---|---|
| Host | Establishes the principal mineral and variety. | “Colorless rock crystal quartz with natural prism faces and one polished window.” |
| Observed feature | Preserves what can be seen independently of interpretation. | “Golden acicular inclusions forming two intersecting sprays.” |
| Inclusion identity | Separates visual attribution from analytical proof. | “Rutile identification supported by Raman spectroscopy.” |
| Growth relationship | Records chronology within the crystal. | “Needles predate outer quartz overgrowth; chlorite film marks an intermediate phantom surface.” |
| Fluid description | Avoids assuming that an eye-visible liquid is pure water. | “One negative-crystal cavity containing transparent liquid and a mobile vapor bubble at room temperature.” |
| Preparation | Distinguishes natural surfaces from human modification. | “Base sawn and polished; remaining prism and termination faces natural.” |
| Treatment | Supports care, authenticity, and future analysis. | “No filling or coating observed; treatment status otherwise undetermined.” |
| Locality | Provides geological context and supports unusual mineral associations. | “Musina district, Limpopo Province, South Africa; original collector label retained.” |
Contemporary Interpretation: Coexistence, Memory, and Visible Complexity
Modern reflective use can draw on the genuine geology of included quartz without presenting symbolism as mineral science, medicine, or universal ancient tradition.
Coexisting structures
Quartz can surround another mineral without making it disappear, offering an image for preserving difference within a stable whole.
Earlier forms remain visible
A phantom records a previous boundary inside later growth, suggesting that development can incorporate rather than erase earlier stages.
Conditions held in reserve
A sealed fluid cavity preserves evidence of an earlier environment, providing a metaphor for information carried forward until it can be examined carefully.
Complexity becomes landscape
Mineral clusters that obstruct perfect clarity can also create the specimen’s most distinctive internal composition.
Fracture and repair remain legible
A healed crack is not restored to featureless transparency; its veil records both disruption and renewed mineral growth.
Observation before naming
Similar red or golden inclusions may belong to different minerals, encouraging careful description before confident interpretation.
Part One: Identify the host
- Write the stable facts of the situation without explanation.
- Separate the central structure from the material temporarily passing through it.
- Name what must remain intact.
- Use that statement as the boundary for the next decision.
Part Two: Describe the inclusion
- Record what is directly observable.
- Avoid assigning motive, cause, or permanence too early.
- Note whether the feature is isolated, repeated, planar, or three-dimensional.
- Choose the least speculative description that remains useful.
Part Three: Read the growth sequence
- Identify what existed before the present situation.
- Mark the interruption or change in conditions.
- Identify what developed afterward.
- Decide which earlier structure still deserves protection.
Part Four: Complete one grounded action
- Choose one action supported by the evidence.
- Define completion in observable terms.
- Complete it without enlarging the task.
- Record what becomes clearer after the action is finished.
Continue Into the Specialist Included-Quartz Guides
The following articles examine included quartz through gemology, fluid-inclusion science, geological formation, locality, cultural history, literary narrative, and grounded symbolic practice.
Frequently Asked Questions
What is quartz with inclusions?
It is quartz containing enclosed minerals, fluids, gases, cavities, healed fractures, growth surfaces, or combinations of these features.
Is included quartz a separate mineral species?
No. The host remains quartz. Terms such as rutilated quartz, tourmalinated quartz, garden quartz, and phantom quartz describe inclusions or structure.
Are inclusions impurities?
They are materials or structures enclosed by the host. They may reduce transparency or durability, but they can also provide geological, gemological, and visual significance.
What is the difference between an inclusion and a surface coating?
An inclusion is enclosed within quartz. A coating lies on an exposed surface unless later quartz growth has overgrown it.
What does protogenetic mean?
A protogenetic inclusion existed before the surrounding quartz grew around it.
What does syngenetic mean?
A syngenetic inclusion formed during the same broad growth episode as the host quartz.
What does epigenetic mean?
An epigenetic feature entered or formed after the host had substantially developed, commonly through a later fracture or cavity.
What is rutilated quartz?
It is quartz containing rutile crystals, commonly as golden, coppery, reddish, silver-gray, or dark needles.
What is tourmalinated quartz?
It is quartz enclosing tourmaline crystals, most commonly black schorl rods or needles.
What is sagenitic quartz?
Sagenitic describes quartz containing a network of acicular inclusions. Rutile is common, but the term does not identify one mineral species.
What is garden quartz?
Garden quartz is a descriptive trade term for quartz containing scenic chlorite, clay, oxide, fluid, and mineral aggregates. It is also called lodolite or landscape quartz.
Is lodolite a mineral?
No. It is a commercial or descriptive name for scenic included quartz.
What is a phantom in quartz?
A phantom is an earlier quartz crystal outline preserved when a deposited layer marked the surface and later quartz growth enclosed it.
Can one crystal contain several phantoms?
Yes. Nested phantoms may record repeated pauses, changes in fluid chemistry, deposition, and renewed growth.
What is a negative crystal?
It is a cavity whose walls follow the crystallographic form of the host. It may contain fluid, vapor, daughter minerals, or several phases.
Is a negative crystal a tiny quartz crystal?
No. It is a void shaped by the quartz lattice, although its faceted outline can resemble a small solid crystal.
What is a fluid inclusion?
It is a sealed cavity containing fluid trapped during crystal growth or fracture healing. The contents may include liquid, vapor, salts, hydrocarbons, carbon dioxide, and solid daughter phases.
Is the liquid inside always water?
No. It may be brine, carbon dioxide-bearing fluid, hydrocarbons, mixed fluids, or another natural solution.
What causes a bubble inside quartz?
A vapor phase can separate from the trapped liquid as temperature and pressure change after the cavity seals.
Should a fluid-inclusion specimen be warmed to move the bubble?
No. Heating can raise internal pressure and damage the crystal. Observe movement only by gently rotating the specimen at room temperature.
What does enhydro mean?
Historically the term is strongly associated with water-bearing chalcedony nodules or geodes. In modern trade it is also used for quartz containing an eye-visible fluid cavity and mobile bubble.
Do all genuine fluid inclusions have moving bubbles?
No. A bubble may be too small, fixed by cavity shape, obstructed by solids, or absent at the observation temperature.
What is a healed fracture?
It is an earlier crack resealed by renewed quartz growth, often leaving a veil, feather, fingerprint, or trail of small cavities.
Why do some internal fractures show rainbows?
Very thin gaps or films can create interference colors when light reflects from closely spaced internal surfaces.
What causes red inclusions?
Hematite and other iron-bearing minerals commonly produce red, burgundy, bronze, or rust-colored plates, dust, and needles.
What is strawberry quartz?
It is a trade name for quartz with fine red to pink inclusions, commonly attributed to hematite, goethite, lepidocrocite, or related iron-bearing particles. The name is also misapplied to glass, dyed quartz, and synthetic material.
Is “cacoxenite in quartz” common?
Verified cacoxenite in quartz is uncommon. Many specimens sold under that name contain more common iron oxides or hydroxides.
What causes blue inclusions?
Possible causes include ajoite, papagoite, gilalite, dumortierite, amphiboles, and other minerals. Blue color alone cannot establish species.
Can pyrite occur inside quartz?
Yes. Small cubes, pyritohedra, and irregular metallic grains may be enclosed during quartz growth.
Can chlorite occur as a phantom?
Yes. Chlorite deposited on an earlier quartz surface can mark a green phantom when later quartz overgrows it.
How can rutile be distinguished from tourmaline?
Rutile is often thinner and more mirror-bright, while tourmaline commonly forms thicker prismatic rods. Definitive identification may require spectroscopy.
How can a dendrite be distinguished from a garden inclusion?
Dendrites are commonly planar branching deposits along a fracture or interface. Garden inclusions occupy three-dimensional space and show stronger parallax during rotation.
Can included quartz be synthetic?
Yes. Hydrothermal synthetic quartz may contain growth features, fluids, seed plates, or deliberately introduced materials.
Can glass imitate rutilated quartz?
Yes. Glass can contain fibers, glitter, bubbles, or metallic particles. Host optical properties and microscopic structure distinguish it from quartz.
How can dyed crackle quartz be recognized?
Dye concentrates along branching surface-reaching fractures rather than forming coherent mineral crystals with independent habit.
Does quartz hardness protect every included specimen?
No. Internal fractures, open cavities, soft inclusions, sulfides, matrix, resin, and repaired zones can be much less durable than the quartz host.
Can included quartz be cleaned ultrasonically?
Ultrasonic cleaning is best avoided for fluid-rich, heavily fractured, filled, repaired, matrix-bearing, or surface-included material.
Can included quartz be steam cleaned?
Steam is not recommended because rapid heating may stress fluid cavities, fractures, fills, and mineral boundaries.
Can included quartz be soaked in water?
Brief washing is usually acceptable for stable untreated quartz, but prolonged soaking should be avoided where fractures, matrix, fills, sulfides, or porous inclusions are present.
Is included quartz suitable for rings?
Stable compact stones can be used in protected rings, but fluid cavities, open fractures, exposed inclusions, and delicate gardens are safer in pendants, brooches, or display objects.
Can included quartz be faceted?
Yes. Faceting can frame a selected inclusion, but the cutter must avoid stress around cavities, healed fractures, and surface-reaching minerals.
Why do some inclusions undercut during polishing?
The inclusion may be softer, cleavable, porous, or less securely attached than quartz, causing it to wear below the surrounding surface.
Can locality be identified from inclusion color?
No. Locality requires documentation and may be supported by a complete mineral assemblage, chemistry, habit, and geological context.
What should appear on a specimen label?
Record the quartz variety, observed inclusion form, confirmed species where known, locality, dimensions, weight, preparation, treatment, condition, collector, date, and analytical method.
Do inclusions have one universal symbolic meaning?
No. Modern themes involving memory, complexity, coexistence, and integration are contemporary interpretations rather than one universal historical tradition.
