K2
Share

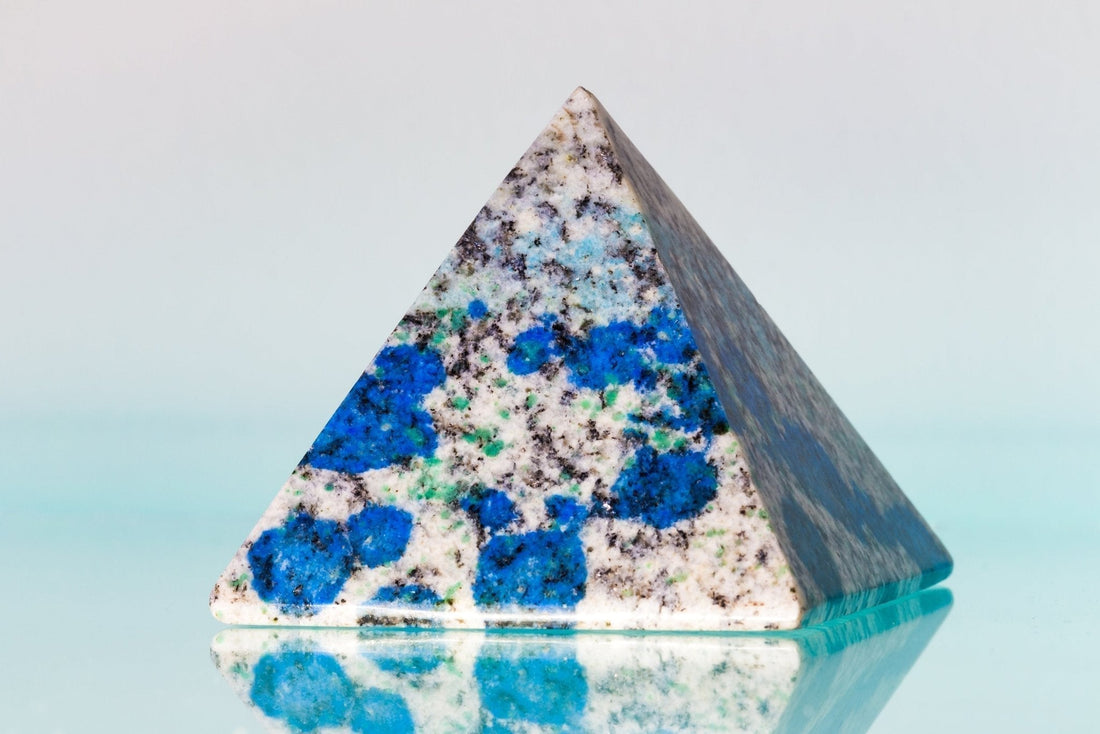

K2 Stone: Azurite Orbs in Pale Granite and the Geology Behind the Blue
K2 stone is a visually distinctive granitic rock in which vivid blue copper-carbonate mineralization appears as rounded spots within a pale, visibly crystalline host. The white, gray, and charcoal matrix is built principally from quartz, feldspars, and mica; the blue zones are commonly described as azurite, with smaller green areas attributed to malachite. Its appearance resembles blue waypoints scattered across a snow-covered mountain map, yet the geological story is more complex than the familiar trade name suggests.
The blue “orbs” are visible cross-sections through three-dimensional mineralized zones. Their circular appearance varies with cut direction, while small green areas may mark malachite-rich alteration.
Quick Facts
K2 stone is a heterogeneous rock rather than a single mineral. Its pale host supplies most of the strength and polish, while its softer copper-carbonate zones create the color, chemical sensitivity, and differential wear that define its practical behavior.
| Feature | Typical expression | Why it matters |
|---|---|---|
| Pale crystalline host | White, cool gray, cream, or faintly warm granitic material with visible quartz, feldspar, and mica grains. | The host controls most of the stone’s bulk hardness, structure, and ability to accept a durable polish. |
| Blue mineralized zones | Rounded, oval, blotchy, or locally connected cornflower- to cobalt-blue areas. | These zones create the signature appearance but are softer, more chemically sensitive, and more easily undercut during polishing. |
| Green alteration | Small green spots, rims, irregular halos, or patches near some blue areas. | Green material may represent malachite or related alteration within the copper-bearing zones. |
| Three-dimensional mineralization | Blue continues through cut faces rather than remaining as a superficial dot. | The familiar “orb” is usually a section through a mineralized volume, not a painted circle on the surface. |
| Composite polish | Quartz and feldspar can remain bright while azurite-rich areas become slightly lower, softer, or more satin. | Even finishing requires light pressure, careful pre-polish, and awareness of unequal mineral hardness. |
| Trade-name complexity | The words granite, jasper, azurite, and K2 may all appear in descriptions. | A complete label should state that the material is an azurite-bearing granitic rock and should separate trade naming from exact locality. |
Identity, Naming, and What K2 Stone Actually Is
K2 stone is a rock. It contains several mineral species interlocked in one body, so it has no single chemical formula, refractive index, hardness, or crystal system. Its behavior must be understood as the combined behavior of a pale granitic host and secondary copper-bearing mineralization.
The name K2 granite is widely used because the host is quartz- and feldspar-rich with a visibly crystalline granitic texture. Some specimens may show mineral alignment, deformation, or metamorphic fabric, so a strict petrographic classification can vary between samples. “Granitic rock” is therefore the safest broad description when a thin-section study has not been made.
The name K2 jasper is a persistent trade misnomer. Jasper is an opaque, microcrystalline variety of quartz, whereas K2 stone contains individually visible feldspar, quartz, and mica grains. The two materials differ in texture, mineralogy, fracture, porosity, and geological origin.
Raindrop azurite is a descriptive trade phrase emphasizing the scattered blue pattern. It communicates appearance but does not identify the host rock or prove that every blue-bearing object sold under the name is natural.
K2 stone
The broad commercial name for pale granitic material containing vivid blue copper-carbonate zones and occasional green alteration.
K2 granite
A useful descriptive name for the quartz–feldspar–mica host, provided it is understood as a trade term rather than a formal petrographic determination for every specimen.
K2 jasper
A familiar but mineralogically inaccurate name. The host is coarse enough to reveal separate mineral grains and is not jasper.
Azurite-bearing granitoid
A more technical broad description that acknowledges the granitic texture and the copper-carbonate mineralization without overstating an exact rock classification.
The Granitic Host: Quartz, Feldspars, Micas, and Accessory Minerals
The pale matrix is not an anonymous white background. It is an interlocking crystalline rock whose minerals can be read through color, luster, cleavage, and grain shape.
Quartz
Quartz forms glassy, irregular gray-white to translucent grains. It has no cleavage, a Mohs hardness of 7, and often contributes the clearest sparkle under moving light.
Albite
Sodium-rich plagioclase contributes white to cool gray blocky grains. Fine twin striations may be visible on suitable surfaces under magnification.
Microcline
Potassium feldspar contributes cream, pale gray, or locally warmer grains. It is softer than quartz and can show blocky cleavage-controlled boundaries.
Muscovite and biotite
Micas appear as silvery or dark platy grains. Their perfect basal cleavage can produce flashes, thin flakes, and slight undercutting in polished material.
Minor alteration minerals
Chlorite and epidote-like calcium–aluminum–iron silicates can occur in trace quantities, reflecting fluid alteration or later metamorphic processes.
Accessory grains
Titanite, apatite, zircon, and monazite have been detected in analytical work on one sample. These minute phases help document the host rock’s crystallization history.
| Component | Typical visual clue | Approximate hardness | Role in the finished stone |
|---|---|---|---|
| Quartz | Glassy, irregular, translucent gray or colorless grains. | 7 | Supplies scratch resistance, bright polish, and small flashes under direct light. |
| Albite | White to cool gray blocky grains, sometimes with fine striations. | Approximately 6–6.5 | Creates much of the snowy field and contributes blocky crystalline texture. |
| Microcline | Cream, pale gray, or faintly warm feldspar grains. | Approximately 6 | Adds subtle warmth and helps define the granitic mosaic. |
| Muscovite | Silvery flakes with bright planar reflections. | Approximately 2–2.5 | Creates fine sparkle but can polish lower than surrounding quartz and feldspar. |
| Biotite | Black, brown-black, or charcoal flakes and streaks. | Approximately 2.5–3 | Provides dark contrast and can create small cleavage-controlled pits. |
| Azurite-rich material | Vivid blue rounded zones, granular patches, and microfracture fillings. | Approximately 3.5–4 | Creates the defining pattern and introduces chemical and mechanical sensitivity. |
| Malachite-rich material | Green rims, spots, or irregular alteration near blue mineralization. | Approximately 3.5–4 | Records a related stage of copper-carbonate mineralization or alteration. |
What the Blue Zones Reveal
The blue spots are the most familiar feature of K2 stone, but their internal structure is finer and less geometrically perfect than the word “orb” suggests.
Evidence from mineralogical examination
A multi-method study of one small K2 sample used X-ray diffraction, optical microscopy, acid reaction, scanning electron microscopy, energy-dispersive spectroscopy, and automated mineral mapping. The work confirmed a quartz–feldspar–mica host and detected copper-bearing material within pores and micron-scale fractures.
- Not merely superficial Cutting showed that the blue areas continued into the rock rather than existing only as surface stains.
- Fine-scale penetration Copper-bearing material occupied fractures and pores measured on a microscopic scale.
- Copper and oxygen confirmed Elemental analysis detected the expected principal elements of oxidized copper minerals.
- Carbonate response Blue areas reacted with dilute hydrochloric acid, supporting a carbonate-bearing interpretation.
- Azurite–malachite consistency Automated mineral mapping classified the copper material as chemically and visually consistent with azurite and malachite.
- Representativeness remains limited The analysis concerned one small specimen, so it should not be treated as a complete survey of every object sold as K2 stone.
Why circles appear on a flat cut
A saw intersects three-dimensional mineralized zones at different levels. A central section may appear broadly circular, an off-center section smaller and oval, and an oblique section stretched or irregular.
Why green may border blue
Malachite is a related copper carbonate stable under somewhat different chemical conditions. Green rims can record alteration, fluid evolution, or separate precipitation around an azurite-rich zone.
Why spots can connect
Mineralization may follow a network of pores and fractures. Two apparently separate circles on one face can join deeper within the rock or connect through a narrow copper-bearing seam.
Why the edge can be diffuse
Copper-bearing fluids may penetrate the host through microscopic pathways. The resulting boundary can be granular, feathery, or haloed rather than sharply outlined like paint.
How K2 Stone Most Likely Formed
The detailed origin of the material has not been resolved through a large published geological study. The following sequence is a cautious model consistent with the granitic host, later deformation, copper in pores and fractures, and the presence of oxidized copper carbonates.
A granitic body crystallizes
Silica-rich magma cools slowly enough for quartz, feldspars, mica, and accessory minerals to form an interlocking crystalline rock.
Mountain building stresses the host
Regional deformation creates microfractures, grain-boundary openings, and locally aligned minerals through which later fluids can move.
Copper becomes mobile
Water interacting with copper-bearing material acquires dissolved copper and transports it through the fractured granitic host.
Oxidizing carbonate conditions develop
Near-surface oxygen, carbonate species, pH, and water chemistry favor precipitation of azurite, malachite, or related copper compounds.
Blue zones occupy pores and fractures
Copper minerals fill fine pathways and expand into concentrated patches, producing three-dimensional mineralized areas within the pale rock.
Weathering and cutting reveal the pattern
Erosion exposes the rock, while sawing and polishing convert irregular mineralized volumes into the familiar field of blue circles and ovals.
Appearance, Color, and Pattern Vocabulary
K2 stone is recognizable because its color contrast is unusually direct: saturated blue and occasional green appear against a quiet crystalline field of white, gray, cream, and charcoal.
- Snow white Pale feldspar-rich areas that create the cleanest contrast with the copper minerals.
- Warm feldspar Cream, pale beige, or faintly pink-gray grains that soften the matrix.
- Glacier gray Translucent quartz grains with a cool, glassy, slightly smoky appearance.
- Mica charcoal Dark flakes, streaks, and pepper-like grains that define the granitic texture.
- Azurite blue The classic cornflower, cobalt, or deep sky-blue zones.
- Bright blue edge Lighter granular margins where the blue is finely dispersed through pale host minerals.
- Malachite green Small spots, rims, or halos associated with part of the copper mineralization.
- Weathered warmth Brown, tan, or rust-leaning areas from iron-bearing alteration and surface weathering.
Waypoint pattern
Widely separated blue circles appear like individual markers on an open pale field.
Clustered field
Several blue zones gather closely, sometimes overlapping or connected by faint mineralized pathways.
Green-rimmed orb
A blue center is partly or completely bordered by malachite-colored green alteration.
Snowfield matrix
A particularly pale feldspar-rich host contains relatively few dark grains and creates a high-key appearance.
Contour texture
Aligned mica, grain boundaries, or faint fracture networks create directional lines through the matrix.
Weathered terrain
Brown-gray alteration, open fractures, or iron staining interrupts the white ground and produces a more geological, less graphic surface.
| Viewing condition | What becomes visible | Interpretive value |
|---|---|---|
| Diffuse neutral light | True matrix color, spot distribution, green alteration, and overall polish. | Best starting condition for comparing pieces and recognizing unnatural saturation. |
| Low raking light | Undercut azurite, polishing pits, mica flakes, coatings, scratches, and uneven surface height. | Reveals the practical effect of differential hardness. |
| Small point light | Quartz flashes, mica reflections, and localized luster within the blue zones. | Helps separate crystalline mineralization from flat paint or diffuse dye. |
| Magnification | Granular boundaries, microfractures, color penetration, resin, and pigment accumulation. | Useful for assessing natural structure and later treatment. |
| Backlighting at a thin edge | Limited quartz translucency, open fractures, backing, and composite construction. | Can reveal features hidden by an opaque face-up view. |
Physical and Optical Properties of a Composite Stone
A numerical property assigned to one component cannot be applied to the entire object. K2 stone contains hard silicates, soft micas, and still softer copper carbonates, so local behavior changes across a single polished face.
| Property | Granitic host | Azurite-rich zones | Malachite-rich zones |
|---|---|---|---|
| Material character | Interlocking rock composed principally of quartz, feldspars, and mica. | Copper carbonate hydroxide mineralization, commonly fine-grained in K2 material. | Related copper carbonate hydroxide mineralization, commonly green and fine-grained. |
| Representative composition | No single formula; quartz is SiO2, feldspars are aluminosilicates, and micas are sheet silicates. | Cu3(CO3)2(OH)2 | Cu2CO3(OH)2 |
| Hardness | Mostly approximately Mohs 6–7, with softer mica flakes. | Approximately Mohs 3.5–4. | Approximately Mohs 3.5–4. |
| Specific gravity | Commonly approximately 2.6–2.7. | Approximately 3.7–3.9. | Commonly approximately 3.6–4.0. |
| Luster | Vitreous on quartz, vitreous to pearly on feldspar, and pearly on mica. | Vitreous to dull, silky, or earthy depending on grain size. | Vitreous, silky, dull, or earthy depending on texture. |
| Transparency | Opaque as a rock, with locally translucent quartz grains. | Generally opaque in this material. | Generally opaque in this material. |
| Cleavage and fracture | Variable by mineral; feldspar and mica cleave, while quartz fractures conchoidally. | Azurite has cleavage, but fine aggregates tend to break irregularly. | Malachite aggregates commonly break unevenly or splintery. |
| Chemical sensitivity | Relatively stable during brief mild cleaning, though individual minerals and fractures still require care. | Acids dissolve or etch the carbonate mineral and may alter color or texture. | Acids dissolve or etch the carbonate mineral and may alter color or texture. |
| Polish response | Quartz and feldspar can accept a bright polish; mica may undercut. | May polish lower, appear satin, or develop pits under excessive pressure. | May undercut, smear, or remain slightly lower than the host. |
No single refractive index
Refractometer readings depend on which mineral contacts the instrument. An aggregate reading cannot be interpreted as though K2 stone were one transparent gem species.
No uniform scratch resistance
Quartz-rich areas can resist abrasion that scratches or flattens an adjacent blue spot. One face may therefore develop uneven wear over time.
No universal density value
Bulk density varies with the proportions of quartz, feldspar, mica, copper carbonates, fractures, porosity, backing, and resin.
No single fracture behavior
Breakage can follow feldspar cleavage, mica foliation, pre-existing fractures, mineralized zones, or irregular boundaries between components.
Locality, Provenance, and the Meaning of the K2 Name
The commercial name evokes the high Karakoram, but geographic precision requires more than the word K2. Modern mineral-locality records distinguish the documented azurite-in-granite occurrence from K2 Peak itself.
Documented occurrence
The recorded azurite-in-granite locality is in the Khaplu area of Ghanche District, Gilgit-Baltistan, Pakistan. The material belongs to the wider mountain region but is not recorded as coming directly from the K2 summit locality.
Regional trade naming
“K2” functions as a memorable regional association and visual identity. It should not be treated as a mine name, geological formation, or proof that a specimen was collected at the base of the mountain.
Geological context
Gilgit-Baltistan contains complex granitoids, metamorphic rocks, fault systems, high-grade terrains, and mineralized zones created during repeated magmatic and tectonic events.
Preserving provenance
Retain the collecting area, district, country, acquisition date, rough or finished form, treatment history, and any analytical documentation that accompanied the material.
| Label wording | What it communicates | Qualification |
|---|---|---|
| K2 stone | Recognizable trade identity and appearance. | Does not state exact mineralogy, locality, or treatment by itself. |
| K2 granite | Granitic host and commercial naming tradition. | May simplify a host that shows metamorphic or deformational fabric. |
| Azurite in granite, Pakistan | Broad mineral and country description. | More accurate than “jasper,” but still lacks district-level provenance. |
| Azurite-bearing granitic rock, Khaplu area, Ghanche District, Gilgit-Baltistan, Pakistan | Material type and documented occurrence area. | Preferred when supported by reliable provenance. |
| From K2 Mountain | Direct summit or peak locality claim. | Should not be used without evidence; current locality records place the known occurrence elsewhere. |
| Cut in Pakistan | Workshop or manufacturing location. | Does not prove geological origin. |
Modern History and Cultural Context
K2 stone is a modern lapidary and mineral-trade material rather than a historically documented ancient gemstone. Its current identity developed through the combination of an unusual Pakistani occurrence, memorable blue-on-white appearance, and a commercial name linked to one of the world’s most recognizable mountain landscapes.
The name helped the material become familiar beyond specialist mineral circles. Cabochons, beads, freeforms, and carvings translated the rough rock into objects where the blue zones could be arranged like constellations, contour markers, or isolated pools across the pale host.
The inaccurate word jasper became attached to the material through broad lapidary usage, in which many opaque patterned stones are called jaspers regardless of their actual mineralogy. Greater analytical attention has encouraged more accurate descriptions such as azurite in granite or azurite-bearing granitoid.
The mountain association has also encouraged stories about altitude, endurance, navigation, and summit symbolism. These are modern interpretations inspired by the name and visual character. They should not be presented as established traditional beliefs of communities in Gilgit-Baltistan unless supported by specific cultural and historical evidence.
K2 stone therefore occupies several overlapping categories: geological curiosity, ornamental rock, copper-mineral specimen, modern symbolic material, and example of how trade names can both popularize and obscure mineral identity.
Scientific interest
The juxtaposition of secondary copper carbonates with a quartz–feldspar–mica host raises questions about fluid pathways, deformation, weathering, and locality geology.
Lapidary identity
Cutting transforms hidden mineralized volumes into circles, ovals, arcs, and connected fields that differ on every face.
Modern symbolism
The contrast between a stable pale foundation and bright directional markers has encouraged associations with wayfinding, perspective, and deliberate progress.
K2 stone is best understood as a modern material with an ancient geological history: granitic crystallization, later fracture, copper-bearing fluid movement, weathering, and human naming all remain visible in one surface.
Identification and Common Look-Alikes
Recognition begins with the relationship between the blue zones and the pale host. Natural K2 material should show a genuine granitic mosaic, internal color penetration, irregular mineral boundaries, and locally granular copper-bearing areas.
| Material | Why it resembles K2 stone | Useful distinction |
|---|---|---|
| Dyed jasper | A pale opaque rock can be dotted with blue pigment to imitate the familiar pattern. | Dye may remain superficial, pool in pits, cross unrelated grains, or stop abruptly at chips and newly exposed edges. |
| Dyed howlite or magnesite | White porous stones accept vivid blue dye and can be decorated with spot-like color. | The host lacks visible quartz–feldspar granitic grains and often shows pores, veins, or chalky texture rather than an interlocking crystalline mosaic. |
| Sodalite-bearing syenite | Blue mineral occurs naturally within a pale feldspar-rich igneous rock. | Sodalite commonly forms angular grains, irregular patches, or broader masses rather than dispersed rounded azurite-style zones. |
| Dumortierite quartz | Blue material occurs naturally in a silica-rich host. | The blue is usually fibrous, cloudy, or diffuse within quartz rather than appearing as discrete spots in granite. |
| Chrysocolla-bearing rock | Blue to blue-green copper mineralization can occur in pale matrix. | Color tends to be greener, more vein-like, porous, or earthy; laboratory analysis may be required for mixed copper minerals. |
| Lapis-bearing or lazurite-bearing rock | Strong blue patches contrast with pale calcite or silicate minerals. | Lapis-related material generally lacks the distinctive white granitic host and may contain pyrite or calcite-rich boundaries. |
| Painted granite | Real granite supplies a convincing host while applied pigment supplies blue circles. | Paint lies above grain boundaries, fills scratches, wears from high points, and does not continue naturally into the interior. |
| Resin composite | Pale stone fragments and blue particles can be assembled in a binder. | Bubbles, joining planes, repeated chips, visible resin, molded outlines, and uniform distribution support manufacture. |
| Dalmatian stone | A pale feldspar-rich igneous rock with contrasting rounded spots. | The spots are black or charcoal rather than blue and belong to different dark minerals. |
Host texture
Look for separate quartz, feldspar, and mica grains rather than a uniformly fine, chalky, waxy, or glassy background.
Color penetration
Blue should occupy real depth, follow microfractures, and remain integrated with the host at chips, edges, and drill holes.
Natural irregularity
Spot size, saturation, outline, and distribution should vary. Perfectly repeated circles or identical spacing are suspicious.
Mineral luster
Natural blue zones may show granular, earthy, silky, or locally vitreous reflections rather than one flat paint-like sheen.
Wear pattern
Softer natural blue areas may sit slightly lower than the host. Surface pigment instead tends to wear away from raised points and scratches.
Laboratory confirmation
Raman spectroscopy, X-ray diffraction, microscopy, and elemental analysis can confirm mineral identity when provenance or value makes certainty important.
Under Magnification and Controlled Light
A 10× loupe cannot replace mineral analysis, but it can reveal whether the blue occupies depth, how the host minerals meet, and whether pigment, coating, resin, or filler has been introduced.
Granular blue boundaries
Natural copper mineralization may feather into feldspar, occupy tiny cracks, and vary in grain size rather than ending as one perfectly sharp painted edge.
Green alteration
Malachite-colored material may occur as thin rims, irregular grains, or separate microzones rather than a uniform decorative outline.
Host grain boundaries
Quartz, feldspar, and mica should retain distinct shapes, lusters, fractures, and cleavage relationships beneath the polish.
Differential surface height
Soft blue and mica-rich areas may be slightly recessed relative to quartz-rich grains, especially on older or aggressively polished pieces.
Pigment pooling
Artificial color often accumulates in scratches, pits, drill holes, fracture openings, adhesive lines, and porous weathered areas.
Resin and coatings
Filled pits can appear unnaturally smooth. Bubbles, meniscus edges, peeling, and a luster unlike adjacent mineral surfaces indicate later material.
Begin with diffuse neutral light
Record the body color, blue distribution, green zones, fractures, polish, backing, and differences between the front and reverse.
Rotate under one small light
Compare the glassy return of quartz, blockier feldspar reflections, mica flashes, and the softer response of copper-rich areas.
Inspect edges and drill holes
These areas expose depth and can reveal whether blue continues into the object or remains restricted to the polished exterior.
Use low raking light
A shallow beam reveals undercutting, surface coatings, pits, scratches, filled fractures, and differential wear.
Compare front, reverse, and side
Natural patterning need not be identical on every face, but mineral relationships should remain structurally plausible through the object.
Escalate only when necessary
Use Raman spectroscopy, X-ray methods, microscopy, or elemental analysis for significant, disputed, or historically important material.
Authenticity, Treatments, Repairs, and Manufactured Imitations
Natural K2 stone is commonly represented as untreated, but the popularity of its simple blue-on-white pattern has encouraged dyed, painted, stabilized, backed, and composite imitations.
| Issue | What to observe | Interpretation |
|---|---|---|
| Blue surface dye | Color concentrated in pores, fractures, drill holes, and weathered zones without corresponding mineral texture. | Pigment introduced after cutting or tumbling. |
| Painted dots | Uniform circles, brush or tool marks, pigment crossing quartz and feldspar without interruption, or color ending at a chip. | Decorative imitation applied to a natural pale rock. |
| Resin impregnation | Filled pits, glossy fracture surfaces, bubbles, meniscus edges, or fluorescence unlike the host. | Stabilization or cosmetic improvement of fractured material. |
| Wax or surface dressing | Deepened color, residue in recesses, warm sheen, or a finish that smears under heat. | Temporary surface treatment used to enrich color or mask fine scratches. |
| Backing | Separate layer beneath a thin slice, cabochon, or inlay. | Structural support or an attempt to alter apparent depth and contrast. |
| Composite construction | Joining planes, visible binder, repeated fragments, molded shape, or blue particles suspended in resin. | Manufactured object rather than one continuous rock specimen. |
| Dyed jasper imitation | Fine opaque host without visible granitic grains and blue dots that remain superficial. | Documented style of imitation intended to reproduce the K2 pattern. |
| Incorrect locality claim | Direct attribution to K2 Peak without supporting collection records. | Commercial shorthand or unsupported provenance. |
| Misleading mineral label | The object is described simply as azurite, jasper, or granite without explaining the composite nature. | Incomplete terminology that can obscure care requirements and mineral identity. |
Features supporting natural material
- Visible interlocking quartz, feldspar, and mica grains.
- Blue zones continuing through edges or cut surfaces.
- Irregular granular and fracture-controlled mineral boundaries.
- Natural variation in spot size, shape, saturation, and distribution.
- Laboratory results consistent with copper carbonates and a granitic host.
Useful documentation
- Material described as azurite-bearing granitic rock.
- Khaplu or district-level provenance when genuinely known.
- Disclosure of resin, wax, coating, backing, filling, or repair.
- Whether the object is solid, assembled, or reconstructed.
- Laboratory report for unusual or high-significance specimens.
How K2 Stone Is Evaluated
There is no universal grading system. Evaluation depends on whether the object is a natural specimen, slab, cabochon, bead strand, carving, inlay, or analytically documented geological sample.
Blue saturation
Strong blue is visually distinctive, but natural tonal variation, granular edges, and green alteration can be equally informative.
Pattern balance
A coherent relationship between open pale matrix and mineralized zones generally reads more clearly than an overcrowded or accidentally cropped pattern.
Host character
Visible quartz, feldspar, mica, grain boundaries, and local deformation preserve the geological identity of the rock.
Green alteration
Malachite-colored rims or spots can add mineralogical complexity when they are natural, stable, and not mistaken for applied pigment.
Surface preparation
The polish should reveal mineral contrast without severe pits, orange-peel texture, smeared copper zones, or extensive undercutting.
Structural condition
Open fractures, cracked drill holes, thin edges, loose filler, unstable backing, and repaired breaks affect durability.
Provenance
A reliable Khaplu-area label, original rough context, acquisition history, and analytical record can be more important than visual perfection.
Disclosure
Accurate naming and complete treatment history are central to scientific, historical, and collector value.
| Object type | Features to prioritize | Points to inspect |
|---|---|---|
| Natural specimen | Unpolished mineral relationships, natural surface, fracture context, associated rock, and provenance. | Applied pigment, glued fragments, artificial coating, unstable fractures, and unsupported locality. |
| Polished slab | Readable mineralized zones, even cut, stable thickness, representative host texture, and controlled polish. | Warping, severe undercutting, backing, resin, edge cracks, and dye concentrated on one face. |
| Cabochon | Balanced blue placement, sufficient girdle thickness, low-to-moderate dome, smooth polish, and protected fractures. | Blue zones at vulnerable corners, open seams, thin edges, filler, and excessive polishing relief. |
| Bead strand | Consistent rock identity, clean drilling, natural pattern variation, adequate wall thickness, and stable stringing. | Cracks around holes, mixed imitation beads, pigment transfer, resin, and sharp perforation edges. |
| Carving or freeform | Design aligned with blue zones, rounded projections, stable base, and even surface preparation. | Thin fins, concealed breaks, filled voids, glued sections, and weak mineralized boundaries. |
| Inlay or mixed-media object | Stable backing, sufficient stone thickness, compatible adhesive, and complete material documentation. | Delamination, metal staining, excessive heat exposure, moisture-sensitive joints, and replacement sections. |
Cutting, Polishing, Jewelry, and Decorative Use
K2 stone is workable but mechanically uneven. Successful cutting respects the harder silicate framework, softer blue zones, mica cleavage, pre-existing fractures, and the three-dimensional path of the mineralization.
Cabochons
Low or moderate domes preserve a broad pattern field while reducing edge vulnerability. A blue zone should not be placed directly across the thinnest girdle unless the area is structurally sound.
Pendants and brooches
Lower-contact forms protect the uneven polish and allow larger scenic cuts without the repeated impact experienced by rings.
Earrings
Light, balanced pairs can emphasize related rather than identical patterns. Secure settings are preferable to exposed wire pressure across fractures.
Beads
Drill paths should avoid major copper-rich zones and open fractures. Blue mineralization at a perforation can abrade or chip faster than the surrounding host.
Rings and bracelets
Protective bezels, low profiles, rounded corners, and occasional wear are preferable because the blue zones are too soft for prolonged unprotected abrasion.
Slabs and freeforms
Broad polished surfaces reveal spot geometry most clearly and are well suited to study, display, photography, and comparison of cut orientations.
| Rough feature | Useful approach | Likely result |
|---|---|---|
| Large blue mineralized volume | Mark several possible saw planes before cutting and compare where the widest cross-section will occur. | A deliberate central orb, paired zones, or a broad blue field rather than an accidental edge fragment. |
| Several connected spots | Use a larger freeform or slab that preserves the connecting mineral pathway. | A more geological composition showing fluid movement rather than isolated decorative dots. |
| Soft blue beside hard quartz | Use light pressure, clean abrasives, short polishing intervals, and frequent surface inspection. | Reduced undercutting and a more level transition between components. |
| Mica-rich host | Orient to minimize broad mica sheets at the highest point of a dome. | Less pitting, flaking, and uneven luster. |
| Open fracture | Trim away, reorient, stabilize with full disclosure, or reserve for a protected specimen form. | Improved durability and a clearer treatment history. |
| Thin scenic slab | Use stable backing only when necessary and document the assembly. | A broad visual field with reduced breakage risk, provided moisture and adhesive sensitivity are considered. |
Care, Cleaning, Handling, and Storage
K2 stone should be treated according to its most sensitive components. The pale host may resemble durable countertop granite, but the blue and green copper carbonates require substantially gentler handling.
Routine dusting
Use a clean soft cloth, soft artist’s brush, or hand air bulb. Remove loose grit before wiping so quartz particles do not scratch softer blue zones.
Brief hand cleaning
Use lukewarm water, a small amount of mild soap, and a soft brush or cloth. Rinse briefly and dry promptly around fractures, drill holes, and settings.
Acids and ammonia
Avoid vinegar, citrus, descalers, acid-based jewelry dips, ammonia, and strong household cleaners. Copper carbonates can dissolve, etch, or discolor.
Ultrasonic and steam cleaning
Avoid both. Vibration, heat, differential expansion, filler, backing, and mineral boundaries can respond unpredictably.
Handling copper-bearing rough
Wash hands after dusty work, keep the material away from food and drink, and do not place it in water intended for consumption.
Storage
Store separately in a padded compartment. Quartz, feldspar, corundum, diamond, and exposed metal edges can abrade the soft blue and green areas.
| Risk | Possible effect | Preventive approach |
|---|---|---|
| Acidic liquid | Etching, loss of copper carbonate, color change, pitting, and weakened blue zones. | Keep away from acids, foods, descalers, and chemical jewelry dips. |
| Abrasive cloth or powder | Dulled azurite, differential wear, scratches, and loss of polish. | Use clean soft materials only after removing loose grit. |
| Prolonged soaking | Moisture entering fractures, backing, filler, drill holes, and porous altered zones. | Clean briefly and dry promptly. |
| Ultrasonic vibration | Fracture extension, loosening of filler, and separation of assembled components. | Choose gentle hand cleaning. |
| Steam or concentrated heat | Thermal stress, coating damage, resin softening, and adhesive failure. | Keep away from steam cleaners, repair torches, hot plates, and sudden temperature change. |
| Point impact | Chipping of blue zones, cracked girdles, split beads, and opening of pre-existing fractures. | Use protective settings and remove jewelry before impact-heavy activity. |
| Hard neighboring stones | Surface abrasion and flattened blue areas during storage or transport. | Wrap or separate pieces individually. |
| Direct-contact water preparations | Transfer of copper-bearing residue or treatment products into the water. | Do not use K2 stone for drinking-water infusions or direct-contact elixirs. |
Symbolic and Reflective Meaning
Contemporary symbolism often draws from K2 stone’s mountain-associated name, pale foundation, and concentrated blue markers. These interpretations are modern and reflective rather than evidence of an ancient K2-specific tradition.
Wayfinding
The blue zones resemble markers across open terrain, offering an image for locating the next meaningful point rather than trying to solve an entire journey at once.
Foundation
The granitic host can symbolize the practical structures, skills, resources, and commitments that support a larger direction.
Perspective
One mineralized volume appears different on every cut face. The stone can represent how a situation changes when viewed from another level or angle.
Course correction
Green alteration around blue zones provides an image of adjustment: the route can change while the underlying landscape remains continuous.
Measured ambition
Mountain imagery can be used to distinguish a meaningful objective from the pressure to pursue every possible summit.
Signal within complexity
Bright color remains legible within a multi-mineral field, suggesting that one clear priority can coexist with uncertainty and competing information.
| Companion material | Combined symbolic theme | Practical reflection |
|---|---|---|
| Clear quartz | Direction joined with explicit intention. | Define the destination in one sentence before planning the route. |
| Smoky quartz or hematite | Ambition supported by grounding. | Identify the resources, time, and limits required for the next stage. |
| Sodalite | Wayfinding supported by structured thought. | Separate confirmed information from assumption before choosing a path. |
| Rose quartz | Clear direction held with compassion. | Choose a boundary that protects both the goal and the people involved. |
| Citrine | Orientation followed by visible action. | Convert the selected direction into one task that can be completed today. |
| Malachite | Course correction and adaptive growth. | Review which part of the plan should change without abandoning the central purpose. |
Reflective Practices
These exercises use the stone’s blue markers, pale terrain, and network of mineral pathways as structures for practical reflection.
Blue waypoint review
- Choose one blue zone and treat it as the next waypoint rather than the final destination.
- Name the one result that would represent meaningful progress this week.
- Write the evidence that would show the waypoint has been reached.
- Remove tasks that do not contribute directly to that evidence.
- Complete the smallest remaining action within the next available work period.
Contour-map decision
- Draw three nested contour lines on a page.
- Label the outer line “possibilities,” the middle line “realistic options,” and the inner line “current capacity.”
- Place each possible action in the appropriate zone.
- Remove any option that requires resources not presently available.
- Choose the strongest action inside the innermost contour.
Foundation and signal
- Observe the pale host before focusing on the blue.
- List three foundations already supporting the project: knowledge, time, people, tools, or experience.
- Choose one blue “signal” representing the central priority.
- Identify the foundation that needs reinforcement before the priority can advance.
- Strengthen that foundation through one concrete action.
Continue Into the Specialist K2 Stone Guides
K2 stone can be explored through mineral analysis, fluid mineralization, locality, evaluation, modern naming history, folklore, narrative, and reflective practice. These focused articles continue each subject in greater depth.
Frequently Asked Questions
What is K2 stone?
K2 stone is a pale granitic rock containing vivid blue copper-carbonate mineralization commonly identified as azurite, with occasional green areas attributed to malachite.
Is K2 stone a mineral?
No. It is a multi-mineral rock containing quartz, feldspars, mica, copper carbonates, and minor accessory minerals.
Is K2 stone really jasper?
No. Jasper is opaque microcrystalline quartz. K2 stone has a visibly crystalline quartz–feldspar–mica host, so “K2 jasper” is a trade misnomer.
Is the host definitely granite?
It is granitic in composition and texture. Some samples show mineral alignment or later deformation, so “granitic rock” or “granitoid” may be more precise when no formal petrographic study is available.
What creates the blue spots?
Analytical work on one sample found fine copper-bearing material in pores and fractures, chemically and visually consistent with azurite and malachite.
Are the blue spots solid azurite crystals?
Not necessarily. In analyzed material, the copper mineralization was fine-grained and distributed through microscopic fractures and pores rather than forming one large single crystal.
Why do the blue areas look circular?
A polished face cuts through three-dimensional mineralized zones. Central sections appear rounder, while off-center or oblique cuts appear smaller, oval, or irregular.
What are the green areas?
They are commonly attributed to malachite, a related green copper carbonate that can form alongside or through alteration of azurite-rich material.
Does every piece contain malachite?
No. Some pieces are predominantly blue and white, while others contain visible green spots, rims, or halos.
Where is K2 stone found?
The documented azurite-in-granite occurrence is in the Khaplu area of Ghanche District, Gilgit-Baltistan, Pakistan.
Does it come directly from K2 Mountain?
Current mineral-locality records distinguish the Khaplu-area occurrence from K2 Peak. The name is a regional trade association rather than a precise summit locality.
How did K2 stone form?
The granitic host crystallized first. Later deformation created pathways through which oxidizing copper-bearing fluids moved and deposited blue and green copper carbonates.
Is the exact geological process fully known?
No. The secondary copper-fluid model is consistent with available observations, but the precise fluid source, timing, temperature, and locality-scale geological sequence remain incompletely documented.
How hard is K2 stone?
The host is mostly around Mohs 6–7, while azurite and malachite are approximately Mohs 3.5–4. The surface therefore has strongly variable scratch resistance.
Why can the blue areas polish lower than the white host?
Azurite and malachite are substantially softer than quartz and feldspar. Abrasives can remove them more quickly, producing shallow pits or recessed spots.
Is K2 stone suitable for rings?
It can be used in protected, low-profile rings with a substantial bezel or secure prongs. Pendants and earrings are generally less exposed to abrasion and impact.
Can K2 stone go in water?
Brief mild hand cleaning is appropriate for sound untreated material. Prolonged soaking is unnecessary and may affect fractures, fillers, backing, coatings, or altered copper-rich areas.
Can it be cleaned with vinegar?
No. Vinegar is acidic and can attack the azurite and malachite, permanently etching or removing copper-carbonate material.
Can it be cleaned ultrasonically or with steam?
Both methods should be avoided because vibration and heat can extend fractures, loosen filler, and stress boundaries between minerals of different hardness and expansion behavior.
Is K2 stone safe to handle?
Finished pieces are suitable for ordinary handling. Avoid ingesting residue, wash hands after dusty rough work, and control dust during cutting or drilling.
Can K2 stone be used to prepare drinking water?
No. It contains copper-bearing minerals and should not be placed in water intended for consumption.
Is K2 stone commonly treated?
Natural material is often sold untreated, but resin stabilization, wax, backing, filler, and surface coatings can occur. Dyed and painted imitations are also known.
How can a dyed imitation be recognized?
Look for color pooling in scratches and pores, superficial dots, repeated circular patterns, pigment crossing grain boundaries, and blue that disappears at chips or drill holes.
Can real granite be painted to look like K2 stone?
Yes. A genuine pale granitic host can be decorated with blue pigment, so the presence of real quartz and feldspar does not by itself prove that the blue is natural.
How is K2 stone different from sodalite-bearing rock?
Sodalite generally forms angular grains, irregular patches, or broader masses within a feldspar-rich rock. K2 material is known for rounded blue copper-mineral zones and occasional green alteration.
How is it different from dyed howlite?
Howlite has a fine, porous, porcelain-like body and commonly shows gray veins. K2 stone has visible interlocking quartz, feldspar, and mica grains.
Does ultraviolet light identify K2 stone?
No. Fluorescence can vary among host and treatment materials and is not a reliable stand-alone test for azurite-bearing granitic rock.
Is K2 stone an official birthstone?
It is not included in the most widely used modern birthstone lists.
Does K2 stone have an ancient cultural tradition?
No securely documented ancient K2-specific tradition is established. Most symbolic interpretations associated with the material are modern.
What does K2 stone symbolize?
Contemporary interpretations commonly emphasize wayfinding, perspective, foundation, course correction, measured ambition, and choosing one clear marker within a complex landscape.
What information should remain with a specimen?
Retain the material identity, collecting area, district, country, acquisition history, dimensions, treatment, repair, cutting history, and any analytical documentation.
Final Reflection
K2 stone is compelling because it preserves several geological events at once. A granitic rock crystallized, later stress opened pathways, copper-bearing fluids entered those pathways, and blue and green carbonates marked selected regions of the pale host.
Its beauty depends on difference: hard quartz beside softer azurite, cool feldspar beside dark mica, broad white terrain beside concentrated blue. Those contrasts also determine how the material should be identified, cut, worn, cleaned, and documented.
Use the navigation buttons above to revisit any section or continue into the specialist guides for a deeper study of K2 stone, its mineralogy, locality, history, and modern symbolic interpretation.
