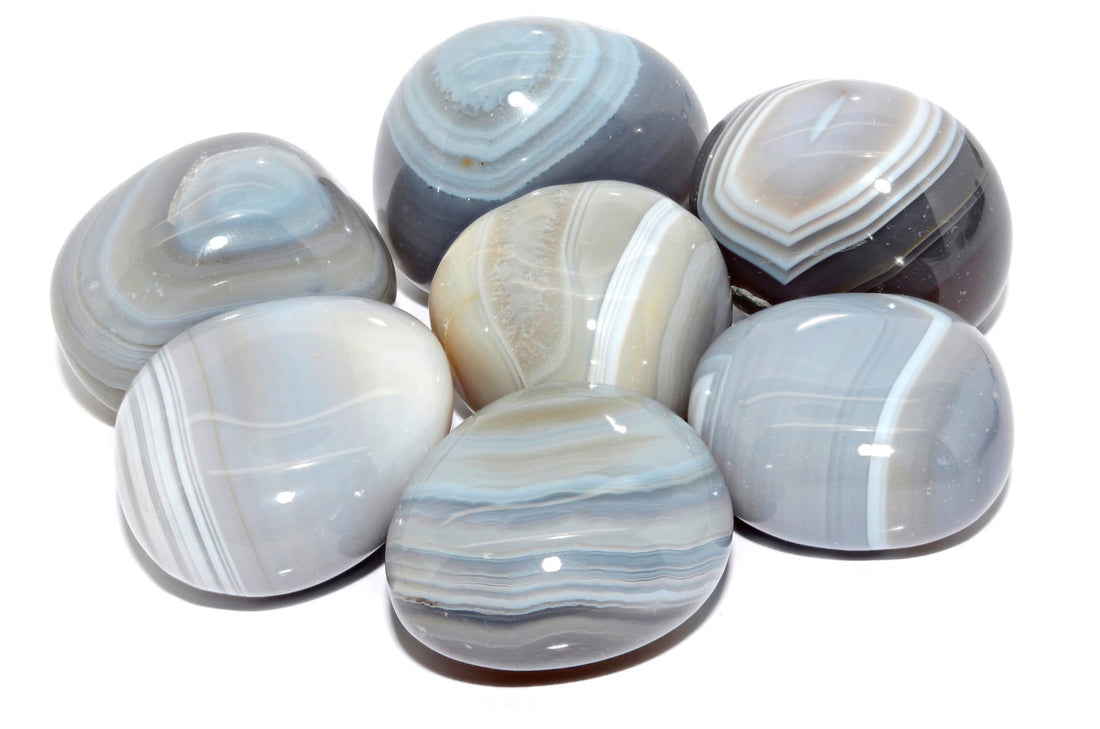

Grey agate: Formation & Geology Varieties
Share
Grey Agate Formation and Geology
The Quiet Architecture of Banded Chalcedony
Grey agate is the understated geological record of silica moving through stone. Its dove, smoke, cream and charcoal bands form when silica-rich fluids enter cavities, seams, fractures or replacement zones and deposit chalcedony in repeated pulses. Each layer preserves a small change in chemistry, texture, porosity or growth direction, turning an empty space in rock into a miniature landscape of lines, eyes, waterlines, drusy pockets and dendritic shadows.
- Banded chalcedony
- Microcrystalline quartz
- Volcanic cavities and seams
- Waterline and fortification structures
- Subtle grey colour causes
Overview
How Grey Agate Grows Its Bands
Grey agate forms through repeated silica deposition. The process usually begins with an opening: a gas bubble in volcanic rock, a fracture, a seam, a shrinkage crack, a small geode cavity or an irregular replacement zone. Silica-bearing water moves through that space and deposits chalcedony, a dense microcrystalline form of quartz. Over time, layer follows layer, and the stone records a sequence of changing conditions.
The grey palette is rarely caused by one ingredient alone. It develops through a combination of microscopic inclusions, carbonaceous material, iron or manganese compounds, porosity differences and the way light scatters through sub-micron chalcedony textures. This is why one piece can hold translucent white, misty grey, beige-grey, smoke, charcoal and near-black layers in a single nodule.
Space
Agate needs a cavity, seam, fracture or replacement zone where silica can accumulate and build inward.
Silica
Groundwater or low-temperature hydrothermal fluids carry dissolved silica through rock systems.
Pulses
Repeated changes in chemistry, concentration and texture create the alternating bands.
Exposure
Weathering releases durable agate from softer host rock, concentrating nodules in soils, gravels and streambeds.
Grey agate is not a single deposit frozen in place. It is a layered archive of many small silica events, each one leaving a visible line in the stone.
Material Identity
What Grey Agate Is
Grey agate is not a separate mineral species. It is a grey-toned expression of agate, the banded variety of chalcedony. Chalcedony belongs to the quartz family and is composed primarily of silicon dioxide, SiO2. Unlike visibly crystalline quartz, chalcedony is made of microscopic quartz fibres packed tightly enough to take a smooth polish and preserve very fine internal lines.
The word “grey” describes the dominant colour family rather than a single shade. Grey agate may be dove grey, blue-grey, warm beige-grey, smoke grey, cream, white, charcoal or black-grey. Some pieces are translucent enough to glow at the edge; others are almost opaque. Pattern is often more important than colour strength, especially in fortification, waterline, eye, tube, drusy and dendritic material.
| Material identity | Grey-toned agate, a banded variety of chalcedony. |
|---|---|
| Mineral family | Microcrystalline quartz. |
| Chemistry | Primarily silicon dioxide, SiO2. |
| Common colours | Dove grey, smoke grey, blue-grey, white, cream, charcoal, black-grey and soft brown-grey. |
| Common structures | Fortification bands, waterline layers, eyes, tubes, drusy pockets, moss-like inclusions and dendritic forms. |
| Typical settings | Volcanic cavities, fractures, seams, tuffs, replacement zones, sedimentary cavities and weathered gravel deposits. |
Growth Sequence
From Empty Cavity to Banded Stone
Grey agate formation is best understood as a sequence rather than a single event. The same broad pattern applies whether the final stone is a small nodule, a seam agate, a thunderegg centre or a drusy-lined geode.
An opening forms
A gas bubble, fracture, seam, shrinkage crack or replacement zone creates the space where agate can develop. The original shape strongly influences the final pattern.
Silica enters the system
Weathering volcanic glass, ash, tuff, quartz-bearing rock or siliceous sediment releases silica into circulating water. The silica travels through pores and fractures.
The walls are coated
When fluids become supersaturated, silica begins to precipitate along cavity walls or fracture surfaces. Early layers often follow the outline of the available space.
Repeated pulses build bands
Each new fluid episode may differ slightly in silica concentration, impurity content, texture, porosity or crystallization behaviour, creating visible grey-white contrast.
Silica gel reorganizes
Many agates are thought to pass through a silica gel or poorly ordered silica stage before reorganizing into dense fibrous chalcedony.
Late quartz may grow
If open space remains, later quartz crystals can grow inward, forming drusy interiors, sparkling pockets or crystalline centres.
Weathering releases the agate
The host rock eventually breaks down. Dense chalcedony survives as nodules, seams, pebbles and fragments in soils, arroyos, streambeds and gravels.
Geologic Settings
Where Grey Agate Forms
Grey agate can form wherever silica-rich fluids have room, time and suitable chemistry. Volcanic terrains are especially favourable because they provide both cavities and silica sources, but agate is not restricted to one rock type.
Vesicular volcanic flows
Basalt, rhyolite and related volcanic rocks may contain gas bubbles known as vesicles. These rounded openings often produce nodular agates with fortification bands that echo the cavity walls.
Volcaniclastic layers and tuffs
Ash-rich deposits, altered volcanic glass and welded tuffs can supply silica and create pathways for fluid movement through pores, cracks and irregular cavities.
Fractures, seams and veins
Long, narrow openings can fill with chalcedony in flat or gently curved layers, producing seam agate and waterline structures.
Replacement zones
In some settings, silica replaces earlier material rather than merely filling a void. Replacement agate can preserve inherited shapes and irregular textures.
Geodes and hollow centres
Some cavities remain partly open after chalcedony forms, allowing late quartz crystals to grow as drusy linings or sparkling vugs.
Alluvial gravels and desert surfaces
These settings usually concentrate agate after formation. Erosion frees dense nodules from host rock and collects them in streambeds, washes and surface lag deposits.
A grey agate pebble found in a streambed did not form there. The stream exposed, transported and polished it after the agate had already grown inside its original host rock.
Fluid Chemistry
The Silica Pathway
The central ingredient in grey agate is silica. Volcanic glass, ash, tuff, siliceous sediment and quartz-bearing rock can all release silica during weathering or low-temperature alteration. In water, silica may move as dissolved silicic acid until changing conditions favour deposition.
Agate does not require a single dramatic volcanic event. Many agates form in low-temperature hydrothermal or groundwater-related environments where slow movement, repeated replenishment and subtle chemical shifts matter more than intense heat. Cooling, evaporation, fluid mixing, pH change, pressure shift or reaction with host rock can all trigger silica precipitation.
Source
Silica is released from volcanic glass, ash, tuff, quartz-bearing rock or siliceous sediment.
Transport
Groundwater and low-temperature hydrothermal fluids carry silica through pores, fractures and cavities.
Deposition
Supersaturation, cooling, pH shifts, evaporation or fluid mixing causes silica to settle as chalcedony layers.
Internal Architecture
Why Agate Makes Bands
Banding forms because each layer records a slightly different growth condition. A change too small to notice in the fluid can become visible in the stone when repeated over thousands of microscopic fibres.
Wall-lining growth
Layers coat the inside of a cavity and move inward. This creates fortification patterns that trace the original wall shape.
Gravity-influenced filling
Calmer filling in seams or partial cavities can produce straighter, more parallel waterline bands.
Diffusion and rhythmic precipitation
Chemical fronts moving through forming silica can create delicate spacing, tone shifts and repeated light-dark sequences.
Shrinkage and healing
Silica gel may shrink as it loses water, forming microcracks that later heal when new silica enters.
Changing porosity
Some layers are more porous, cloudier or impurity-rich, while denser layers remain brighter, smoother and more translucent.
Late-stage quartz
Crystalline quartz may grow in remaining cavities after chalcedony bands have formed, creating drusy pockets and geode centres.
Fortification versus waterline
Fortification agate usually records inward growth from irregular cavity walls, so the bands resemble maps, walls or nested outlines. Waterline agate records quieter, level filling stages, so the bands appear straighter and more sediment-like. Both are made of chalcedony, but the geometry of the original space changes the final design.
Colour Causes
Why Grey Agate Is Grey
Grey agate rarely has a single colour cause. Most grey tones come from the combined effect of microscopic impurities, inclusion particles, layer thickness, porosity and light scattering through chalcedony. Since each band forms during a different growth stage, one layer may be milky white while the next becomes smoky, charcoal or warm beige-grey.
| Influence | Possible Appearance | Geological Effect |
|---|---|---|
| Carbonaceous matter | Cool grey, smoky grey or charcoal tones. | Ultra-fine particles darken selected silica layers. |
| Iron compounds | Dove grey, beige-grey, brown-grey or warmer outer zones. | Low concentrations add warmth or subtle shadowing, especially near rinds and fractures. |
| Manganese oxides | Dark dendrites, black specks, fern-like or scenic inclusions. | Oxide minerals enter fractures, pores or growth zones and create branching forms. |
| Sub-micron texture | Misty grey, milky grey or soft translucent haze. | Fibre size and texture differences scatter light inside the chalcedony. |
| Porosity variation | Different density, translucency and absorption between bands. | More porous layers can appear cloudier and may take dye more readily in treated material. |
| Oxidation | Brown-grey, beige-grey or warmed rind tones. | Long exposure alters iron-bearing zones, especially near the exterior. |
Natural grey agate usually shows nuance, layered translucency and subtle irregularity. Very uniform black-grey or flat dark material may be dyed chalcedony, especially in onyx-style stock.
Pattern Varieties
The Main Looks of Grey Agate
Grey agate is a family of appearances rather than one fixed look. Each variety reflects cavity shape, fluid behaviour, impurity pattern or late mineral growth.
Fortification grey agate
Angular or concentric bands trace the original cavity walls, creating map-like, architectural or target-like patterns.
Waterline grey agate
Straight or gently curved parallel bands record calmer filling stages in seams, fractures or partial cavities.
Grey onyx-style agate
Parallel-banded chalcedony with grey, white, cream or black-grey stripes. The term should be distinguished from banded calcite sold as decorative onyx.
Grey eye agate
Circular or oval centres surrounded by rings of chalcedony, often resembling moons, targets or soft focal points.
Tube and channel agate
Tube-like structures form around early channels, inclusions, gas pathways or growth irregularities.
Drusy-trimmed grey agate
Late quartz crystals line remaining open spaces, contrasting sparkling interiors with smooth grey bands.
Dendritic grey agate
Branching manganese or iron oxide inclusions create fern-like, mossy or landscape-like scenes within the chalcedony.
Botswana-style grey agate
Fine rhythmic bands, dove-grey tones and occasional lilac, cream or warm beige notes create a subtle, refined appearance.
Dendrites are inclusions, not plants
Dendritic grey agate can look botanical, but the branching forms are mineral patterns, usually related to manganese or iron oxides. Their value lies in the visual composition they create: dark, delicate lines suspended in pale grey chalcedony.
Environment Matrix
How Setting Shapes Variety
The original geological environment influences the final pattern. A rounded vesicle, a flat seam, a tuff layer and a remaining geode cavity each guide silica growth differently.
| Environment | Likely Form | Pattern Tendency | Geological Control |
|---|---|---|---|
| Vesicular basalt | Nodular fortification grey agate. | Rounded or angular concentric bands. | Silica coats gas-bubble walls and grows inward. |
| Rhyolite and thunderegg fields | Thunderegg centres, fortification structures and drusy interiors. | Irregular nodules, angular bands and quartz pockets. | Silica fills shrinkage spaces and cavities in volcanic host rock. |
| Fractures and seams | Waterline grey agate and onyx-style banding. | Parallel stripes or gently curved layers. | Flat openings encourage linear, level growth. |
| Volcaniclastic tuffs | Seam agate, small nodules and irregular grey chalcedony. | Variable bands, patches and fracture fills. | Ash-rich layers supply silica and fluid pathways. |
| Replacement zones | Irregular grey agate, mossy chalcedony and dendritic forms. | Less regular bands, inclusions and preserved textures. | Silica replaces earlier material while retaining shapes or voids. |
| Open geode centres | Drusy-trimmed grey agate. | Smooth agate walls with sparkling quartz centres. | Late-stage quartz grows after chalcedony banding. |
| Alluvial gravels | Rounded pebbles and weathered nodules. | Rind-darkened exteriors and naturally tumbled surfaces. | Host rock erodes and durable agate survives transport. |
Occurrences
Recognized Grey Agate Sources and Geological Contexts
Grey agate occurs worldwide. Locality can influence band style, colour nuance, host-rock association and collector interest, but every source produces a range from ordinary to exceptional material. Reliable locality claims depend on documentation, not pattern alone.
Botswana
Known for fine rhythmic banding, dove-grey and lilac-grey tones, cream accents and polished material valued for subtlety.
Brazil and Uruguay
Major agate-producing regions with nodules, geodes, quartz centres, fortification bands and material used in both natural and dyed forms.
India
Long associated with agate cutting and polishing, including grey waterline, fortification, bead, carving and cabochon material.
Germany and Idar-Oberstein
Historically important for agate cutting, dyeing and carving, including onyx-style banded chalcedony and decorative objects.
United States
Western rhyolite fields produce thundereggs and volcanic-hosted agates, while Great Lakes material may show grey, cream and iron-toned bands.
Madagascar, Namibia and Mexico
These regions supply varied chalcedony and agate, including neutral grey, smoky, lace, plume, mossy and dendritic styles.
A pattern may suggest a source, such as Botswana-style fine grey banding or western thunderegg structure, but visual style alone rarely proves origin.
From Rough to Polish
Field, Cutting and Treatment Notes
Rough grey agate can look plain until opened. Weathered rinds, host-rock coatings and dull exteriors often conceal crisp internal structures. Cutting orientation determines whether the finished piece emphasizes fortification architecture, linear waterlines, centred eyes, tubes, dendrites or drusy interiors.
Rind and exterior
Dull, pitted, iron-stained or darkened rinds are common. Broken edges, translucent chips and small exposed windows may hint at the interior.
Host-rock clues
Basalt, rhyolite, tuff or ash textures point toward volcanic formation, while sedimentary or carbonate associations may suggest seam or replacement settings.
Cutting across bands
Cross-cutting reveals fortification structures, eyes and concentric nodule architecture.
Cutting parallel to bands
Parallel cutting emphasizes waterline or onyx-style stripes, especially in signet stones, beads and rectangular cabochons.
Backlighting
Pale grey and white layers may glow when thin or backlit, while darker bands remain graphic and architectural.
Drusy and fragile zones
Open vugs and quartz pockets are visually striking but may be better suited to protected jewellery, slices or specimens than high-impact wear.
| Topic | Clear Description | Why It Matters |
|---|---|---|
| Natural grey agate | Shows layered nuance, translucency differences and natural tone variation. | Pattern and subtlety are part of the material’s geological character. |
| Dyed grey-black chalcedony | May show very uniform darkness, colour concentration in fissures or flat black-grey tone. | Dyeing is common in dark onyx-style chalcedony and should be described clearly when known. |
| Stabilized material | Fractured, porous or drusy pieces may be reinforced for durability. | Stabilized pieces should be protected from harsh heat, steam and aggressive cleaning. |
| Onyx terminology | In mineralogical usage, onyx is parallel-banded chalcedony; in decorative trade, onyx may also mean banded calcite. | “Grey banded agate” is often the clearest term when the material is chalcedony. |
Questions
Grey Agate Formation FAQ
Is grey agate a separate mineral?
No. Grey agate is a colour and pattern category within agate. Agate is banded chalcedony, a microcrystalline form of quartz composed primarily of silicon dioxide.
How does grey agate form?
It forms when silica-rich fluids deposit chalcedony in repeated layers inside cavities, seams, fractures or replacement zones. Each layer records slightly different growth conditions.
Why does agate form so often in volcanic rocks?
Volcanic rocks commonly contain gas bubbles, fractures, volcanic glass and ash-rich layers. These provide both open spaces and silica sources, making them favourable environments for agate formation.
What makes grey agate grey?
Grey tones may come from ultra-fine carbonaceous material, iron or manganese compounds, subtle inclusions, porosity differences and light scattering within chalcedony layers.
What is fortification grey agate?
Fortification grey agate has concentric or angular bands that follow the shape of the original cavity. The pattern can resemble walls, maps, targets or nested architectural outlines.
What is waterline grey agate?
Waterline grey agate shows straighter, more parallel bands, usually formed during calmer filling stages in seams, fractures or partly filled cavities.
Is grey onyx the same as grey agate?
In mineralogical usage, onyx is parallel-banded agate, so grey onyx can be a type of grey agate. In decorative stone trade, “onyx” may also refer to banded calcite, which is a different and softer material.
Can grey agate have drusy quartz?
Yes. If open space remains after chalcedony bands form, later quartz crystals can grow inside the cavity, producing drusy pockets, sparkling centres or crystal-lined vugs.
Can pattern alone prove locality?
No. Pattern can suggest a possible source, but reliable locality claims require documentation, field notes or trustworthy provenance.
Why does rough grey agate often look plain before cutting?
The exterior rind may be weathered, dull, stained or coated with host rock. The internal bands are usually revealed only after slicing, grinding and polishing.
The Takeaway
Grey Agate Is Geology Written in Soft Lines
Grey agate is built from patient silica layering. Fluids enter cavities, seams, fractures and replacement zones, then deposit chalcedony in repeated pulses. Minor changes in chemistry, porosity, impurity content and texture become visible as grey, white, smoke, cream and charcoal bands. Rounded volcanic cavities create fortification nodules; flat seams create waterlines; central growth points create eyes; channels create tubes; remaining open space creates drusy quartz; manganese and iron oxides create dendritic scenery. Its colour is quiet, but its structure is complex: every polished face is a cross-section through time, fluid, rock and microscopic crystallization.
