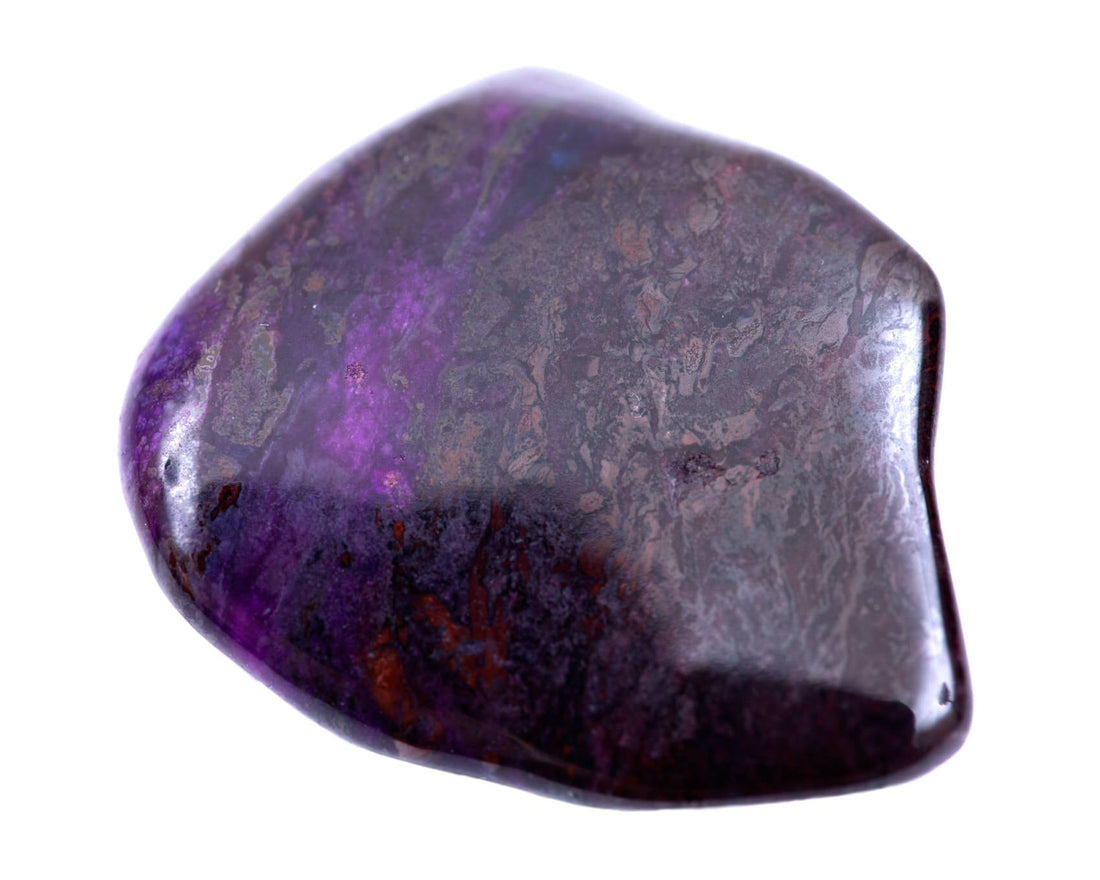

Sugilite
Share
Sugilite: Structure, Purple Color, Geology, Gem Material, and Care
Sugilite is a complex potassium-sodium-lithium silicate whose mineralogical identity is broader than the royal-purple material for which it is famous. The original Japanese type material is light brownish yellow and occurs as small grains in aegirine syenite. The celebrated violet gem material comes chiefly from manganese-rich rocks of South Africa, where manganese-bearing sugilite forms massive layers, veins, patches, and fine-grained aggregates with braunite, aegirine, pectolite, quartz or chalcedony, and other metamorphic silicates. Some pieces are nearly uniform violet; others contain black seams, pale veining, orbicular patterns, layered textures, or translucent zones described commercially as “gel.” This guide connects the mineral’s double-ring crystal structure with its changing chemistry, color, geological formation, physical properties, identification, lapidary behavior, history, cultural interpretation, and conservation.
Quick Facts
Sugilite is a mineral species, but much of the material fashioned into cabochons, beads, inlay, and carvings is a fine-grained polycrystalline rock containing sugilite together with variable amounts of other minerals. A precise description should therefore distinguish pure or dominant sugilite from sugilite-bearing chalcedony, manganese-silicate rock, treated material, and imitation.
Identity, Classification, and Name
Sugilite is a distinct lithium-bearing cyclosilicate mineral. Its ideal end-member composition is commonly written as KNa₂Fe³⁺₂Li₃Si₁₂O₃₀, while natural specimens may contain important substitutions of Mn³⁺ and Al for Fe³⁺. The purple gem variety is therefore often described as manganoan sugilite.
The mineral belongs to the structural family variously called the milarite group, osumilite group, or milarite–osumilite group. These names refer to minerals built around double six-membered silicate rings and a characteristic arrangement of tetrahedral, octahedral, and large cation sites. The terminology differs among classification systems, but the underlying structural relationship is the same.
Sugilite was named for Japanese petrologist Ken-ichi Sugi, who discovered the material later described from Iwagi Islet. The original scientific description appeared in 1976. Because the name commemorates Sugi, a pronunciation with a hard “g” reflects the eponym, although several pronunciations are now established in ordinary gem and mineral use.
The first specimens did not resemble the purple ornamental stone now associated with the name. At Iwagi, sugilite occurs as small light brownish-yellow grains in aegirine syenite. Only after the South African occurrence entered scientific and gemological study did violet manganese-bearing material become the mineral’s dominant public image.
A mineral species
Sugilite has a defined crystal structure and compositional range. “Gel sugilite,” “royal sugilite,” and “pink sugilite” describe appearance or trade use rather than separate species.
IMA mineral symbol
The standardized abbreviation is Sug. It is useful in scientific tables, mineral assemblage diagrams, thin-section descriptions, and geological records.
Manganoan sugilite
This mineralogical description indicates sugilite containing manganese in the relevant structural sites. Mn³⁺ is central to the purple and reddish-purple colors of Wessels material.
Polycrystalline gem rock
Many cut pieces consist of microscopic sugilite grains with chalcedony, quartz, pectolite, aegirine, braunite, or other minerals. The object may therefore be a sugilite-bearing rock rather than a single-mineral mass.
Historical trade names
Royal Lavulite, Lavulite, Luvulite, and Royal Azel have been applied to purple material. These names carry no separate mineralogical status.
Closely related species
Sogdianite is structurally related but chemically distinct. Aluminosugilite is a separate Al-dominant species, not merely pale or low-grade sugilite.
| Classification level | Sugilite placement | Why it matters |
|---|---|---|
| Silicate class | Cyclosilicate containing double six-membered silicate rings | Explains the characteristic Si₁₂O₃₀ structural unit and its relation to other milarite-type minerals. |
| Structural group | Milarite–osumilite structural family | Connects sugilite with minerals that share the same broad framework architecture but differ in site chemistry. |
| Crystal system | Hexagonal | Controls its crystallographic symmetry even though most gem material lacks visible hexagonal crystal faces. |
| Space group | P6/mcc | Describes the repeating symmetry of the crystal structure. |
| Ideal species chemistry | KNa₂Fe³⁺₂Li₃Si₁₂O₃₀ | Defines the Fe³⁺-dominant end-member recognized as sugilite. |
| Gem-color substitution | Mn³⁺ and Al may substitute for Fe³⁺ | Natural substitution changes color, spectroscopy, and local chemistry without automatically creating a new species. |
| Separate related species | Aluminosugilite, KNa₂Al₂Li₃Si₁₂O₃₀ | An Al-dominant composition is recognized as its own mineral and should not be labeled simply as a sugilite variety. |
Crystal Structure and Chemistry
Sugilite’s purple appearance is carried by a highly ordered hexagonal structure. Double rings of silicon-oxygen tetrahedra form the dominant silicate unit, while lithium, iron, manganese, aluminum, sodium, and potassium occupy sites of different size and coordination.
- 1. Double six-membered ringsTwelve SiO₄ tetrahedra form two linked rings expressed as the Si₁₂O₃₀ unit characteristic of the milarite-type structure.
- 2. Lithium-bearing tetrahedral sitesLi occupies small structural positions that distinguish sugilite from many more familiar ornamental silicates.
- 3. Octahedral Fe–Mn–Al sitesFe³⁺ is dominant in the ideal species, while Mn³⁺ and Al substitute in natural material and influence color and spectroscopy.
- 4. Sodium sitesNa occupies larger coordinated positions within the structure and contributes to charge balance.
- 5. Potassium cavity siteK occupies a large site related to the open geometry of the double-ring framework.
- 6. Hexagonal symmetryThe repeating arrangement gives sugilite hexagonal crystallographic symmetry even when the specimen is a shapeless massive aggregate.
Formula interpreted
Potassium and sodium occupy comparatively large sites, lithium occupies smaller tetrahedral positions, Fe³⁺ and substituting Mn³⁺ or Al occupy octahedral sites, and silicon forms the double-ring framework.
Fe³⁺-dominant species
The ideal species is defined by ferric iron dominance in the relevant site. A purple sample can still contain substantial Fe³⁺ even when Mn³⁺ controls much of its visible color.
Manganese substitution
Mn³⁺ can replace part of the Fe³⁺ and Al. Its interaction with surrounding oxygen produces broad visible-light absorption responsible for violet and reddish-purple hues.
Chalcedony is not structural
Quartz or chalcedony may be intimately mixed with sugilite in gem material, but silica grains outside the sugilite structure do not belong to its chemical formula.
Natural compositional range
Published analyses differ because Fe, Mn, Al, Na, and minor constituents vary among localities, growth zones, and intergrown grains.
Related mineral species
Changes in which element dominates a structural site can lead to a separate species. Aluminosugilite is the recognized Al analogue rather than a marketing grade of sugilite.
| Formula component | Structural role | Interpretive significance |
|---|---|---|
| Si₁₂O₃₀ | Forms the paired six-membered silicate rings. | Defines the double-ring cyclosilicate architecture. |
| Li₃ | Occupies small tetrahedral structural positions. | Makes sugilite a lithium-bearing mineral even though lithium does not create the purple color. |
| Fe³⁺₂ | Dominant ideal occupant of octahedral sites. | Defines the species end-member and contributes narrow spectral features. |
| Mn³⁺ | Substitutes for Fe³⁺ or Al in octahedral sites. | Produces the broad absorption central to purple and pink gem colors. |
| Al | Can substitute in octahedral positions. | Changes local crystal-field conditions; Al dominance defines aluminosugilite. |
| Na₂ | Occupies larger coordinated positions. | Contributes to charge balance and structural stability. |
| K | Occupies a large cavity site. | Reflects the spacious geometry of the milarite-type framework. |
Why Sugilite Is Purple
The purple and pink colors of manganese-bearing sugilite arise when visible light interacts with Mn³⁺ in its octahedral structural environment. Broad absorption across parts of the green-yellow region removes those wavelengths from transmitted or reflected light, leaving a visual balance dominated by violet, purple, magenta, or reddish purple.
Research on Wessels material also identifies narrow absorption features associated with Fe³⁺. The final appearance therefore depends on more than the total amount of manganese. Oxidation state, site occupancy, surrounding chemistry, crystal-field geometry, grain size, scattering, transparency, and intergrowth with other minerals all contribute.
Pink material is not merely diluted purple. Chemical differences can alter the crystal field around Mn³⁺ and shift the dominant absorption band. A specimen may consequently appear bluish violet, neutral royal purple, red-violet, magenta, or pink even when all examples belong to the same mineral species.
Royal violet
A balanced blue-red purple with strong saturation. This is the best-known appearance of South African material and may be nearly uniform or finely mottled.
Lavender and lilac
Lighter tone can reflect lower chromophore concentration, greater pale-mineral content, stronger scattering, or thin translucent sections.
Reddish purple and pink
A warmer hue can result from a changed Mn³⁺ environment and may become more apparent under incandescent or otherwise warm illumination.
Black and charcoal patterning
Dark seams and grains usually belong to associated manganese minerals, aegirine, altered ore, or fine inclusions rather than to an intrinsically black variety of sugilite.
Pale veins and patches
White, gray, or cream regions may consist of quartz, chalcedony, pectolite, carbonate, or other associated phases. They can brighten a pattern while reducing the proportion of sugilite.
Brownish-yellow type material
The original Iwagi material demonstrates that sugilite is not inherently purple. Different chemistry and low manganese content produce a very different appearance.
How light changes the appearance
Sugilite color should be assessed under more than one controlled light source because saturation, transparency, polish, and adjacent minerals strongly affect perception.
- Neutral daylight-equivalent lightProvides the most balanced basis for recording hue, tone, mottling, and pale or dark inclusions.
- Warm lightCan emphasize red-violet and wine-colored components, making some material appear more magenta.
- Cool lightCan strengthen blue-violet impressions and suppress warm matrix tones.
- BacklightingReveals translucent zones, internal veining, color zoning, and the true depth of material called “gel.”
- Reflected dark surroundingsCan make polished purple appear deeper than it is, especially in domed cabochons.
- Image processingStrong saturation, contrast, white-balance shifts, and black-background editing can significantly alter apparent quality.
Formation and Geological Setting
Sugilite forms in more than one geological environment. The Japanese type occurrence developed in an unusual alkaline intrusive rock, while the celebrated South African gem material formed during hydrothermal and metamorphic alteration of a much older manganese-rich sedimentary sequence.
Iwagi Islet, Japan
Sugilite occurs as small grains composing a minor but essential part of aegirine syenite. The syenite is associated with metasomatic alteration and contains albite, aegirine, pectolite, and additional accessory minerals.
Wessels Mine, South Africa
Purple manganoan sugilite occurs in the lower manganese orebody as layers, seams, patches, fracture-related concentrations, and material filling spaces among brecciated ore fragments.
Manganese-rich host
The host sequence began as chemical and volcanogenic sediment rich in manganese, iron, silica, and carbonate components. It was later buried, altered, metamorphosed, and cut by fluid pathways.
Hydrothermal overprint
Studies of the Wessels assemblages indicate a major hydrous, low-pressure metamorphic and metasomatic event. Fluids redistributed alkalis, silica, lithium, manganese, iron, and other elements through suitable layers and fractures.
Restricted chemical zones
Sugilite does not occur uniformly throughout the orebody. It appears where fluid access, host composition, oxidation state, permeability, and temperature combined within a narrow stability range.
Intergrown mineral rock
Because new silicates replaced and filled older manganese ore on a fine scale, polished gem material commonly contains several mineral species rather than a monomineralic mass.
Manganese-rich sediment accumulates
Iron, manganese, silica, carbonate, and volcanic components are deposited in an ancient basin, creating compositionally layered sedimentary material.
Burial transforms sediment into rock
Compaction, cementation, and early mineral reactions create bedded manganese ore and iron-rich units long before the purple sugilite forms.
Fractures and permeable bands guide fluid
Later deformation and fluid movement establish cracks, breccia spaces, and compositionally favorable layers through which reactive solutions can move.
Hydrous metamorphism reorganizes the ore
At Wessels, the principal assemblage has been interpreted as forming under low pressure in a hydrous environment, with published estimates near 400–450 °C for the main metamorphic stage.
Alkalis and lithium enter suitable zones
Potassium, sodium, lithium, silica, iron, manganese, and aluminum are brought together within a chemical setting capable of stabilizing the milarite-type structure.
Sugilite replaces and fills
New sugilite grains grow around fractures, along bedding, between brecciated blocks, and within altered zones, commonly interlocking with other silicates and manganese minerals.
Later silica and mineral veins develop
Quartz, chalcedony, pectolite, carbonates, oxides, and additional silicates may fill cracks, crosscut the purple material, or form pale and dark patterning.
Mining reveals localized lenses and seams
Blasting and underground excavation expose small, discontinuous zones of sugilite within the much larger manganese orebody.
| Setting | Host and process | Typical appearance | Interpretive importance |
|---|---|---|---|
| Iwagi Islet | Aegirine-bearing syenite related to metasomatic alkaline-rock processes | Small light brownish-yellow vitreous grains | Defines the mineral species and type locality but not the familiar gem color. |
| Wessels manganese ore | Hydrothermally altered and metamorphosed bedded manganese-rich sediment | Massive purple, layered, veined, mottled, or breccia-filling material | Principal source of the purple ornamental and translucent gem material. |
| Fracture zones | Reactive fluid movement along cracks and permeable structures | Veins, seams, narrow bands, and irregular patches | Shows that fluid access controlled localization. |
| Compositionally suitable layers | Replacement of selected sedimentary or ore bands | Layered purple material preserving original bedding geometry | Demonstrates the importance of host-rock chemistry. |
| Brecciated ore | Mineral growth between broken blocks of manganese-rich host | Angular dark fragments enclosed by purple or pale mineral fill | Produces visually dramatic material but strongly mixed mineralogy. |
| Other manganese-silicate deposits | Metamorphic or metasomatic assemblages in Australia, India, and Italy | Small grains, pink-purple aggregates, or mineralogical specimens | Broadens the known stability range without rivaling Wessels as a gem source. |
The purple stone is the visible endpoint of a much longer geological sequence: sedimentation, burial, fracture, fluid migration, metamorphic replacement, mineral intergrowth, and finally excavation.
Crystal Habits, Aggregate Forms, and Pattern Vocabulary
Sugilite rarely presents itself as a display of large free-standing crystals. Its visual identity is usually an aggregate identity: interlocking grains, layered replacement, translucent patches, dark ore fragments, pale veins, and color variation distributed across a polished surface.
Hexagonal crystal habit
Well-formed crystals are uncommon and generally small. They may be prismatic with vitreous faces, but most specimens reveal only subhedral grains.
Fine-grained aggregate
Microscopic grains can interlock closely enough to produce an apparently even field of violet when viewed without magnification.
Clouded color domains
Adjacent grains and mineral proportions create soft patches of lavender, royal purple, wine, gray, and black with no sharp banding.
Manganese-rich patterning
Black or charcoal lines may consist of braunite, aegirine, manganese oxides, or altered host material crossing the purple aggregate.
Quartz, chalcedony, or pectolite
White to gray veins can cut through the purple field, form nets, or divide the material into angular and rounded domains.
Parallel bands
Alternating violet, black, gray, and cream layers can preserve original bedding, repeated fluid pathways, or mineral-reaction fronts.
Internal color depth
Relatively clean translucent areas transmit light through a wine-purple or magenta body and may show internal veils, grains, or thin dark inclusions.
Rounded color domains
Some massive material contains pale or gray-purple circular to irregular rounded areas formed by aggregate texture and mineral distribution.
Angular fragments and fill
Broken dark ore pieces can be enclosed by purple sugilite-bearing material and pale vein minerals, recording fracture and later replacement.
Visible mineral grains
Coarser aggregates may reveal separate purple, black, white, and gray grains whose individual properties affect polish and durability.
Vitreous grain surfaces
Fresh sugilite grains can show glass-like luster, especially in rare crystals or freshly broken compact material.
Resinous broken surfaces
Fine-grained massive pieces may reflect light more diffusely and appear resinous rather than sharply vitreous.
High polished dome
A smooth cabochon can deepen the apparent tone, concentrate reflections, and reveal translucent windows not obvious on a rough surface.
Mixed polish
Quartz-rich and sugilite-rich areas may polish at different rates, leaving subtle relief or textural contrast across one stone.
Natural fractures
Fine veins may be mineral-filled and stable, open and weak, or later impregnated. Their appearance alone does not establish condition.
Pattern versus treatment
Natural mottling is irregular and mineralogical. Dye can imitate variation but often concentrates along pores, cracks, drill holes, and grain boundaries.
Physical and Crystallographic Properties
| Property | Typical expression | Practical significance |
|---|---|---|
| Ideal formula | KNa₂Fe³⁺₂Li₃Si₁₂O₃₀ | Defines the Fe³⁺-dominant mineral species. |
| Natural substitution | Mn³⁺ and Al substitute for Fe³⁺; Na and minor constituents may vary. | Explains color and analytical differences among specimens. |
| Structural class | Double-ring cyclosilicate of the milarite–osumilite family | Separates sugilite from quartz, mica, jade, and chain silicates with similar colors. |
| Crystal system | Hexagonal | Applies to the atomic structure even when no crystal outline is visible. |
| Point group | 6/mmm | Represents high hexagonal symmetry. |
| Space group | P6/mcc | Used in structural refinements and species comparison. |
| Crystal habit | Rare prismatic crystals; commonly subhedral grains, compact aggregates, and massive rock | Most fashioned material cannot be evaluated like a transparent single crystal. |
| Hardness | Approximately Mohs 5.5–6.5 | Resists casual scratching but remains vulnerable to quartz, topaz, corundum, and diamond. |
| Tenacity | Brittle mineral; interlocking massive material can be relatively tough | Durability depends strongly on grain boundaries, veins, matrix, and treatment. |
| Cleavage | Poor or indistinct on {0001} | Less cleavage-sensitive than many micas, but impact can still chip or split mixed material. |
| Fracture | Uneven to subconchoidal | Broken edges may be irregular and can expose granular texture or different mineral phases. |
| Density | Approximately 2.74–2.80 g/cm³ | Lower values can reflect chalcedony-rich material, porosity, or treatment, but density is not conclusive alone. |
| Color | Brownish yellow, colorless in thin section, pink, violet, bluish purple, and reddish purple | Color varies with composition and should not be used as the sole species test. |
| Streak | White | Streak testing damages fashioned material and is unnecessary for identification. |
| Luster | Vitreous; resinous on some massive broken surfaces | Polish and associated minerals can broaden the observed range from waxy to glass-like. |
| Transparency | Transparent to translucent in crystals; opaque to translucent in massive gem material | Dense grain boundaries and inclusions commonly prevent transparency. |
| Color stability | Generally stable under ordinary light and temperature conditions | High heat and harsh chemicals remain inappropriate, especially for mixed or treated material. |
| Acid behavior | Silicate mineral and associated phases can be etched or altered by strong acids | Acid cleaning is not a safe identification or preparation method. |
| Common fashioned material | Polycrystalline aggregate with one or more associated minerals | The weakest phase or vein governs practical care. |
Hardness is moderate
Sugilite is harder than calcite, fluorite, and many ornamental carbonates, but softer than quartz. Contact with ordinary mineral dust can therefore produce fine scratches.
Toughness can exceed expectation
Interlocking microscopic grains distribute stress, so compact Wessels material may perform better than the brittleness of an isolated crystal suggests.
Veins control failure
A thin pale or black seam may be softer, more porous, more brittle, or less firmly bonded than the surrounding purple material.
Mixed minerals alter tests
A refractive-index, density, hardness, or polish observation taken on one spot may measure chalcedony, pectolite, or another phase rather than sugilite.
Porosity varies
Dense translucent material may absorb very little liquid, while granular or fractured matrix can admit dye, oil, wax, resin, and cleaning solutions.
Scratch testing is unsuitable
A scratch can cross multiple mineral grains, damage polish, and still fail to identify the dominant phase. Laboratory methods provide better evidence.
Optical and Gemological Character
Single-crystal optical data describe the mineral species, while standard gemological readings on massive material describe a microscopic aggregate. Confusing those two scales can lead to incorrect claims about birefringence, pleochroism, or mineral purity.
| Optical property | Typical data | Interpretation |
|---|---|---|
| Optical character | Uniaxial negative | Applies to properly oriented single-crystal material. |
| Ordinary refractive index | Approximately 1.595–1.611 | Varies with composition and locality. |
| Extraordinary refractive index | Approximately 1.590–1.607 | Produces low birefringence. |
| Maximum birefringence | Commonly around 0.003 | Too small to produce dramatic doubling or optical fire. |
| Massive-material reading | Common spot or flat-facet reading near 1.607 for predominantly sugilite material | Random microscopic orientations generally prevent a clean single-crystal double reading. |
| Chalcedony-related reading | Approximately 1.544 | A separate reading near quartz indicates an additional silica phase rather than sugilite birefringence. |
| Pleochroism | Weak in transparent oriented crystals | Usually unresolved in polycrystalline cabochons because grains are randomly oriented. |
| Visible absorption | Broad absorption associated with Mn³⁺ and narrower bands associated with Fe³⁺ | Explains the intense violet-to-pink range and provides laboratory identification evidence. |
| Ultraviolet fluorescence | Often inert in predominantly sugilite Wessels samples | Fluorescence from matrix, dye, resin, or associated minerals may vary independently. |
| Transparency | Opaque to translucent in most fashioned material | Backlighting can reveal local translucent zones that ordinary reflected light conceals. |
Color without high dispersion
Sugilite’s attraction comes from body color, pattern, translucency, and polish rather than rainbow dispersion or high brilliance.
Single versus double RI readings
A massive aggregate commonly gives one broad spot reading. Separate readings near 1.607 and 1.544 indicate sugilite and chalcedony grains, not optical doubling within one grain.
Warm-light shift
Red-violet components become more prominent under warm illumination, while cooler sources may make the same stone appear more bluish.
Scattering and milkiness
Fine grain boundaries, microfractures, pale inclusions, and intergrown chalcedony scatter light and can turn transparent grains into an opaque-looking rock.
Backlit gel effect
Transmitted light can reveal layered wine-purple depths, veils, and color zoning that disappear against an opaque backing.
Ultraviolet limitations
An inert response can be consistent with natural sugilite, while fluorescence may come from another mineral or treatment. UV is comparative rather than decisive.
Under Magnification
A hand lens or gemological microscope can reveal whether a purple object is a coherent natural aggregate, a mixed mineral rock, a dyed porous simulant, a polymer-rich composite, or a reconstructed assembly. Examination should move from overall pattern to grain boundaries, veins, drill holes, surface polish, and internal light behavior.
Non-destructive examination sequence
Use neutral-white reflected light first, then low-angle light, transmitted light where possible, and ultraviolet comparison only after the visible structure has been mapped.
- Map the color domainsIdentify uniform purple areas, lighter grains, black seams, pale veins, translucent windows, and any region that looks painted or filled.
- Examine grain boundariesNatural aggregate grains vary in size, orientation, relief, luster, and color. One completely uniform polymer surface is different.
- Follow veins through the objectCheck whether pale and dark lines continue naturally around edges or stop at a backing, join, filled cavity, or surface coating.
- Inspect drill holes and recessesDye often concentrates where liquid entered, while resin may form glossy pools, menisci, or trapped bubbles.
- Compare surface and interiorA chipped edge, unfinished back, or natural cavity may reveal whether the purple is body color or a shallow surface treatment.
- Use transmitted lightLook for internal mottling, grain clouds, color zoning, fracture filling, and the actual extent of translucent material.
- Compare ultraviolet responseContrasting fluorescence may identify glue, filler, coating, or a different mineral, but matching responses do not prove uniform composition.
- Document before testingPhotograph the whole object, edge, back, suspicious zones, and any treatment indicators before cleaning or resetting.
Interlocking purple grains
Predominantly sugilite material may show a mosaic of differently oriented grains with subtle variation in tone and relief.
Chalcedony domains
Quartz-rich areas can appear grayish, milky, finely granular, or nearly transparent and may polish differently from adjacent sugilite.
Manganese-rich inclusions
Black grains and seams may be irregular, angular, fibrous, or branching. Natural distribution generally follows mineral texture rather than surface convenience.
Pectolite and pale silicates
White or cream needles, grains, and veins may belong to pectolite or other associates and can undercut during polishing.
Dye concentration
Artificial color may appear stronger in cracks, pits, pores, grain boundaries, and drill holes or may leave a paler interior beneath a polished surface.
Polymer and composite clues
Rounded bubbles, flow lines, unusually soft glossy films, repeated fragments, straight joins, and a continuous resin matrix can indicate impregnation or reconstruction.
Look-Alikes, Mislabels, and Imitations
Purple color is not diagnostic. Several natural minerals, dyed rocks, and manufactured composites can imitate sugilite in cabochons, beads, carvings, or rough fragments.
| Possible material | Why it resembles sugilite | Useful distinctions | Preferred confirmation |
|---|---|---|---|
| Charoite | Violet color, opaque to translucent appearance, black and pale patterning | Commonly shows sweeping fibrous swirls, silky chatoyancy, and strongly directional texture rather than granular purple mosaic. | Microscopy, Raman spectroscopy, refractive index, and locality data. |
| Amethyst or massive quartz | Purple body color and local translucency | Quartz has lower refractive index near 1.54, hardness 7, and commonly shows quartz fracture, crystal zoning, or chalcedonic texture. | Refractometry, Raman spectroscopy, and hardness only on expendable material. |
| Lepidolite or purple mica | Lilac to violet color and lithium-bearing association | Micaceous sparkle, perfect sheet cleavage, softness, and platy texture differ markedly from massive sugilite. | Microscopy, cleavage, Raman spectroscopy, and X-ray diffraction. |
| Purple jadeite | Lavender color, compact aggregate, high polish, and translucent cabochons | Jadeite is denser and generally tougher, with different refractive index and granular texture. | Refractometry, specific gravity, spectroscopy, and infrared analysis. |
| Dyed quartzite | Granular purple rock can closely imitate mottled sugilite | Lower refractive index, quartz hardness, and color concentrated between grains or in fractures. | Microscopy, refractometry, spectroscopy, and dye analysis. |
| Dyed magnesite or howlite | Porous white material accepts vivid violet dye and may have dark veining | Much softer, lower density in many cases, chalkier texture, and strong dye concentration in pores and drill holes. | Microscopy, Raman or FTIR, density, and laboratory color analysis. |
| Phosphosiderite | Opaque lilac to purple material with polished ornamental use | Softer phosphate mineral with different density, fracture, spectroscopy, and geological association. | Raman spectroscopy and X-ray diffraction. |
| Purpurite | Strong purple color and massive habit | Often earthy, softer, more porous, and compositionally a manganese phosphate rather than a silicate. | Raman spectroscopy, microscopy, and X-ray diffraction. |
| Purple fluorite | Violet color and possible translucency | Much softer, perfect octahedral cleavage, lower durability, and distinctive optical behavior. | Cleavage observation, refractive index, and spectroscopy. |
| Stichtite-bearing rock | Pink-purple patches in dark or green matrix | Usually softer and commonly associated with serpentine-rich green rock rather than manganese ore. | Raman spectroscopy and mineral assemblage. |
| Resin composite | Can reproduce saturated purple, black veins, and glossy polish | Polymer matrix, bubbles, mold seams, repeated fragments, low thermal response, and uniform surface gloss. | Microscopy, FTIR, ultraviolet comparison, and density. |
| Sogdianite | Closely related milarite-type structure and possible violet color | Distinct site chemistry and species identity; visual separation may be impossible. | X-ray diffraction, Raman spectroscopy, and chemical analysis. |
Localities and Their Mineralogical Character
Sugilite is known from several countries, but the localities differ sharply in color, grain size, host rock, scientific importance, and availability of material suitable for cutting.
Iwagi Islet, Ehime Prefecture, Japan
The type locality. Sugilite occurs as small light brownish-yellow grains in aegirine syenite with albite, aegirine, pectolite, and accessory minerals. Its importance is scientific rather than gemological.
Wessels Mine, South Africa
The defining gem locality. Purple manganoan sugilite occurs in localized layers, seams, fracture zones, patches, and breccia fill within the Kalahari Manganese Field.
N’Chwaning mines, South Africa
Sugilite has been reported from the broader Kalahari manganese district, although the most historically documented gem material is associated with Wessels.
Madhya Pradesh, India
Early reports described tiny pink crystals or grains in manganese ore. The occurrence helped establish that manganese-bearing color was not unique to one mine.
Mont Saint-Hilaire, Quebec, Canada
A mineralogically diverse alkaline complex known for rare species. Sugilite occurs as a minor mineral rather than a major ornamental-stone resource.
Cerchiara Mine, Liguria, Italy
Manganiferous metachert has produced sugilite-group material, including the distinct Al-dominant species aluminosugilite.
Woods and Hoskins mines, New South Wales, Australia
Sugilite occurs in manganese-silicate rocks and contributes to understanding the mineral’s behavior in metamorphosed manganese deposits outside South Africa.
| Region | Geological setting | Characteristic interest | Documentation priority |
|---|---|---|---|
| Iwagi Islet, Japan | Aegirine syenite in a metasomatic alkaline-rock setting | Type material, original chemistry, and crystal structure | Exact outcrop, host rock, associated minerals, and relation to the type occurrence |
| Wessels Mine, South Africa | Hydrothermally metamorphosed lower manganese orebody | Royal-purple massive material, translucent zones, and complex mineral intergrowths | Mine, level or zone where known, matrix, associated minerals, treatment, and extraction history |
| N’Chwaning district, South Africa | Kalahari manganese deposits | District-level comparison and unusual manganese assemblages | Specific mine and verified collection records rather than a broad Kalahari attribution |
| Madhya Pradesh, India | Manganese ore | Small pink Mn-bearing material of scientific interest | Exact mine, host, analytical confirmation, and distinction from related minerals |
| Mont Saint-Hilaire, Canada | Alkaline intrusive complex | Rare-mineral association and comparison with the Japanese setting | Rock unit, collecting site, grain identification, and analytical data |
| Liguria, Italy | Manganiferous metachert | Sugilite-group crystal chemistry and aluminosugilite | Species-level analysis rather than color-based naming |
| New South Wales, Australia | Metamorphosed manganese-silicate rocks | Regional paragenesis and compositional comparison | Mine, rock type, assemblage, and analytical confirmation |
Colors, Forms, and Trade Terms
Most names attached to sugilite describe color, transparency, pattern, mixture, or historical marketing. They should not be confused with formal mineral varieties or separate species.
Purple sugilite
A broad descriptive category covering bluish violet, royal purple, red-violet, and wine-colored manganese-bearing material.
Pink sugilite
A descriptive term for reddish-purple to pink material. Pink can reflect a changed Mn³⁺ crystal field rather than simple reduction in color intensity.
Gel sugilite
A trade term for translucent material with internal color depth. It is not a separate species and does not automatically indicate pure sugilite.
Sugilite with chalcedony
A natural mixed rock in which chalcedony or microcrystalline quartz occurs with and may be colored by sugilite. A dual-mineral description is often appropriate.
Matrix sugilite
A broad descriptive phrase for purple sugilite intergrown with dark manganese ore, aegirine, pale silicates, quartz, or other host material.
Layered or veined sugilite
Pattern terms describing banded replacement, crosscutting pale veins, black seams, or repeated mineral fronts.
Lavulite and Royal Lavulite
Historical trade names applied to South African purple material. They are synonyms in commerce, not independent mineral names.
Royal Azel
Another historical commercial name. It should not replace the accepted mineral name on a scientific label.
Sugilite jade
A misleading ornamental-stone expression. Sugilite is neither jadeite nor nephrite and should not be represented as a jade species.
Aluminosugilite
A separate Al-dominant mineral species with its own ideal formula. It is not a grade, color variety, or treatment of sugilite.
Assessing Sugilite Material
There is no universal scientific grading scale for sugilite. Assessment changes according to whether the object is a mineral specimen, lapidary rough, a polished gem, an analytical reference, or a geological rock preserving important associations.
Hue and saturation
Strong violet and royal-purple colors are widely admired, but pink, red-violet, layered, and matrix-rich material may be equally important in a geological or mineralogical context.
Tone and translucency
Very dark material may appear nearly black without strong light. Translucent zones reveal internal color, but excessive thinness or backing can exaggerate the effect.
Mineral proportion
The percentage of actual sugilite relative to chalcedony, quartz, pectolite, manganese ore, and other phases affects identity, durability, and optical readings.
Pattern coherence
Veins, mottling, dark seams, orbicular domains, and layering can add visual and geological interest when they form a coherent natural structure.
Polish and surface
A strong polish should retain natural pattern without excessive waviness, undercutting, scratches, burned areas, resin films, or concealed cavities.
Structural integrity
Open fractures, weak black seams, pale undercutting minerals, repaired breaks, and granular zones determine whether the piece is stable enough for its intended use.
| Assessment factor | Favorable evidence | Points requiring description |
|---|---|---|
| Color | Natural-looking saturation, balanced tone, and consistent appearance under controlled light | Color restricted to surface, pores, drill holes, fractures, or image enhancement |
| Transparency | Genuine internal transmission with natural clouds, grains, and veils | Backed construction, thin veneer, filled void, or resin-dominated transparency |
| Mineralogy | Predominantly sugilite or accurately described natural mixture | Material called pure sugilite despite strong chalcedony, quartz, or matrix content |
| Pattern | Continuous natural veining and mineral domains visible around edges and reverse | Painted lines, assembled fragments, surface-only pattern, or artificial backing |
| Polish | Even surface with sharp outline and no heat damage | Orange peel, undercut veins, scratches, waxy coating, or polymer film |
| Fractures | Closed stable mineralized veins or clearly documented repairs | Open cracks, resin-filled seams, unstable dark inclusions, or concealed breakage |
| Cut | Orientation reveals color and pattern without excessive thinning | Very shallow construction, unstable corners, unsupported translucent sections, or hidden backing |
| Provenance | Mine, district, prior labels, collector, and treatment history retained | Locality inferred only from purple color or repeated commercial description |
| Treatment | Untreated status supported or all dye, impregnation, fill, and composite work disclosed | Color or structural enhancement presented as natural and unmodified |
| Scientific context | Matrix, associated minerals, orientation, and analytical data preserved | Complete removal of matrix or undocumented sampling that destroys paragenetic evidence |
Treatments, Composites, and Confident Identification
Untreated natural sugilite is widely encountered, but saturated purple color creates an incentive to dye pale rocks, impregnate porous material, assemble composites, or apply broad names to unrelated stones. Treatment analysis should be evidence-based and non-destructive.
Natural mixed material
A genuine piece can contain sugilite, chalcedony, quartz, pectolite, aegirine, braunite, richterite, or other minerals. Mixture is not treatment, but it should be described accurately.
Dyeing
Porous quartzite, magnesite, howlite, and pale aggregate material can be dyed purple. Natural sugilite-bearing rock may also receive color enhancement in fractures or porous zones.
Impregnation
Resin, wax, or oil can strengthen weak material, improve polish, darken color, or reduce the visibility of cracks and pores.
Fracture filling
Clear or colored filler may occupy open seams. Glossy menisci, bubbles, flow boundaries, and ultraviolet contrast can indicate intervention.
Composite construction
Thin natural veneers, assembled fragments, dyed backing, and polymer matrix can create a larger or more uniform purple object.
Surface coating
Wax or polymer can produce continuous gloss across minerals that would naturally polish differently and may collect along edges or recesses.
Evidence hierarchy for identification
Confidence increases when independent observations agree. Color by itself remains the weakest evidence.
- Documented provenanceTraceable mine, district, collector, prior labels, and treatment history establish context.
- Coherent natural textureInterlocking mineral grains, continuous veins, irregular inclusions, and different lusters support a geological aggregate.
- Gemological dataSpot refractive index near 1.607 and specific gravity near the expected range support predominantly sugilite material.
- Mixed-phase readingsSeparate readings near 1.607 and 1.544 support a sugilite–chalcedony rock.
- Raman spectroscopyIdentifies individual grains and distinguishes sugilite from charoite, quartz, phosphates, and dyed host material.
- Infrared spectroscopyHelps identify polymer, wax, dye-related features, and some mineral phases.
- X-ray diffractionConfirms crystalline phases in powders or suitable analytical preparations.
- Chemical analysisDetects the K–Na–Li–Fe–Mn–Al composition and separates related milarite-type species.
| Observation | Possible interpretation | Why it is not conclusive alone |
|---|---|---|
| Royal-purple color | Natural manganoan sugilite | Dyed quartzite, magnesite, resin, and other minerals can match the hue. |
| Black veining | Manganese-rich natural matrix | Painted lines and dyed porous veins can imitate the pattern. |
| Translucent gel appearance | Clean translucent sugilite-rich material | Chalcedony mixtures, thin veneers, and resin composites can also transmit light. |
| Spot RI near 1.607 | Predominantly sugilite surface | One spot does not reveal every grain or establish treatment status. |
| Spot RI near 1.544 | Quartz or chalcedony-rich region | The object may still contain genuine sugilite elsewhere. |
| Inert ultraviolet response | Consistent with many natural Wessels samples | Some imitations and treatments are also inert. |
| Strong UV contrast in a seam | Adhesive or filler | Natural associated minerals can fluoresce differently. |
| Low apparent density | Chalcedony-rich, porous, or polymer-containing material | Shape, weighing error, inclusions, and air cavities also affect the result. |
Jewelry, Cutting, and Lapidary Behavior
Compact sugilite can accept a strong polish and may be considerably tougher than a single brittle crystal because its grains interlock. Its moderate hardness and variable veins still require thoughtful design, cutting orientation, and maintenance.
Cabochons
Domed cuts concentrate color and allow mottling, black seams, pale veins, and translucent zones to remain legible without exposing sharp vulnerable corners.
Beads
Uniform rounds emphasize color continuity, while patterned beads reveal mineral variation. Drill holes should be checked for fractures, dye, and weak veins.
Inlay
Thin sections provide intense purple accents, but differences in hardness between sugilite, chalcedony, metal, and adjacent stones can complicate finishing.
Carvings and tablets
Massive material accommodates broader forms, although undercutting minerals and concealed fractures can appear as material is removed.
Faceted translucent material
Clean translucent pieces can be faceted, but low birefringence and moderate refractive index produce subdued brilliance. Body color remains the principal visual feature.
Protective settings
Bezels, recessed mounts, broad support, and low-profile designs protect edges and corners better than exposed prongs or high-set ring designs.
| Use | Suitability | Design considerations |
|---|---|---|
| Pendant | Generally suitable | Protect sharp edges, inspect drill holes or bails, and avoid pressure across pale or black seams. |
| Earrings | Generally suitable | Low impact exposure; weight and secure attachment remain important. |
| Brooch | Suitable with stable mounting | Use broad support and keep metal pressure away from fractures. |
| Ring | Conditionally suitable | Use a protective bezel or recessed setting and avoid daily impact exposure. |
| Bracelet | Higher-risk use | Frequent contact with hard surfaces can scratch polish and chip vulnerable veins. |
| Beads | Suitable when structurally sound | Inspect holes for dye, filler, cracks, and abrasion from stringing components. |
| Inlay | Suitable | Match support, adhesive, and finishing methods to the mixed mineral composition. |
| Faceted gem | Rare and specialized | Requires sufficiently translucent, clean, stable rough and careful heat control. |
Orient for color
Translucent rough should be examined from several directions before cutting. Thickness can turn bright magenta into near-black violet.
Map weak seams first
Black and pale veins may split, crumble, or undercut. A cutting plan should avoid placing them across narrow bridges, corners, or drill holes.
Use light pressure
Excess pressure and local heat can open grain boundaries, chip edges, and cause uneven wear between mineral phases.
Keep the stone cool
Continuous water cooling reduces thermal stress, carries away abrasive particles, and suppresses dust from quartz- and manganese-bearing components.
Expect differential polish
Sugilite, chalcedony, pectolite, and dark ore minerals may respond differently to the same abrasive sequence.
Control all dust
Cut and grind wet, use local extraction, and avoid dry sanding. Mixed rough may contain respirable silica and fine manganese-bearing mineral particles.
Care, Cleaning, Storage, and Conservation
Care should follow the complete object rather than the nominal hardness of sugilite. A cabochon may contain softer minerals, porous veins, resin, dye, adhesive, metal backing, or open fractures that respond differently from the purple grains.
Use mild manual cleaning
Wash briefly with lukewarm water, mild soap, and a soft cloth or soft brush. Rinse without strong pressure and dry promptly.
Avoid abrasive cloths
Quartz dust and household grit can scratch the polish. Remove loose particles before wiping.
Avoid steam and ultrasonics
Heat and vibration can open fractures, loosen inlay, disturb filler, or separate weak mineral boundaries.
Avoid strong chemicals
Acids, bleach, aggressive jewelry cleaners, and strong solvents can alter matrix, dye, resin, adhesive, and polish.
Store separately
Quartz, topaz, corundum, diamond, and hard metal edges can abrade sugilite. Use a soft compartment or individual wrap.
Inspect settings periodically
Check prongs, bezels, drill holes, inlay edges, and fracture zones before wear. Movement against metal can enlarge chips.
Limit high heat
Natural color is generally stable in ordinary conditions, but direct flame, hot repair tools, and abrupt temperature change can damage stone, treatment, or setting.
Treat unknown material cautiously
Until dye, impregnation, and composite construction are ruled out, avoid prolonged soaking and solvent contact.
Support mineral specimens
Rough blocks can be heavier and more fractured than polished gems. Lift from broad stable surfaces rather than narrow veins or protruding crystal zones.
| Method or risk | Possible effect | Preferred approach |
|---|---|---|
| Dry wiping before dust removal | Hard grit scratches the polished surface. | Blow or rinse loose particles away before gentle wiping. |
| Long water soak | May affect porous matrix, dye, resin, backing, adhesive, or metal setting. | Use brief controlled cleaning. |
| Ultrasonic cleaner | Can extend cracks and loosen inlay or filled seams. | Use manual cleaning. |
| Steam cleaner | Rapid heat may stress mixed material and soften treatment or adhesive. | Use lukewarm water only. |
| Acid or bleach | Can etch associated minerals, change color, weaken filler, or dull polish. | Avoid strong chemical cleaners. |
| Solvent test | May mobilize dye or damage resin, glue, lacquer, and setting materials. | Leave treatment detection to a laboratory. |
| Impact | Can chip edges or break along mineral veins. | Use protective settings and remove jewelry during heavy work. |
| Contact with quartz or corundum | Produces scratches and loss of polish. | Store individually. |
| Direct flame or hot tool | Thermal stress, discoloration of treatment, and adhesive failure. | Remove the stone before high-temperature metal repair where feasible. |
Photography and Display
Sugilite is difficult to photograph accurately because cameras often turn saturated purple into blue, magenta, black, or artificially luminous violet. A faithful image preserves tonal variation, pale veins, dark mineral texture, and the difference between reflected and transmitted light.
Use a neutral background
Soft charcoal, warm gray, or muted cream separates the purple without casting a strong reflected color into polished surfaces.
Calibrate white balance
A neutral reference prevents violet from drifting toward electric blue or hot magenta.
Use broad diffused light
A large soft source reveals color and polish without turning every curved surface into a white glare patch.
Add a narrow side light
Low-angle illumination reveals grain texture, black seams, pale veins, polish quality, and surface relief.
Backlight translucent material
A second image with controlled transmitted light documents gel-like zones without implying that the entire object is equally transparent.
Include the reverse and edge
These views reveal thickness, backing, joins, color penetration, treatment, and mineral continuity.
Protect saturated channels
Overexposure can erase internal mottling, while excessive contrast can make dark veins appear artificially black and the purple falsely uniform.
Use scale and multiple lighting views
Overall, close, edge, transmitted-light, and scale images provide a more accurate record than one dramatic photograph.
Scientific Context
Sugilite connects mineral structure, transition-metal color, lithium geochemistry, alkaline metasomatism, manganese-deposit evolution, and gemological identification. Its most famous specimens are visually striking, but the species remains scientifically important even when it is brown, microscopic, or unsuitable for cutting.
Double-ring crystal chemistry
Structural studies show how silicon rings, lithium tetrahedra, octahedral Fe–Mn–Al sites, and large alkali sites combine in one hexagonal architecture.
Transition-metal spectroscopy
Mn³⁺ and Fe³⁺ absorption features provide a detailed case study in how oxidation state and crystal environment generate gem color.
Compositional boundaries
Analyses determine when substitution remains within sugilite and when site dominance supports recognition of a related species such as aluminosugilite.
Metasomatic mineralization
The Wessels occurrence records fluid-controlled replacement of manganese-rich sedimentary rocks under hydrous metamorphic conditions.
Paragenetic mapping
Contacts among sugilite, braunite, aegirine, pectolite, garnet, quartz, amphibole, and other phases help reconstruct reaction fronts and fluid pathways.
Gem-rock heterogeneity
Refractive-index and density studies demonstrate why a trade name can encompass both predominantly sugilite material and sugilite–chalcedony mixtures.
Analytical identification
Raman, FTIR, X-ray diffraction, electron microprobe, and optical spectroscopy distinguish mineral grains, treatments, and related species.
Lithium-bearing minerals
Sugilite contributes to understanding how lithium enters unusual silicate structures outside familiar spodumene, mica, and tourmaline groups.
Conservation science
Material analysis separates original mineral, natural vein, dye, polymer, adhesive, and composite construction while minimizing damage.
History of Discovery and Cultural Context
Sugilite is a comparatively recent addition to formal mineralogy. It was approved during the 1970s and described in 1976 from Iwagi Islet in southwestern Japan. The original material was light brownish yellow, and its identification depended on chemical analysis, X-ray diffraction, optical measurements, and structural study rather than spectacular color.
Purple material from the Wessels Mine began attracting gemological attention near the end of the 1970s. It was initially confused with the related mineral sogdianite and circulated under several trade names. Subsequent analysis established that the material was manganese-bearing sugilite, often present in a polycrystalline aggregate with other minerals.
The contrast between the Japanese type material and South African gem material is central to the mineral’s history. One established the species; the other established its public image. Later work clarified its composition, the role of Mn³⁺ and Fe³⁺ in color, the mixed nature of some fashioned material, and the complex metamorphic history of the Wessels orebody.
Because sugilite entered scientific literature only in the twentieth century, claims of an ancient worldwide sugilite tradition are not historically secure. Purple stones have long carried cultural meaning, but an old reference to an unnamed violet stone cannot automatically be assigned to sugilite.
Unrecognized grains in unusual rocks
Sugilite existed within alkaline and manganese-rich geological assemblages but had not yet been defined as a separate species.
Species recognition
The new mineral was approved and named for Japanese petrologist Ken-ichi Sugi.
Original scientific description
Brownish-yellow sugilite from Iwagi Islet was described as an essential mineral in aegirine syenite.
Purple South African material appears
Vivid material from the Wessels Mine entered the gem market and was initially associated with several trade names and uncertain identification.
Wessels material identified
Scientific work confirmed the purple material as a manganese-bearing occurrence of sugilite rather than a separate purple mineral.
Gemological characterization
Research established refractive index, density, color behavior, microscopic texture, and the presence of chalcedony in some material sold under the sugilite name.
Color mechanism refined
Spectroscopic and chemical studies linked the broad purple absorption to Mn³⁺ and narrower features to Fe³⁺.
Species boundaries and advanced analysis
Modern structural and chemical methods continue to refine site occupancy, related species, geological formation, and treatment detection.
Recent scientific name
The mineral’s secure documented history begins in the twentieth century, not in antiquity.
Older purple-stone symbolism
Historical meanings attached to amethyst, porphyry, violet glass, and unnamed purple stones should not be transferred automatically to sugilite.
Modern gemstone culture
Sugilite became prominent through lapidary work, jewelry, gemological research, mineral collecting, and the visual rarity of saturated opaque purple.
Contemporary spiritual literature
Associations with insight, protection, compassion, boundaries, or transformation are modern symbolic interpretations rather than proven ancient traditions.
Contemporary Symbolic Interpretation
Modern reflective practice often responds to sugilite’s saturated color, layered geology, dark and pale inclusions, and the contrast between its hidden atomic order and massive outward form. These readings are symbolic rather than mineralogical effects or guaranteed outcomes.
Color emerging from structure
The violet appearance can represent expression that becomes possible only when inner structure, environment, and the correct conditions align.
Complexity without loss of identity
A stone can contain dark ore, pale silica, several silicates, and still remain recognizably sugilite-bearing. The image supports reflection on identity within complexity.
Saturation and restraint
Intense color does not require visual noise. Sugilite can suggest confidence expressed through depth, continuity, and deliberate boundaries.
Translucent windows
Small areas that transmit light can symbolize selective openness rather than complete exposure.
Veins as geological record
Pale and dark lines can be read as evidence of later events, showing that interruption and repair become part of the final pattern.
Named late, formed long ago
The mineral existed before it was recognized. Its history can prompt attention to qualities that are present before language, classification, or acknowledgment catches up.
The Violet Compass
- Name one decision that has become obscured by too many competing signals.
- Write the direction that remains consistent beneath those signals.
- List one dark constraint, one pale uncertainty, and one clear source of evidence.
- Choose the next action that preserves the underlying direction.
- Review the result before adding another commitment.
The Structure-Before-Color Review
- Choose one visible outcome you are trying to intensify.
- Identify the hidden structure that supports it.
- Mark the site where substitution, overload, or missing support is occurring.
- Strengthen the structure before increasing visibility.
- Record what changed when support improved.
The Translucent Window Exercise
- Name one area in which complete openness would be unwise.
- Define the smallest safe window through which information can pass.
- State what remains protected outside that window.
- Share only what serves the stated purpose.
- Close or expand the window according to evidence.
The Mixed-Material Audit
- List the distinct elements within one project, role, or relationship.
- Separate what is central from what is supporting, decorative, inherited, or repaired.
- Name each element accurately without reducing the whole to one label.
- Identify the weakest boundary between them.
- Strengthen that boundary while preserving useful complexity.
Documentation and Responsible Description
A useful record distinguishes mineral identification, rock composition, color, treatment, fashioned form, locality, and confidence. That separation allows later analysis to refine the name without losing the evidence.
Identity
Record whether the object is confirmed sugilite, probable sugilite, manganoan sugilite, or sugilite-bearing mixed rock.
Composition
List visible or analyzed chalcedony, quartz, pectolite, aegirine, braunite, amphibole, carbonate, and other associated phases.
Appearance
Describe hue, tone, saturation, translucency, mottling, layering, black seams, pale veins, and surface finish.
Locality
Retain mine, district, region, country, host rock, geological unit, collector, and prior labels where known.
Treatment
Document dye, wax, oil, polymer impregnation, fracture filling, coating, backing, assembly, and repaired breaks.
Condition
Record scratches, chips, open fractures, weak veins, undercutting minerals, unstable settings, and areas requiring support.
| Record element | Why it matters | Example wording |
|---|---|---|
| Object name | Separates mineral from mixed rock and trade term. | “Manganoan sugilite with chalcedony and dark manganese-mineral seams.” |
| Formula | Links the object with the accepted species. | “Ideal sugilite formula KNa₂Fe³⁺₂Li₃Si₁₂O₃₀; Mn³⁺-bearing purple material.” |
| Form | Describes what is actually present. | “Fine-grained massive aggregate, layered and crosscut by pale silica-rich veins.” |
| Color | Allows comparison without relying on edited images. | “Medium-dark bluish purple in neutral light; red-violet under warm illumination.” |
| Transparency | Separates general opacity from local transmitted-light zones. | “Opaque overall with one translucent wine-purple window approximately 8 mm across.” |
| Locality | Preserves geological and historical value. | “Wessels Mine, Kalahari Manganese Field, Northern Cape, South Africa.” |
| Analytical evidence | Clarifies confidence and mixed phases. | “Raman-confirmed sugilite and chalcedony; spot RI readings approximately 1.607 and 1.544.” |
| Dimensions | Supports comparison and conservation. | “Cabochon 31.4 × 22.1 × 6.8 mm; mass 20.6 ct.” |
| Treatment | Separates natural mineral from intervention. | “No dye detected; one surface-reaching fracture locally polymer filled.” |
| Condition | Guides handling and future comparison. | “Minor edge abrasion; stable pale vein; no open cracks visible at 10×.” |
| Images | Records appearance and treatment evidence. | “Neutral-light face, reverse, edge, transmitted-light, ultraviolet, and scale views.” |
Continue Into the Specialist Sugilite Guides
The following articles examine sugilite through geological formation, mineral physics, locality, cultural history, legends, contemporary symbolic practice, literary narrative, and a focused reflective ritual.
Frequently Asked Questions
What is sugilite?
Sugilite is a potassium-sodium-lithium iron silicate in the milarite–osumilite structural family. Purple gem material commonly contains Mn³⁺ substituting within its structure.
What is the ideal formula of sugilite?
The ideal Fe³⁺-dominant formula is KNa₂Fe³⁺₂Li₃Si₁₂O₃₀. Natural material may contain substantial Mn³⁺ and Al in the Fe-bearing structural sites.
What is the IMA symbol for sugilite?
The standardized mineral symbol is Sug.
Is sugilite a cyclosilicate?
Yes. Its structure contains double six-membered silicate rings represented by the Si₁₂O₃₀ unit.
What mineral group contains sugilite?
It belongs to the milarite–osumilite structural family, also described in different references as the milarite group or osumilite group.
Why is sugilite purple?
The purple and pink colors of manganese-bearing material are principally linked to visible-light absorption by Mn³⁺. Fe³⁺ contributes additional narrower absorption features.
Does lithium create the purple color?
No. Lithium is essential to the crystal structure but is not the principal purple chromophore.
Is all sugilite purple?
No. The original Japanese type material is light brownish yellow. Natural sugilite can also be pale, pink, violet, reddish purple, or nearly colorless in thin section.
What is manganoan sugilite?
It is sugilite containing manganese in the relevant structural sites. The term is especially appropriate for the purple material from Wessels.
What is gel sugilite?
“Gel sugilite” is a trade description for translucent material with deep internal purple or wine-colored light transmission. It is not a separate mineral species.
Is gel sugilite always pure sugilite?
No. Translucency does not establish mineral proportion. Some sugilite–chalcedony mixtures can also transmit light.
What causes black lines in sugilite?
Dark lines and grains commonly belong to manganese-rich minerals, aegirine, altered ore, or other associated phases.
What causes white or gray veins?
Pale veins may consist of quartz, chalcedony, pectolite, carbonate, or other silicate minerals that formed with or after the sugilite.
What crystal system is sugilite?
Sugilite crystallizes in the hexagonal system.
Why does massive sugilite not look hexagonal?
Most gem material consists of microscopic interlocking grains. The hexagonal symmetry exists at the crystal-structure level even when no external crystal faces are visible.
Are visible sugilite crystals common?
No. Free prismatic crystals are rare and usually small. Massive and granular material is far more common.
What is sugilite’s Mohs hardness?
Approximately 5.5 to 6.5, with published values varying by specimen and measurement.
Is sugilite durable?
Compact interlocking material can be fairly tough, but its moderate hardness, brittle mineral behavior, veins, mixed phases, and treatments require care.
Does sugilite have cleavage?
It has poor or indistinct basal cleavage, commonly reported on {0001}.
What is sugilite’s density?
Predominantly sugilite material commonly measures approximately 2.74 to 2.80 g/cm³.
What is sugilite’s refractive index?
Single-crystal indices are approximately 1.590 to 1.611. Massive Wessels material commonly gives a spot or flat-facet reading near 1.607.
Why can one stone show readings near 1.607 and 1.544?
The higher reading is consistent with sugilite, while the lower reading is consistent with quartz or chalcedony. They indicate two mineral phases rather than sugilite birefringence.
Is sugilite pleochroic?
Suitable transparent single crystals can show weak pleochroism. Massive polycrystalline pieces usually do not display a useful directional color change because the grains are randomly oriented.
Does sugilite fluoresce?
Predominantly sugilite Wessels samples are often inert under longwave and shortwave ultraviolet light. Associated minerals, dyes, and resins can respond differently.
Where was sugilite discovered?
It was first described from Iwagi Islet in Ehime Prefecture, Japan.
Why is the Japanese material not purple?
The type material has different chemistry and much less of the Mn³⁺ environment responsible for saturated purple Wessels material.
Where does the finest-known purple material come from?
The Wessels Mine in South Africa’s Kalahari Manganese Field is the historically defining source of royal-purple and translucent gem material.
How did Wessels sugilite form?
It formed during hydrothermal and metamorphic alteration of manganese-rich sedimentary ore, with reactive fluids moving along fractures and compositionally suitable layers.
Did sugilite crystallize directly from magma at Wessels?
No. The Wessels material is associated with metasomatic and metamorphic replacement of pre-existing manganese-rich rocks.
What minerals occur with Wessels sugilite?
Associates can include braunite, aegirine or acmite, pectolite, quartz or chalcedony, garnet, wollastonite, amphiboles, and varied manganese silicates.
Does sugilite occur outside South Africa and Japan?
Yes. Reported occurrences include India, Canada, Italy, and Australia, though most are of greater mineralogical than gemological importance.
Is lavulite the same as sugilite?
Lavulite and Royal Lavulite are historical trade names applied to purple sugilite material, not separate mineral species.
What is Royal Azel?
Royal Azel is another historical commercial name used for purple Wessels material.
Is sugilite a type of jade?
No. Sugilite is neither jadeite nor nephrite. “Sugilite jade” is not a mineralogically correct species name.
What is sugilite with chalcedony?
It is a natural rock containing both sugilite and microcrystalline quartz. Its properties reflect both minerals and should be described accordingly.
Is chalcedony in sugilite an imitation?
No. Chalcedony can be a natural intergrown mineral. The issue is accurate labeling, not authenticity.
How is sugilite different from charoite?
Charoite commonly shows sweeping fibrous swirls and silky chatoyancy. Sugilite is usually granular, mottled, layered, veined, or massive and has different chemistry and optical properties.
How is sugilite different from amethyst?
Amethyst is quartz, usually transparent with quartz crystal form or zoning, hardness 7, and refractive index near 1.54. Sugilite is a more complex lithium-bearing silicate with higher refractive index and commonly massive texture.
How is sugilite different from lepidolite?
Lepidolite is a lithium mica with platy cleavage, micaceous sparkle, and much softer behavior. Sugilite lacks sheet cleavage and usually forms compact granular aggregates.
How is sugilite different from purple jadeite?
Jadeite is generally denser and tougher and has different refractive index, chemistry, and microscopic texture.
Can quartzite be dyed to imitate sugilite?
Yes. Dyed quartzite can reproduce granular purple color. Dye may concentrate between grains and in fractures, while refractive index remains near that of quartz.
Can magnesite or howlite imitate sugilite?
Yes. Their porosity allows strong purple dye uptake. They are much softer and often reveal concentrated color in pits, cracks, and drill holes.
Is natural sugilite commonly dyed?
Untreated natural material is common, but dye, impregnation, filling, and composite construction can occur in purple ornamental material. Disclosure or laboratory testing is appropriate when evidence is uncertain.
Can sugilite be resin stabilized?
Porous or fractured material may be impregnated or locally filled with polymer to improve stability and polish. Such treatment should be disclosed.
Can ultraviolet light prove authenticity?
No. It may reveal contrasting glue, filler, dye, or associated minerals, but natural and artificial materials can both be fluorescent or inert.
Should sugilite be scratch tested?
No. Scratch testing damages polish, may test the wrong mineral grain, and provides less reliable evidence than spectroscopy or refractometry.
Can a hot needle be used to detect resin?
It is not recommended. Heat can permanently damage the object, release fumes, and still give an ambiguous result.
Is sugilite suitable for jewelry?
Yes, especially in pendants, earrings, brooches, beads, and protected cabochon settings. Durability depends on mineral mixture, fractures, and treatment.
Can sugilite be worn in a ring?
It can be used in a ring when the stone is structurally sound and protected by a bezel or recessed setting. Daily hard impact and abrasive wear should be avoided.
Can sugilite be faceted?
Translucent material can be faceted, but suitable rough is uncommon and its moderate refractive index produces restrained brilliance.
How should sugilite be cleaned?
Use lukewarm water, mild soap, and a soft cloth or soft brush. Keep cleaning brief and avoid pressure across fractures or inlay.
Can sugilite go in an ultrasonic cleaner?
It is best avoided because vibration can open fractures, disturb filler, and loosen mixed mineral grains or settings.
Can sugilite be steam cleaned?
Steam is not recommended. Rapid heat can stress mixed material and damage dye, resin, adhesive, or backing.
Does sugilite fade in sunlight?
Natural color is generally considered stable under ordinary light. Prolonged heat and intense exposure can still affect treatments, adhesives, backing, and display materials.
Can sugilite be soaked in water?
Brief washing may be safe for stable untreated material, but prolonged soaking can affect porous matrix, filler, dye, glue, and metal settings.
How should sugilite be stored?
Store it separately in a soft compartment so harder materials such as quartz, topaz, corundum, and diamond cannot scratch the polish.
Why must sugilite be cut wet?
Water controls heat and suppresses dust. Sugilite-bearing rough may contain quartz and manganese minerals that should not be dry ground or inhaled.
What affects the assessment of sugilite?
Color, tone, translucency, mineral proportion, pattern, polish, fractures, treatment, provenance, and intended use all matter.
Is darker purple always better?
No. Very dark material can lose visible pattern and transparency. Mineral specimens and geologically complex material may be important for reasons unrelated to uniform color.
Can color identify the locality?
No. Color can suggest a Wessels-type manganese-bearing occurrence but cannot prove a mine or country.
What should a sugilite label include?
Record the mineral or mixed-rock identity, color, form, associated minerals, locality, dimensions, analytical evidence, condition, and all treatments.
What is aluminosugilite?
Aluminosugilite is a separate Al-dominant mineral species with ideal formula KNa₂Al₂Li₃Si₁₂O₃₀.
Is sugilite the same as sogdianite?
No. They are structurally related milarite-type minerals but have different site chemistry and species identity.
Does sugilite have ancient legends?
No secure ancient tradition can be assigned specifically to a mineral that was formally recognized only in the twentieth century. Most sugilite-specific spiritual meanings are modern.
What does sugilite symbolize in modern practice?
Contemporary interpretations often connect it with direction, boundaries, compassion, complex identity, selective openness, and transformation. These are symbolic readings rather than scientifically demonstrated effects.
