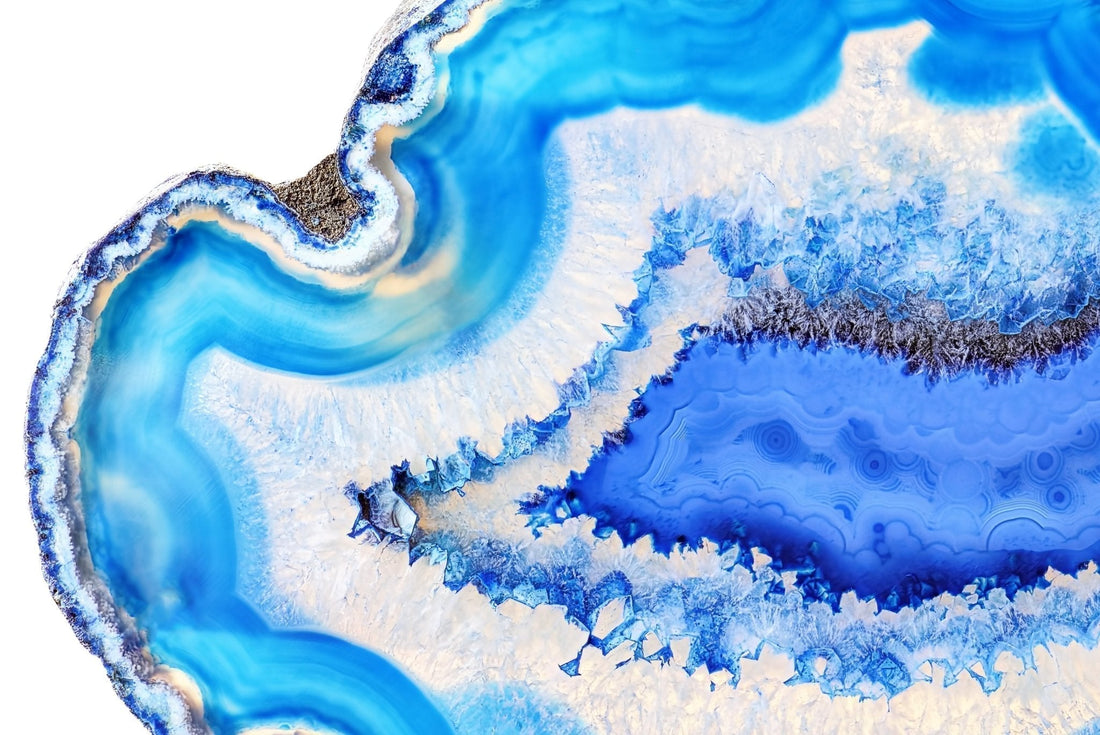

Agate: Layered Chalcedony, Rhythmic Bands, and the Geology of Filled Cavities
Agate is a patterned variety of microcrystalline silica whose bands preserve successive stages of growth inside cavities, fractures, and nodules. Its structure may form quiet parallel lines, angular fortification walls, nested eyes, floating plumes, tubular channels, moss-like inclusions, or crystalline centers. Every polished surface is a section through a three-dimensional history shaped by silica-rich fluids, changing chemistry, cavity geometry, impurities, fracture, and later alteration.
Quick Facts
Agate is a descriptive variety of microcrystalline silica characterized principally by visible banding or related patterned growth. It is commonly dominated by fibrous chalcedony and finely granular quartz, may contain moganite and accessory minerals, and frequently develops as a cavity filling rather than as a free-standing external crystal.
| Feature | Typical expression | Why it matters |
|---|---|---|
| Wall-following bands | Concentric layers echo the shape of the original cavity. | These bands create classic fortification, eye, and lace patterns. |
| Waterline layers | Nearly horizontal bands cross the cavity independently of its walls. | They record gravity-controlled deposition from standing or repeatedly replenished fluid. |
| Translucency | Thin pale bands transmit light while pigmented bands remain darker. | Backlighting reveals depth, treatment, internal fractures, and otherwise hidden structure. |
| Color zoning | White, gray, blue, brown, red, orange, green, black, and violet occur in natural or treated material. | Color source and treatment status must be considered separately from pattern quality. |
| Central cavity | Agate bands may surround quartz, amethyst, calcite, zeolites, or an open hollow. | The center commonly records a later growth stage than the wall-lining chalcedony. |
| Cut dependence | The same nodule can yield eyes, stripes, loops, plumes, or quiet fields in adjacent slices. | The visible composition is a two-dimensional section through a three-dimensional structure. |
Identity, Naming, and the Boundaries Between Agate, Chalcedony, Jasper, and Onyx
Agate is not a separate mineral species from quartz. It is a variety name applied to patterned microcrystalline silica, especially material with visible rhythmic banding. Its silica crystallites are too small to distinguish individually without microscopy, so agate behaves as a compact aggregate rather than as one large crystal.
Chalcedony is the broader microcrystalline silica category. It commonly consists of fibrous chalcedony intergrown with finely granular quartz and may contain moganite. Agate is usually understood as banded or structurally patterned chalcedony.
Jasper occupies the more opaque, inclusion-rich part of the microcrystalline quartz spectrum. Jasper commonly derives its color from iron oxides, clay, volcanic material, or other fine inclusions. Transitional material may be described as jasper-agate when translucent agate bands and opaque jasper fields occur together.
Onyx is traditionally parallel-banded chalcedony, often with alternating light and dark layers. Much black onyx in circulation is treated chalcedony. Sardonyx contains contrasting sard-brown, red-brown, black, and white layers historically suited to carving.
Names such as moss agate, dendritic agate, plume agate, and scenic agate are established in lapidary use even when classic banding is weak or absent. In those materials, inclusions rather than successive wall-lining layers create the dominant image.
Agate
Patterned microcrystalline silica, most characteristically showing visible banding, eyes, tubes, waterlines, or cavity-following growth.
Chalcedony
The broader microcrystalline silica material from which agate, carnelian, chrysoprase, onyx, and several other varieties are defined.
Jasper
Opaque, inclusion-rich microcrystalline silica whose colors and patterns are often more massive, fragmental, or sedimentary than classically banded.
Onyx and Sardonyx
Parallel-banded chalcedony traditionally valued for engraved layers, cameos, intaglios, seals, and graphic ornamental work.
Internal Architecture: Rind, Bands, Tubes, Waterlines, and Crystal Centers
Agate is most clearly read from the cavity wall inward. Each structural zone preserves a different stage of fluid access, silica deposition, impurity concentration, fracture, or open-space crystallization.
- Outer rind Weathered host rock, altered cavity wall, or an early silica-rich shell separating the agate from its surrounding matrix.
- Wall-lining bands Successive chalcedony and microquartz layers that follow the shape of the cavity and commonly produce fortification patterns.
- Waterline bands Flatter layers deposited under gravity, often cutting across curved wall-following bands.
- Tubes and channels Cylindrical or branching structures associated with fluid pathways, growth obstacles, stalactitic forms, or changing deposition fronts.
- Inclusion zones Layers enriched in iron oxides, manganese oxides, chlorite, clay, rutile, or other minerals that define color and pattern.
- Crystal center Remaining open space may later grow quartz, amethyst, calcite, zeolites, or other free-standing crystals.
- Crosscutting vein A younger fracture fill that interrupts older bands and establishes a relative sequence of events.
Formation and Geological Settings
Agate commonly begins with an opening: a gas bubble in lava, a fracture, a sedimentary cavity, or a nodule with internal space. Silica-bearing fluids enter that opening repeatedly. As silica precipitates and recrystallizes, layers develop from the wall inward, sometimes leaving a hollow core for later crystals.
A cavity, fracture, or nodule develops
Volcanic vesicles, shrinkage cracks, sedimentary voids, replaced fossils, and irregular fractures provide space into which mineral-bearing water can move.
Silica becomes mobile
Groundwater or hydrothermal fluid dissolves silica from volcanic glass, silicate minerals, ash, or surrounding rock and transports it through pores and fractures.
The first chalcedony lining forms
Fine fibrous silica precipitates on the cavity wall, sealing some pathways while preserving others as tubes, pores, or entry channels.
Rhythmic layers accumulate
Changes in fluid supply, pH, temperature, impurity content, saturation, and growth texture produce alternating bands with different colors, translucency, and grain structures.
Inclusions and pigments enter
Iron, manganese, chlorite, clay, rutile, hematite, goethite, and other fine phases become trapped, coating selected growth surfaces or occupying fractures.
Open space narrows or remains
Some cavities fill completely with chalcedony. Others retain a center in which larger quartz, amethyst, calcite, or other crystals later grow.
Fracture, alteration, and rehealing continue
Later movement can crack the nodule. New silica, carbonates, oxides, or other minerals may heal the fractures and crosscut the original bands.
Weathering releases the agate
The durable silica filling may survive after its host rock decomposes, becoming a rounded nodule in soil, talus, river gravel, or coastal sediment.
| Setting | How space is created | Typical agate expression |
|---|---|---|
| Basaltic lava | Gas bubbles remain as vesicles when lava solidifies. | Rounded nodules, geodes, wall-lining bands, quartz or amethyst centers. |
| Rhyolitic volcanic rock | Cooling, devitrification, fractures, and lithophysal cavities create irregular openings. | Thundereggs, star-shaped fills, plume structures, fortification bands, and opal-agate transitions. |
| Hydrothermal fracture | Tectonic or cooling fractures admit silica-bearing fluid. | Vein agate, parallel bands, breccia cement, tubes, and repeated crosscutting fills. |
| Sedimentary nodule | Concretions, evaporite removal, fossils, or dissolution leave voids and reactive boundaries. | Geodes, replacement textures, waterlines, fossil-associated chalcedony, and irregular nodular agate. |
| Weathered volcanic terrain | Host rock decomposes around resistant silica nodules. | Loose rounded agates concentrated in soils, streams, beaches, and gravel deposits. |
Pattern Vocabulary and Geological Interpretation
Agate pattern names describe what a polished section looks like, not necessarily one exclusive formation process. Several patterns may coexist in a single nodule, and their appearance changes according to the angle and depth of the cut.
- Fortification Angular or curved nested bands echoing the cavity wall like ramparts or contour lines.
- Waterline Nearly horizontal layers produced under gravity, commonly crossing more curved wall-lining bands.
- Eye Circular or oval concentric structures created by sections through tubes, stalactites, nodules, or localized growth centers.
- Lace Fine looping, scalloped, folded, or intricately interwoven bands with ornamental movement.
- Tube Rounded, elongated, or branching channels preserved within chalcedony and often outlined by contrasting color.
- Plume Feather-like, flame-like, cloud-like, or floral inclusions suspended in translucent chalcedony.
- Moss and dendritic Branching mineral inclusions resembling vegetation, river deltas, frost, or tree silhouettes.
- Sagenitic Needle-like inclusions, commonly rutile or another acicular mineral, enclosed by chalcedony.
- Brecciated Angular fragments of older silica material recemented by younger chalcedony, quartz, or oxide-rich fill.
- Scenic Layering, inclusions, and color boundaries combine into landscape-like compositions.
- Iris Extremely fine, regular bands diffract transmitted light into spectral colors in a suitably thin slice.
- Fire Thin iron-oxide-bearing layers create iridescent flashes beneath brown chalcedony when correctly oriented and polished.
| Visible observation | Likely interpretation | Important limit |
|---|---|---|
| Bands repeat the outer boundary | Successive growth lined the original cavity wall. | Later recrystallization may sharpen or partially erase the earliest texture. |
| Flat bands cut across curved bands | Gravity-controlled deposition formed waterlines after or during wall-lining growth. | The apparent angle depends on how the specimen is oriented today. |
| A circular eye repeats through several slices | The cut is passing through a tube or elongated cylindrical growth structure. | A single slice cannot establish the complete three-dimensional form. |
| Branching black marks stop at band boundaries | Manganese- or iron-rich dendritic growth occupied selected surfaces or fractures. | Exact mineral identification requires analysis rather than color alone. |
| A pale vein cuts every earlier band | A younger fracture opened and was filled after the main agate sequence formed. | The fill may be chalcedony, quartz, calcite, or another mineral. |
| One pattern disappears in the next slice | The saw plane has moved beyond a local eye, tube, plume, or inclusion pocket. | Disappearance does not mean the pattern was superficial. |
| Rainbow colors appear only under backlight | Very fine regular bands are producing diffraction in iris agate. | Surface coatings and thin-film contamination can also create iridescence and must be excluded. |
Color, Translucency, and Optical Character
Agate’s color is rarely explained by silica alone. Trace elements, mineral inclusions, microscopic porosity, oxidation state, growth texture, thickness, and treatment all influence what the eye sees. The same band may appear pale in a thin edge and nearly black through a thick section.
- Colorless and white Low-pigment chalcedony, microquartz, porous bands, and pale fracture fills.
- Blue and blue-gray Natural pale blue chalcedony, gray-blue banding, or dyed material ranging from soft sky tones to electric cobalt.
- Gray and smoke Fine inclusions, microtexture, carbonaceous material, iron compounds, and thickness effects.
- Honey and ochre Iron oxides, hydroxides, weathering, and translucent brown-yellow chalcedony.
- Red and orange Hematite, goethite, and related iron-rich pigments within chalcedony or jasper-like bands.
- Green Chlorite, celadonite, nickel-bearing phases, other silicates, or artificial dye depending on the material.
- Black and charcoal Dense iron- or manganese-rich material, carbonaceous inclusions, thick dark bands, or chemical darkening.
- Violet and lilac Amethystine quartz zones, pale natural tint, mixed mineral coloration, or dye.
Transmitted light
Backlighting reveals band depth, hidden eyes, color concentrations, internal fractures, dendrites, and the boundary between translucent chalcedony and opaque inclusions.
Reflected light
Diffuse front lighting shows overall palette, polish quality, band contrast, coatings, scratches, and surface condition.
Raking light
A low-angle beam reveals undercut bands, resin, fracture fill, abrasion, gilded edges, and uneven polishing.
Polarized light
Thin sections and crossed polarizers expose aggregate texture, strain, fibrous growth, granular quartz, and crystallographic orientation.
| Viewing condition | What becomes visible | Interpretive value |
|---|---|---|
| Diffuse neutral light | Overall color balance, band composition, luster, surface damage, and natural-looking variation. | Best starting condition for comparing pieces without exaggerated warmth or coolness. |
| Strong backlight | Translucent bands, eyes, internal tubes, inclusions, backing, filler, and dye concentration. | Separates genuine depth from a surface-bound appearance. |
| Low raking light | Scratches, pits, coating edges, resin, uneven polish, and recessed softer bands. | Useful for condition and treatment assessment. |
| Magnification | Band continuity, granular texture, pores, bubbles, dye, fracture fill, and dendritic branching. | Clarifies whether the visible structure belongs to the stone or to a later intervention. |
| Ultraviolet light | Variable fluorescence from fillers, coatings, associated minerals, or selected natural bands. | Supplementary only; agate has no single diagnostic ultraviolet response. |
| Adjacent-slice comparison | Pattern migration, tube continuity, changing eye shape, vein relationships, and three-dimensional structure. | One of the strongest non-destructive ways to understand how the pattern occupies the rough. |
Physical and Optical Properties
Agate inherits most of its durability from quartz, but it is an aggregate with bands, pores, fractures, inclusions, and possible treatment. Its practical behavior therefore depends on more than a single hardness value.
| Property | Typical profile | Interpretation |
|---|---|---|
| Material classification | Patterned microcrystalline silica; variety of chalcedony. | A descriptive gem and lapidary category rather than a separate mineral species. |
| Chemical formula | Dominantly SiO2. | Accessory minerals and pigments may contribute significant local color or density. |
| Microstructure | Fibrous chalcedony intergrown with finely granular quartz; moganite may occur. | Explains the dense texture, fine polish, and variation between bands. |
| Crystal system | The constituent alpha-quartz is trigonal; agate itself is an aggregate without one external crystal form. | Agate commonly fills a pre-existing shape rather than developing a free quartz prism. |
| Hardness | Commonly Mohs 6.5–7. | Good scratch resistance, although weathered, porous, or filled areas may behave differently. |
| Specific gravity | Commonly approximately 2.58–2.64. | Porosity, heavy iron-rich inclusions, open cavities, and filler can shift the measured value. |
| Refractive index | Spot readings commonly fall near 1.530–1.540. | Consistent with microcrystalline quartz and lower than many common gem look-alikes. |
| Birefringence | Quartz crystallites are birefringent, but the aggregate averages many orientations. | Standard faceted-gem observations are less direct than in one large transparent quartz crystal. |
| Cleavage | No continuous aggregate cleavage. | Improves wearability, although fractures and weak band boundaries can still direct breakage. |
| Fracture | Conchoidal to uneven. | Fresh silica-rich breaks can be extremely sharp. |
| Tenacity | Brittle. | Thin slices, sharp corners, drill holes, and pre-existing cracks remain vulnerable to impact. |
| Luster | Waxy to vitreous when polished. | Natural rind, weathering, etching, coatings, and abrasion can alter the surface appearance. |
| Transparency | Translucent to opaque; selected thin bands may be nearly transparent. | Backlighting is especially valuable for revealing internal architecture. |
| Fluorescence | Usually weak, absent, or variable. | Filler, dye, coating, associated calcite, or other inclusions may fluoresce independently. |
| Heat response | Natural silica is stable under ordinary conditions, but thermal shock can extend fractures. | Dye, resin, backing, adhesive, and gilded finishes may be considerably less stable. |
| Light stability | Natural mineral colors are generally stable; some dyes fade under intense prolonged light. | Display treatment-sensitive blue, pink, purple, and green material conservatively when history is uncertain. |
Hardness is not toughness
Agate resists everyday scratching, but a thin geode rim or exposed cabochon corner can still chip from a concentrated impact.
Bands can behave differently
Porous, weathered, heavily included, or iron-rich layers may abrade and polish differently from dense pale chalcedony.
Thickness changes appearance
One band may glow pale blue at an edge, appear gray through a medium section, and become nearly black through the full nodule.
Condition matters
Open fractures, filled pits, backing, drill damage, and unstable crystal centers can influence durability more than the bulk hardness.
Under Magnification and Controlled Light
Magnification is most useful when it connects small features to the larger band system. Natural agate should read as a coherent mineral aggregate extending through depth rather than as a flat printed or painted design.
Features to examine at 10× and beyond
A loupe cannot resolve every microcrystal, but it can reveal how bands, inclusions, pores, fractures, and treatments interact with the polished surface.
- Band continuity Fine layers should curve, narrow, widen, or terminate in ways consistent with the larger three-dimensional structure.
- Microgranular texture Dense chalcedony appears extremely fine rather than composed of visible large grains.
- Fibrous boundaries Selected bands may show subtle radial or fan-like growth where chalcedony fibers developed from a wall.
- Dendritic inclusions Branching oxide patterns commonly taper, divide irregularly, and occupy selected fractures or band surfaces.
- Quartz transition Fine chalcedony may grade inward into more visibly crystalline quartz or druzy points.
- Dye concentration Artificial color may collect in fractures, pores, drill holes, band boundaries, and weathered zones.
- Resin and filler Bubbles, meniscus edges, unusual fluorescence, softened fracture outlines, or dragged polish can indicate filling.
- Coating and backing Abrasion at edges, peeling, color ending at scratches, and a separate dark layer may reveal surface or assembled treatment.
Begin in neutral reflected light
Record the dominant colors, band type, polish, fractures, backing, gilded edges, crystal center, and overall construction.
Backlight a thin edge
Follow translucent bands through depth and look for hidden eyes, internal tubes, color concentration, and filler.
Trace one band continuously
Natural bands should interact consistently with folds, veins, pores, and neighboring layers rather than crossing them arbitrarily.
Use low raking light
Inspect scratches, coating edges, recessed bands, filled fractures, surface relief, and uneven polish.
Inspect drill holes and reverse surfaces
Natural structure should continue through the object. Concentrated color, backing, or joining planes are often clearer away from the display face.
Escalate significant questions
Refractometry, Raman spectroscopy, infrared spectroscopy, microscopy, and chemical analysis can clarify identity, treatment, and inclusion mineralogy.
Varieties, Localities, and Naming Traditions
Agate names may describe pattern, color, optical effect, locality, host rock, or historical usage. Some are precise geographic identities; others are broad visual categories. A complete description pairs the familiar name with visible structure, source, and treatment information whenever known.
Brazil and Uruguay
Basaltic provinces yield large geodes, thick wall-lining agate, quartz centers, amethyst, carnelian zones, and abundant material for carving and slicing.
Mexico
Chihuahua and neighboring regions are associated with Laguna, Crazy Lace, Agua Nueva, Coyamito, coconut geodes, and many finely banded collector agates.
Botswana
Botswana Agate is known for exceptionally fine gray, cream, brown, pinkish, and occasionally warm orange banding.
Namibia and southern Africa
Pale blue lace-like chalcedony, plume material, and several locality-specific agates have entered the lapidary tradition from the region.
United States and Canada
Lake Superior, Montana, Oregon, Arizona, California, Texas, and numerous other regions produce distinctive fortification, dendritic, plume, thunderegg, and seam agates.
Germany and central Europe
Local agates and the historic cutting center of Idar-Oberstein shaped European carving, dyeing, engraving, and lapidary traditions.
| Name | Visual character | Interpretive note |
|---|---|---|
| Fortification agate | Angular or curved nested bands tracing an internal cavity. | The pattern resembles defensive walls, contour lines, or repeated maps. |
| Blue Lace Agate | Pale blue, white, and gray lace-like layers. | Natural material is generally subtle; strong uniform cobalt color should be examined for dye. |
| Botswana Agate | Exceptionally fine gray, cream, taupe, brown, and pinkish banding. | Valued for disciplined layering, understated color, and smooth transitions. |
| Laguna Agate | Fine vivid bands in red, pink, orange, yellow, cream, and white. | A celebrated Mexican locality identity; provenance is stronger than color resemblance alone. |
| Crazy Lace Agate | Looping, scalloped, folded, and highly active warm-colored bands. | Most strongly associated with Mexico and commonly cut into broad patterned cabochons. |
| Lake Superior Agate | Red, orange, white, and yellow fortification or parallel bands. | Iron-rich material associated with the Lake Superior region of the United States and Canada. |
| Montana Agate | Clear to smoky chalcedony with black, brown, or red dendritic and scenic inclusions. | Commonly linked with gravels of the Yellowstone River drainage. |
| Condor Agate | Strongly colored fortification and plume patterns from Argentina. | The locality name should be retained with reliable source documentation. |
| Moss Agate | Translucent chalcedony with green, brown, or black moss-like inclusions. | Usually weakly banded or unbanded, but the established trade name remains widely accepted. |
| Dendritic Agate | Branching black, brown, red, or green mineral patterns. | The inclusions are mineral growths, not fossil vegetation. |
| Plume Agate | Feather-, cloud-, flame-, or flower-like inclusions within chalcedony. | Orientation determines whether a plume appears complete, fragmented, or hidden. |
| Fire Agate | Brown chalcedony with internal iridescent flashes. | The color effect depends on thin iron-oxide-bearing layers and precise lapidary orientation. |
| Iris Agate | Very fine regular bands producing rainbow diffraction under transmitted light. | The effect may be invisible in ordinary reflected light. |
| Onyx and Sardonyx | Straight parallel bands with strong light-dark contrast. | Darkening treatments have a long history and should be disclosed. |
| Thunderegg | Rounded rhyolitic nodule containing agate, chalcedony, jasper, quartz, opal, or mixtures. | A thunderegg is a geological nodule type rather than one mineral species. |
History, Language, and Cultural Significance
Agate has been used for millennia because it combines a fine working texture with excellent durability. Beads, seals, amulets, bowls, cameos, intaglios, handles, inlays, and small vessels preserve the long relationship between banded chalcedony and skilled carving.
The name is traditionally connected with the ancient Achates River in Sicily, generally identified with the modern Dirillo. Greek mineral writing helped establish the name, while trade carried patterned chalcedony far beyond any single source.
Layered material was especially useful for cameos and intaglios. A carver could cut through a pale band into a darker ground, allowing figure and background to emerge from the natural stratification of the stone.
Idar-Oberstein became one of Europe’s most influential agate-cutting centers. Local deposits, water-powered workshops, imported Brazilian rough, engraving traditions, and sophisticated color treatments helped shape modern lapidary practice.
Historical descriptions do not always match modern mineral terminology. Older labels may use agate, onyx, sard, chalcedony, plasma, or jasper in overlapping ways. Preserving the original wording alongside a modern description retains both cultural and mineralogical information.
Protective and symbolic uses of agate occurred in many periods, but meanings varied by region, color, object, and historical source. Modern claims should not be projected backward as one universal ancient doctrine.
Seals and intaglios
Agate’s hardness preserved engraved lines through repeated handling, while contrasting bands enhanced carved imagery.
Cameos
Natural layers allowed figures, profiles, and ornaments to be carved in one color against another without adding pigment.
Lapidary centers
Specialized cutting communities transformed rough nodules into beads, vessels, reliefs, jewelry, scientific sections, and architectural objects.
Modern collecting
Today agate is studied as geological structure, regional identity, lapidary material, optical specimen, decorative object, and symbolic stone.
Agate is compelling not because its chemistry is rare, but because ordinary silica repeatedly records interruption, return, changing conditions, and the architecture of an opening.
Identification and Common Look-Alikes
Identification combines band continuity, microcrystalline texture, quartz-like hardness, conchoidal fracture, waxy-to-vitreous polish, density, transmitted light, and treatment assessment. Pattern alone is not diagnostic.
| Material | Why it resembles agate | Useful distinction |
|---|---|---|
| Banded calcite or aragonite | Translucent parallel bands can resemble onyx or agate. | Carbonate material is much softer, has cleavage, and is acid-sensitive; non-destructive optical testing is preferable. |
| Glass | Manufactured glass can imitate every agate color and swirl. | Round bubbles, flow lines, mold marks, lower hardness, and lack of natural band architecture support glass. |
| Resin or polymer composite | Colored fragments and molded bands can simulate slices and geodes. | Low weight, warm feel, bubbles, seams, repeated fragments, and binder indicate manufacture. |
| Common opal | Milky translucent silica may show clouds, bands, or dendritic inclusions. | Opal is generally softer, hydrated, and lacks the quartz microcrystalline structure of agate. |
| Jasper and chert | All are fine-grained silica and may occur together. | Jasper and chert are commonly more opaque and less rhythmically banded; transitional material is frequent. |
| Fluorite | Banded translucent fluorite may show purple, green, blue, and white zones. | Fluorite is much softer, has perfect octahedral cleavage, and typically shows more crystalline blockiness. |
| Rhyolite or orbicular volcanic rock | Flow banding and spherulites can resemble eyes, plumes, or lace. | Visible feldspar or volcanic matrix distinguishes the rock from microcrystalline chalcedony. |
| Dyed howlite or magnesite | Blue-dyed porous material may be sold in the same color range as blue agate. | These materials are softer, more porous, and lack agate’s internal banding and edge translucency. |
| Printed or coated stone | A natural-looking design can be transferred onto another substrate. | Pattern ending at chips, scratches, drill holes, or the reverse surface indicates a surface-bound image. |
Establish internal pattern depth
Compare the face, edge, reverse, drill holes, and backlit view to confirm that bands and inclusions continue through the stone.
Assess silica-like texture
Look for dense fine-grained material, waxy-to-vitreous polish, and conchoidal fracture rather than visible carbonate cleavage or glass flow.
Follow structural relationships
Wall bands, waterlines, veins, tubes, and inclusions should intersect in a coherent geological sequence.
Inspect color distribution
Determine whether color follows mineral bands naturally or concentrates unnaturally in cracks, pores, and surface damage.
Check construction and condition
Look for backing, coating, resin, joined halves, reconstructed geodes, filled voids, and decorative metallic edges.
Separate identity from origin
Mineral properties may establish agate, but a locality such as Laguna, Botswana, Lake Superior, or Montana requires reliable provenance.
How Agate Is Evaluated
Agate has no universal grading system. Evaluation changes according to object type and variety: a Laguna cabochon, fire agate, dendritic slice, carved cameo, thunderegg, geode pair, and geological study specimen require different priorities.
Pattern composition
Complete eyes, balanced fortifications, continuous waterlines, well-positioned plumes, and readable crosscutting relationships strengthen visual coherence.
Band definition
Fine crisp bands are prized in many collector agates, although some scenic and moss varieties depend more on atmospheric inclusions than sharp lines.
Translucency
Clear host chalcedony can give depth to eyes, dendrites, tubes, plumes, and internal color transitions.
Color relationship
Successful pieces balance hue, contrast, natural variation, and pattern without allowing treatment to obscure the underlying structure.
Cut orientation
The best cut preserves a complete structure, follows optical effects, and avoids placing weak seams at exposed edges.
Surface quality
A level polish should reveal depth without scratches, severe undercutting, dragged filler, cloudy residue, or distorted outlines.
Structural integrity
Open cracks, unstable druzy, thin rims, weathered bands, weak drill holes, and repaired contacts affect durability.
Provenance and disclosure
Reliable locality, treatment, repair, cutting history, and analytical records preserve geological and cultural context.
| Object type | Features to prioritize | Points to inspect |
|---|---|---|
| Cabochon | Pattern placement, dome symmetry, translucency, polish, and stable girdle. | Open fractures, dye concentration, backing, excessive undercutting, and thin corners. |
| Polished slice | Complete nodule architecture, readable band sequence, level cut, and balanced edge. | Warping, resin, unstable rind, paint, gilding, and concealed repairs. |
| Matched geode halves | Bookmatched banding, stable crystal cavity, clean sawing, and natural correspondence. | Artificial joining, reconstructed edges, loose crystals, filler, and dyed interiors. |
| Fire Agate | Brightness, color range, movement, depth, and preservation of the fire-bearing layer. | Overcut dead areas, surface scratches, exposed iron layers, and unstable pockets. |
| Dendritic or Moss Agate | Depth, scene composition, inclusion contrast, clear host, and complete branching. | Painted imagery, dye, distracting fractures, cloudy filler, and weak edges. |
| Cameo or intaglio | Layer use, carving precision, subject clarity, surface preservation, and historical context. | Recutting, restoration, replacement backing, modern coating, and unsupported age claims. |
| Geological specimen | Natural rind, host relationship, several growth stages, locality, and minimal alteration. | Heavy polishing that removes context, false labels, glued matrix, and undocumented reconstruction. |
Color Treatment, Filling, Coating, and Manufactured Imitations
Agate has been altered for color and contrast for a long time because selected bands differ in porosity and can accept treatment unevenly. The underlying stone may remain genuine agate, but the intervention changes its interpretation, stability, and care requirements.
| Intervention | What it changes | Possible observations |
|---|---|---|
| Dyeing | Adds or intensifies blue, green, pink, purple, red, black, or other colors. | Color concentrated in porous bands, fractures, drill holes, rind margins, and surface-reaching pits. |
| Chemical darkening | Strengthens dark bands, especially in onyx-type material. | Very strong black-white contrast, selective darkening of porous layers, and a treatment history associated with carved material. |
| Heating | Modifies selected iron-bearing colors and may intensify warm tones. | Altered red, orange, brown, or yellow appearance; visual proof may be difficult without history or analysis. |
| Resin impregnation | Stabilizes porous, fractured, or brecciated material. | Filled pores, bubbles, meniscus edges, unusual fluorescence, and a more uniform surface gloss. |
| Fracture filling | Reduces the visibility of cracks and improves apparent stability. | Flash effects, softened fracture edges, filler reaching the polish, or trapped bubbles. |
| Surface coating | Adds color, metallic sheen, iridescence, or gloss. | Peeling, worn high points, interference color, or a film crossing unlike natural bands. |
| Backing | Darkens translucent material or supports a thin slice. | A separate layer visible at the edge, reverse, drill hole, or damaged area. |
| Gilded edge | Adds a decorative metallic rim to a slice or coaster. | Paint, leaf, or foil limited to the cut edge; care must account for the finish. |
| Reconstructed geode | Combines fragments, crystals, resin, or color into an assembled cavity. | Joining planes, excess adhesive, repeated crystal fragments, molded surfaces, and mismatched rind continuity. |
| Glass or resin imitation | Replicates agate banding without natural chalcedony. | Round bubbles, flow lines, mold seams, low weight, soft surface, or mechanically repeated patterns. |
Natural structure remains central
Treatment does not erase the geological banding of genuine agate, but it can obscure the original palette and alter how the object should be described.
Visual clues are not universal
Some treated stones look subtle, while some natural stones are vividly colored. Microscopy, spectroscopy, and provenance may be needed.
Care changes after treatment
Dye, resin, coating, backing, adhesive, and metallic finishes may be sensitive to solvents, heat, prolonged water, and intense light.
Disclosure preserves context
Record natural or treated color, filling, coating, backing, assembly, repair, and locality as separate pieces of information.
Cutting, Polishing, Jewelry, and Decorative Use
Agate rewards orientation. The cutter chooses not merely a shape but a section through nested bands, tubes, plumes, eyes, waterlines, fractures, and crystal centers. Successful work reveals structure while retaining enough material for strength.
Cabochons
Ovals, freeforms, shields, and geometric shapes can frame eyes, fortifications, plumes, or scenic inclusions. Moderate domes preserve depth without unnecessarily darkening the center.
Slices and panels
Flat cuts reveal complete nodule architecture and are ideal for backlighting, bookmatching, scientific comparison, and interior objects.
Beads
Rotating beads reveal changing band geometry around the full object. Drill paths should avoid open fractures and weak crystal-lined cavities.
Cameos and intaglios
Parallel contrasting layers allow the carved subject and background to occupy different natural colors.
Fire Agate
The cutter follows the iridescent layer closely, removing overlying chalcedony without cutting through the optical surface.
Geodes and thundereggs
Sawn halves, polished windows, and natural-rind specimens preserve the relationship between the exterior host and internal mineral sequence.
| Rough feature | Useful approach | Likely result |
|---|---|---|
| Complete fortification center | Orient the face perpendicular to the center of the nested bands. | A balanced map-like pattern with a clear focal point. |
| Elongated eye or tube | Compare crosscuts and longitudinal cuts before committing to the final plane. | Either circular eyes or a continuous tubular structure. |
| Waterline sequence | Preserve the original horizontal relationship or use it deliberately as a compositional axis. | Calm parallel layering with a clear sense of gravity. |
| Plume or dendritic inclusion | Keep translucent host around the inclusion and avoid cutting through its most complete branches. | Greater depth and a more readable scenic composition. |
| Druzy cavity | Retain adequate backing and protect fragile crystal edges during grinding and setting. | Contrast between smooth agate and a sparkling center. |
| Brecciated or fractured rough | Map all seams, retain thickness, and stabilize only with clear disclosure when genuinely necessary. | Reduced breakage and more stable finished work. |
| Iris Agate | Prepare a sufficiently thin, parallel slice and preserve fine regular bands. | Transmitted-light diffraction colors. |
| Fire Agate | Work gradually under frequent wet inspection and follow the fire-bearing contour. | Maximum iridescent coverage without cutting through the effect. |
Care, Cleaning, Handling, and Storage
Sound untreated agate is durable in ordinary use. Thin slices, open crystal cavities, fractures, dye, filler, backing, gilded rims, and glued assemblies require more conservative care.
Routine cleaning
Use lukewarm water, mild neutral soap, and a soft cloth or brush. Rinse briefly and dry around drill holes, settings, fractures, and backing.
Ultrasonic cleaning
Avoid when the piece is fractured, dyed, filled, coated, backed, gilded, glued, or contains a delicate druzy cavity.
Steam and concentrated heat
Avoid steam cleaners, direct flame, hot repair tools, and rapid thermal change. Heat may extend cracks or disturb treatment.
Water exposure
Brief washing is suitable for solid untreated material. Avoid prolonged soaking of assembled, dyed, backed, or gilded objects.
Impact
Protect thin slices, sharp corners, drill holes, geode rims, exposed druzy, and fractures despite the stone’s good scratch resistance.
Storage
Store separately in a padded compartment. Agate can scratch softer materials and may itself be scratched by topaz, corundum, diamond, or abrasive grit.
| Risk | Possible effect | Preventive approach |
|---|---|---|
| Sharp impact | Chipped edges, split beads, broken geode rims, and fracture extension. | Use protective settings, padded storage, and secure supports for display pieces. |
| Thermal shock | New cracks, movement of filler, adhesive failure, and coating damage. | Avoid rapid changes between hot and cold environments. |
| Prolonged intense light | Fading or shifting of some dyed colors. | Use moderate display lighting for treatment-sensitive or undocumented material. |
| Strong solvent | Damage to dye, resin, backing, gilding, coating, and adhesive. | Use mild soap unless every component is known. |
| Abrasive dust | Fine scratches and reduced polish. | Remove loose grit before wiping and store away from harder objects. |
| Ultrasonic vibration | Movement of filler, widening of cracks, loss of druzy crystals, and separation of joined parts. | Choose hand cleaning whenever construction or condition is uncertain. |
| Prolonged soaking | Water entering backing, adhesive, porous dye-bearing bands, and filled fractures. | Wash briefly and dry promptly. |
Contemporary Symbolic and Reflective Meaning
Modern interpretations of agate arise naturally from its layered growth, enclosed centers, patient repetition, protective rind, and ability to hold several colors and structures within one coherent object. These meanings are interpretive rather than universal mineral properties.
Steady accumulation
Repeated bands offer an image of progress built through modest, consistent actions rather than one dramatic effort.
Protective boundaries
The rind and wall-lining layers suggest boundaries that preserve an interior without requiring complete isolation.
Composed communication
Pale blue lace-like agates are commonly used as visual prompts for measured speech, listening, and careful wording.
Growth and branching
Moss and dendritic patterns support contemporary themes of roots, networks, ecosystems, patience, and long-term cultivation.
Centered perspective
Eye and fortification agates invite attention to what belongs at the center and which layers support or obscure it.
Integration
Agate can hold walls, waterlines, fractures, repairs, inclusions, and crystals in one structure, offering a metaphor for complexity becoming coherent.
| Companion material | Combined symbolic theme | Practical reflection |
|---|---|---|
| Clear quartz | Layered experience joined with one explicit intention. | Name the central objective before responding to every surrounding detail. |
| Smoky quartz | Patterned patience supported by grounded perspective. | Separate stable facts from assumptions and immediate emotional pressure. |
| Hematite | Reflection translated into structure and follow-through. | Convert one conclusion into a boundary, schedule, or visible action. |
| Rose quartz | Patience and kindness supported by layered limits. | State what care can be offered and what cannot be carried. |
| Carnelian | Steadiness joined with constructive momentum. | Choose one action that advances the work without abandoning the sequence. |
| Amethyst | Quiet reflection held within a clear structure. | Set a defined end point for contemplation and decide what happens next. |
Reflective Practices
These exercises use agate’s bands, eyes, waterlines, rinds, and crosscutting veins as structures for observation and practical decision-making.
Band-by-Band Progress
- Select three visible bands.
- Assign the outer band to what is already complete.
- Assign the middle band to the present stage.
- Assign the inner band to the next necessary development.
- Complete one action belonging only to the present stage.
The Center and Its Walls
- Choose an eye or fortification pattern with a clear center.
- Name the one value, task, or relationship that belongs at the center.
- List the boundaries that protect it.
- Identify one layer that has become excessive or obstructive.
- Revise that layer without abandoning the center.
Waterline Review
- Find a sequence of relatively horizontal bands.
- Write what was true before the first visible change.
- Mark the point where circumstances shifted.
- Separate what accumulated gradually from what changed abruptly.
- Choose the layer that can be influenced now.
Crosscutting Chronology
- Locate a vein crossing older bands.
- Name one present situation containing several historical layers.
- List what existed first, what disrupted it, and what was added later.
- Separate the original issue from the newest active layer.
- Direct one practical action toward the layer that remains changeable.
Continue Into the Specialist Agate Guides
Agate can be explored through microstructure, optical effects, geological formation, locality, evaluation, history, folklore, narrative, and reflective practice. These focused articles continue each subject in greater depth.
Frequently Asked Questions
What is agate?
Agate is patterned microcrystalline silica, usually a banded variety of chalcedony composed mainly of fibrous chalcedony and finely granular quartz.
Is agate a separate mineral species?
No. It is a descriptive variety within the quartz and chalcedony family rather than a separate species.
What is the chemical formula of agate?
Its dominant formula is SiO2. Accessory minerals and pigments may contribute color and local physical variation.
Is agate the same as chalcedony?
Chalcedony is the broader microcrystalline silica category. Agate usually refers to chalcedony with visible banding or related patterned growth.
What is the difference between agate and jasper?
Agate is commonly more translucent and rhythmically banded. Jasper is generally more opaque and inclusion-rich. Transitional jasper-agate material is common.
Is onyx a type of agate?
Onyx is parallel-banded chalcedony and belongs to the same broad material family. Much black onyx has been treated to strengthen its dark color.
Why does agate form bands?
Repeated silica deposition, changes in fluid chemistry, impurities, growth texture, porosity, crystallization, and later recrystallization produce contrasting layers.
What are waterline bands?
Waterlines are relatively flat layers deposited under gravity within a cavity, often crossing more curved wall-following bands.
What creates eye patterns?
Eyes may be sections through tubes, stalactitic structures, localized growth centers, or nested layers around a small core.
Is moss agate a true agate?
Moss Agate is an established trade name for inclusion-rich chalcedony. It often lacks classic banding, and its moss-like appearance comes from mineral inclusions rather than plants.
What is dendritic agate?
Dendritic Agate contains branching mineral inclusions, commonly manganese- or iron-rich, resembling trees, ferns, frost, or river deltas.
What is Fire Agate?
Fire Agate is brown chalcedony containing thin iron-oxide-bearing layers that produce internal iridescent flashes when correctly oriented and polished.
What is Iris Agate?
Iris Agate has extremely fine regular bands capable of diffracting transmitted light into spectral colors in a thin slice.
What is a thunderegg?
A thunderegg is a rounded rhyolitic nodule that may contain agate, chalcedony, jasper, quartz, opal, or combinations of these materials.
Is every geode an agate geode?
No. A geode is a hollow mineral-lined cavity. Some have agate shells, while others are lined mainly by quartz, calcite, celestine, fluorite, or other minerals.
Is blue agate natural?
Natural blue and blue-gray agate occurs, particularly in pale lace-like and gray-blue material. Extremely uniform electric blue is frequently dyed but is not proof by color alone.
How can dyed agate be recognized?
Dye may concentrate in cracks, pores, drill holes, rind margins, or more porous bands. Some treatments remain subtle and may require laboratory examination.
Is dyed agate still real agate?
The underlying material may be genuine agate even when its color is artificial. Treatment should be recorded because it changes interpretation and care.
How hard is agate?
Agate is commonly approximately 6.5–7 on the Mohs scale.
Does agate have cleavage?
It has no continuous aggregate cleavage, although fractures, pores, and weak band boundaries can influence breakage.
Can agate go in water?
Brief washing is suitable for sound untreated material. Avoid prolonged soaking when dye, backing, filler, gilding, adhesive, or open fractures are present.
Can agate be cleaned ultrasonically?
Hand cleaning is safer for fractured, dyed, filled, coated, backed, gilded, assembled, or druzy-bearing pieces.
Can agate be steam cleaned?
Steam is best avoided when treatment, fracture condition, backing, adhesive, or filler is uncertain.
Does agate fade in sunlight?
Natural mineral colors are generally stable in ordinary display conditions. Some dyes can fade under prolonged intense light.
Is agate suitable for rings?
Sound agate is suitable for many rings. Low profiles, protected corners, adequate girdles, and secure settings improve durability.
Where is agate found?
Agate occurs worldwide, including major sources and collecting regions in Brazil, Uruguay, Mexico, Botswana, Namibia, the United States, Canada, Argentina, Madagascar, India, Germany, and many other countries.
Can appearance prove locality?
No. Pattern and color may suggest a region, but reliable locality requires documentation or strong geological context.
Why does a thin agate slice glow?
Light passes through less material and is scattered by the microcrystalline structure, allowing translucent bands and inclusions to become visible.
Are agate patterns fossils?
Most bands, eyes, plumes, moss-like forms, and dendrites are mineral structures rather than biological fossils. Fossil-associated agate and silicified organisms do occur in specific settings.
Is agate safe to handle?
Finished agate is suitable for ordinary handling. Cutting, drilling, grinding, and sanding must control crystalline-silica dust.
What does agate symbolize today?
Contemporary interpretations commonly emphasize steadiness, layered growth, boundaries, patience, protection, communication, and integration.
What information should remain with an agate specimen?
Retain the material name, locality, collector or supplier, acquisition date, host rock, pattern type, treatment, repair, dimensions, cutting history, and analytical documentation.
Final Reflection
Agate turns an opening into a record. A gas bubble, fracture, hollow nodule, or dissolved space becomes a chamber in which silica repeatedly arrives, pauses, changes, and returns.
The resulting bands are not merely decoration. They preserve walls and waterlines, shifts in chemistry, pathways of fluid, trapped minerals, fracture, repair, and the final transition from microcrystalline chalcedony to open crystal growth.
Use the navigation buttons above to revisit any section or continue into the specialist guides for a deeper study of agate structure, formation, locality, history, treatment, and symbolic interpretation.
